Introduction
Introduction
1.
The S5U13C00M00C100 is an adapter printed circuit board (PCB) for connecting the S5U13C00P00Cx00
Customer Development Board (which is a Boosterpack board for TI Tiva C Series EK-TM4C1294XL Launchpad
board) to an ST Nucleo-144 board such as the NUCLEO-F746ZG.
The PCB is unpopulated and the user is expected to provide and solder headers needed to connect the
S5U13C00P00Cx00 board to the Nucleo-144 board. The J4, J5, J6, and J7 connectors on the top side of the PCB
are intended to connect to the bottom side of the S5U13C00P00Cx00 board. The CN8, CN9, CN10, and CN11
connectors on the bottom side of the PCB are intended to connect to the top side of the Nucleo-144 board.

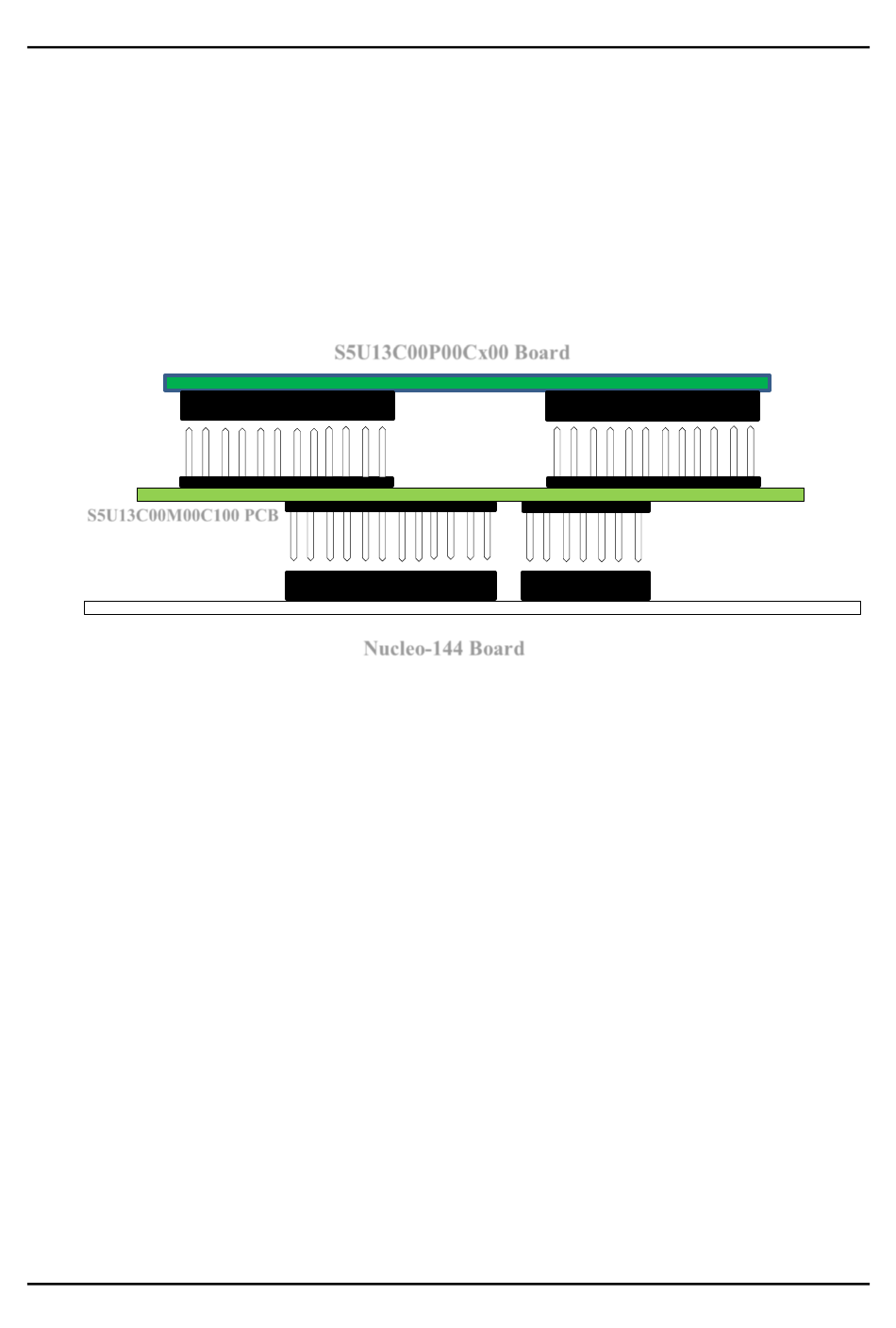

Figure
1 shows the board stack connection.
S5U13C00P00Cx00 Board
S5U13C00M00C100 PCB
Nucleo-144 Board
Figure 1 – Board Stack Connection
2
Seiko Epson Corporation
Adapter Board User Manual
(Rev. 1.0)
