Chapter 1 Introduction; Outline Of S5U1C88000P; Components Of S5U1C88000P; External View Of S5U1C88000P - Epson S5U1C88000P Manual

Cmos 8-bit single chip microcomputer (s1c88 family peripheral circuit board)

1 I

CHAPTER

The S5U1C88000P provides on a board all the peripheral circuits of S1C88 Family microcomputers other

than the core CPU. By installing this board in the ICE (S5U1C88000H5) you can use it to emulate each

model in the S1C88 Family. This board contains a programmable gate array (FPGA) and supports each

model by downloading the circuit data from the host PC to the FPGA via the ICE.

After unpacking your S5U1C88000P package, check to see that all of the following components are

included.

(1) S5U1C88000P main unit .............................................................................................. 1 board

(2) I/O cable (80-pin/40-pin × 2 flat type) .................................................................... 2 pairs

(3) Connector for connecting to target system (40-pin) ............................................... 4 pieces

(4) Warranty card ............................................................................................................... 1 card

(5) User registration card .................................................................................................. 1 card

(6) Precautions on using the S5U1C88000P Peripheral Circuit Board ...................... 1 sheet

(7) S5U1C88000P Manual (S1C88 Family Peripheral Circuit Board) ........................ 1 copy

SW1

S5U1C88000P MANUAL

(S1C88 FAMILY PERIPHERAL CIRCUIT BOARD)

NTRODUCTION

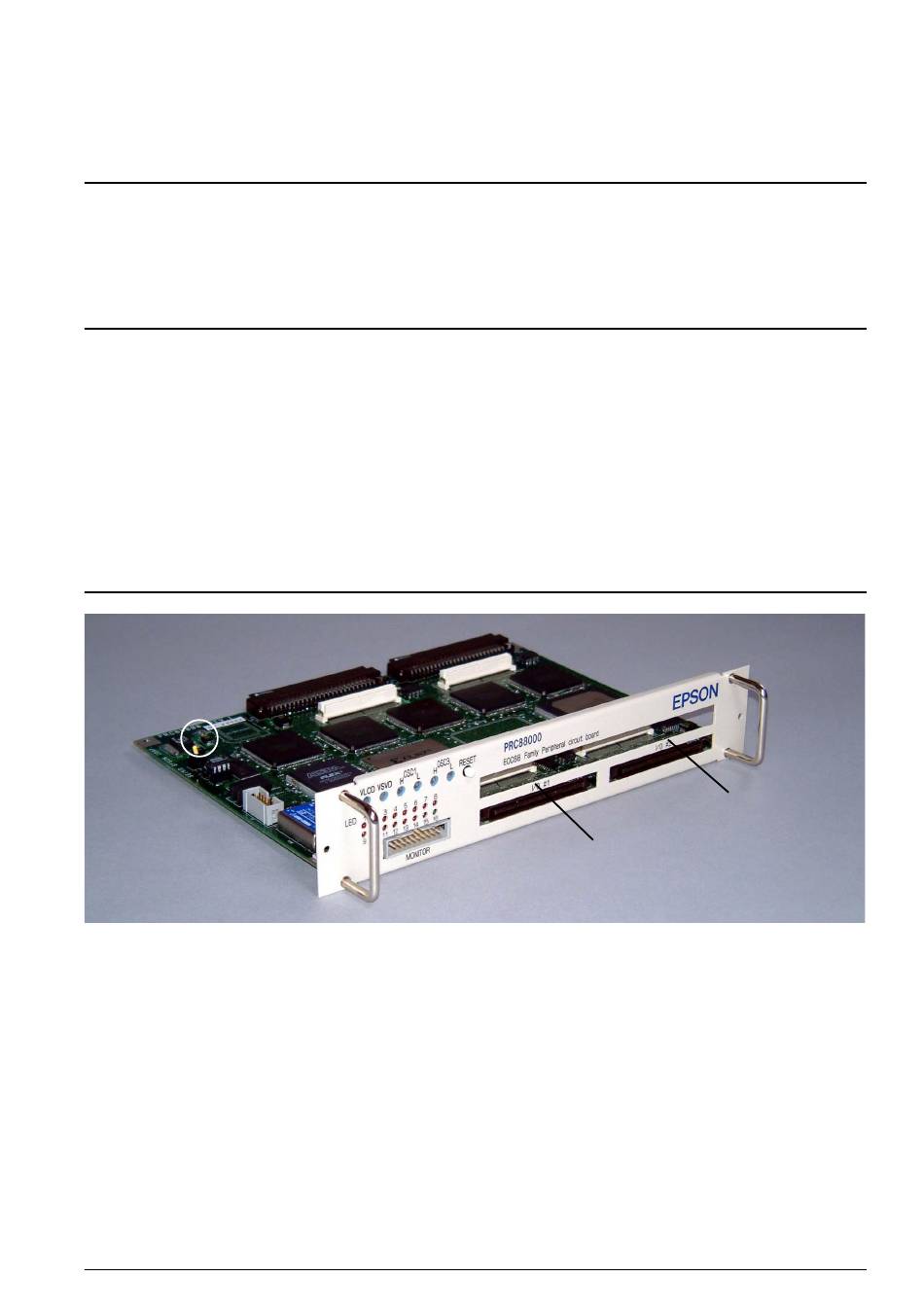

Fig. 1.3.1 External view of S5U1C88000P

EPSON

CHAPTER 1: INTRODUCTION

I/O #2 connector

I/O #1 connector
