2.3

Assembly

Before assembly, take a close look at the individual assembly steps shown and carry out the assembly
in the order given.
NOTICE
L
First loosely screw all parts together and check that they fit properly. Tighten the screws using
the tool only when you are instructed to do so.

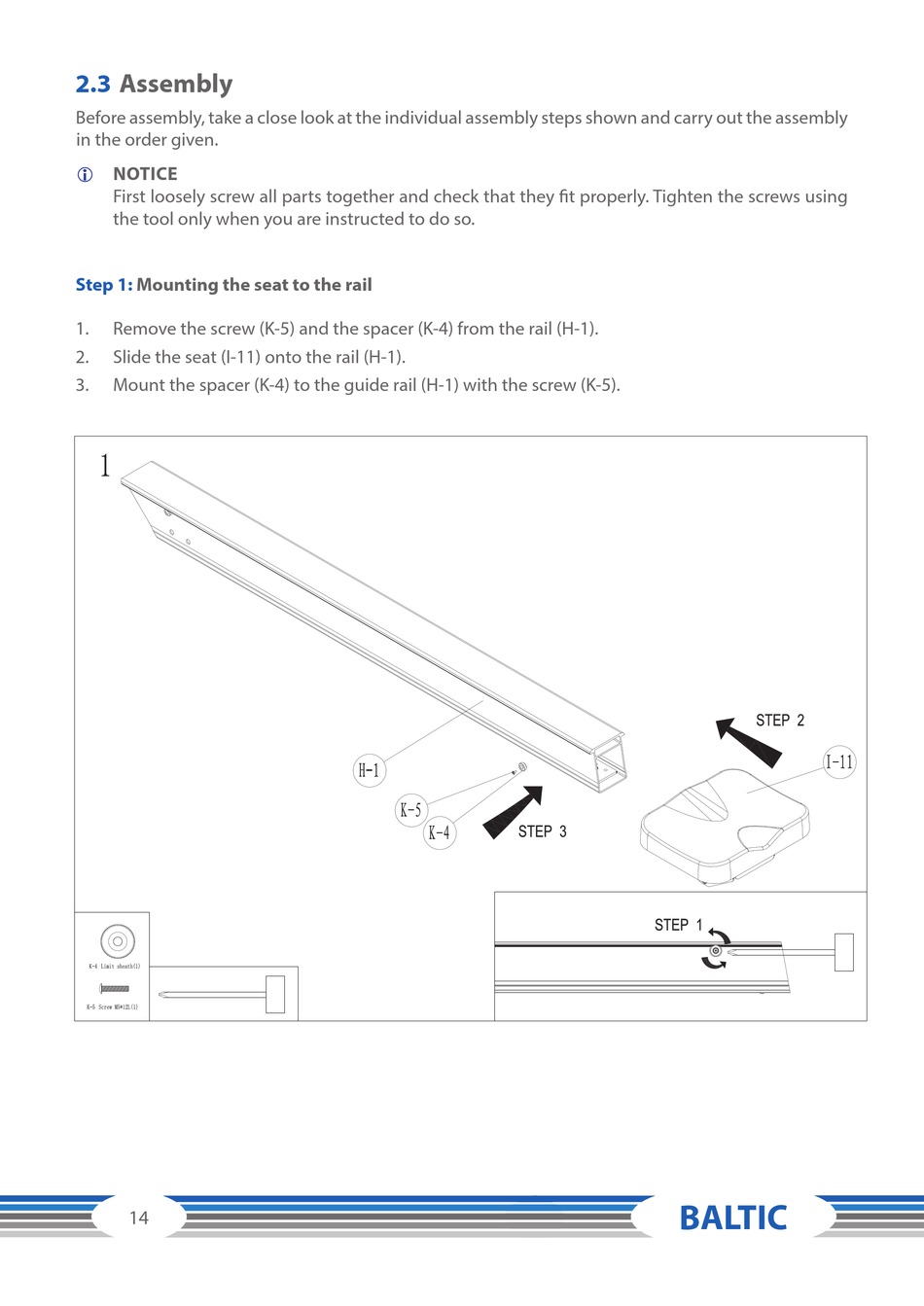

Step 1: Mounting the seat to the rail
1. Remove the screw (K-5) and the spacer (K-4) from the rail (H-1).
2. Slide the seat (I-11) onto the rail (H-1).
3. Mount the spacer (K-4) to the guide rail (H-1) with the screw (K-5).
