Gree U-MATCH GUHD09NK3CO Service Manual page 260

A/A DC INVERTER U-MATCH AIR CONDITIONERS
Model:GTH42K3CI

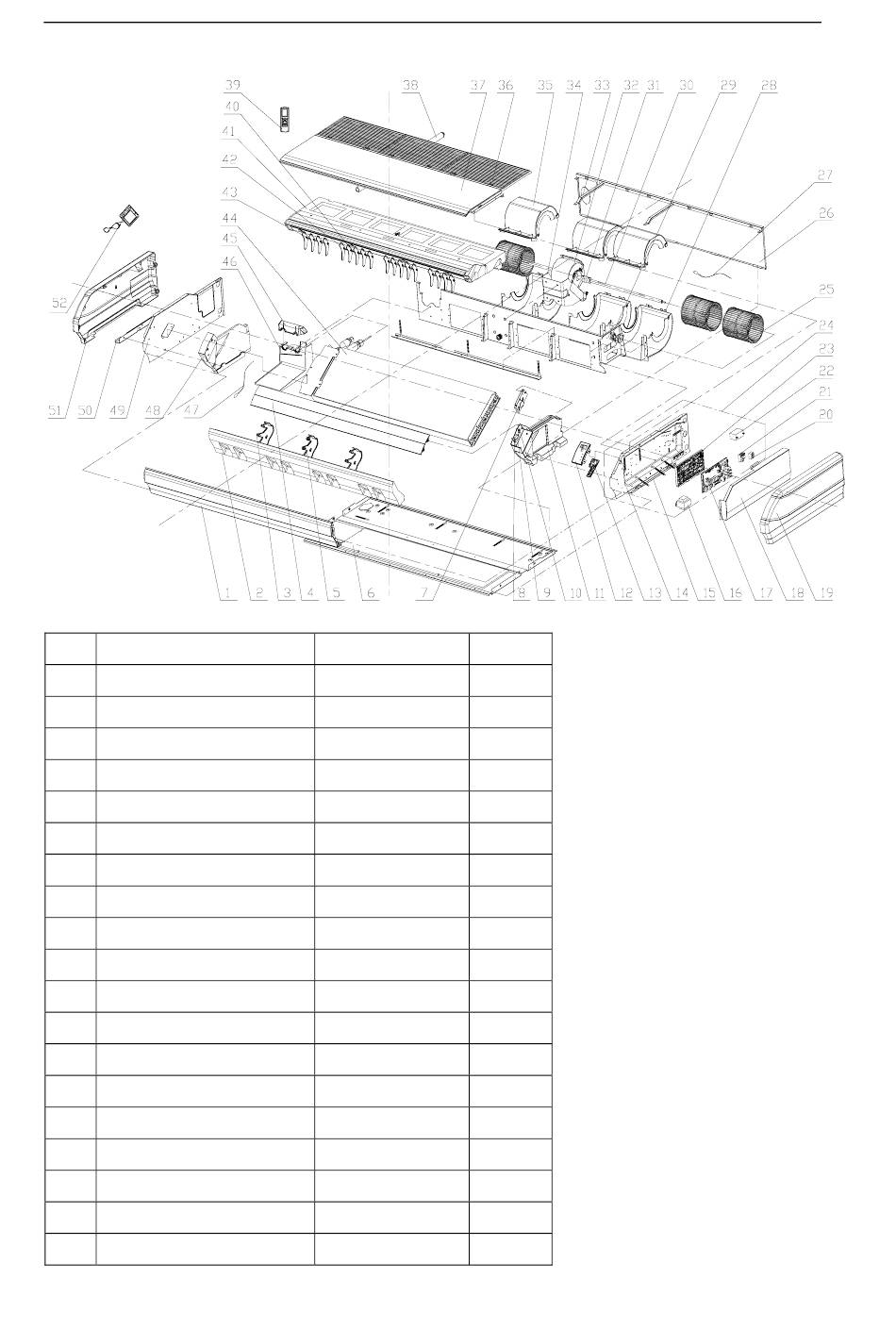

Exploded View
Spare Parts List
NO. Name of Part
1 Front panel
2 Front foam assy
3 Rotating Shaft
4 Guide Louver
5 Bracket #3(Guide Louver)
6 Rear side plate assy
7 Step Motor
8 Rotating Shaft
9 Connecting Rod
10 Rotating Shaft
11 Left foam assy
12 Display Board Sub-Assy
13 Display Board
14 Left Side Plate Sub-Assy
15 Left Pensile Bracket
16 Transformer
17 Main Board
18 Electric Box Cover
19 Left Cover
Part Code Qty
'01349408P 1
'12509424 1
'26909430 6
'26909432 2
'26909409 3
'0131941901 1
'1521240206 1
'26909413 1
'26909411 1
'26909412 1
'12509408 1
'02229416 1
'30294224 1
'01319406 1
'01809401 1
'4311023701 1
'30224223 1
'01429410P 1
'26909416 1
