Gree U-MATCH GUHD09NK3CO Service Manual page 213

A/A DC INVERTER U-MATCH AIR CONDITIONERS
4.2.3 Floor Ceiling Type

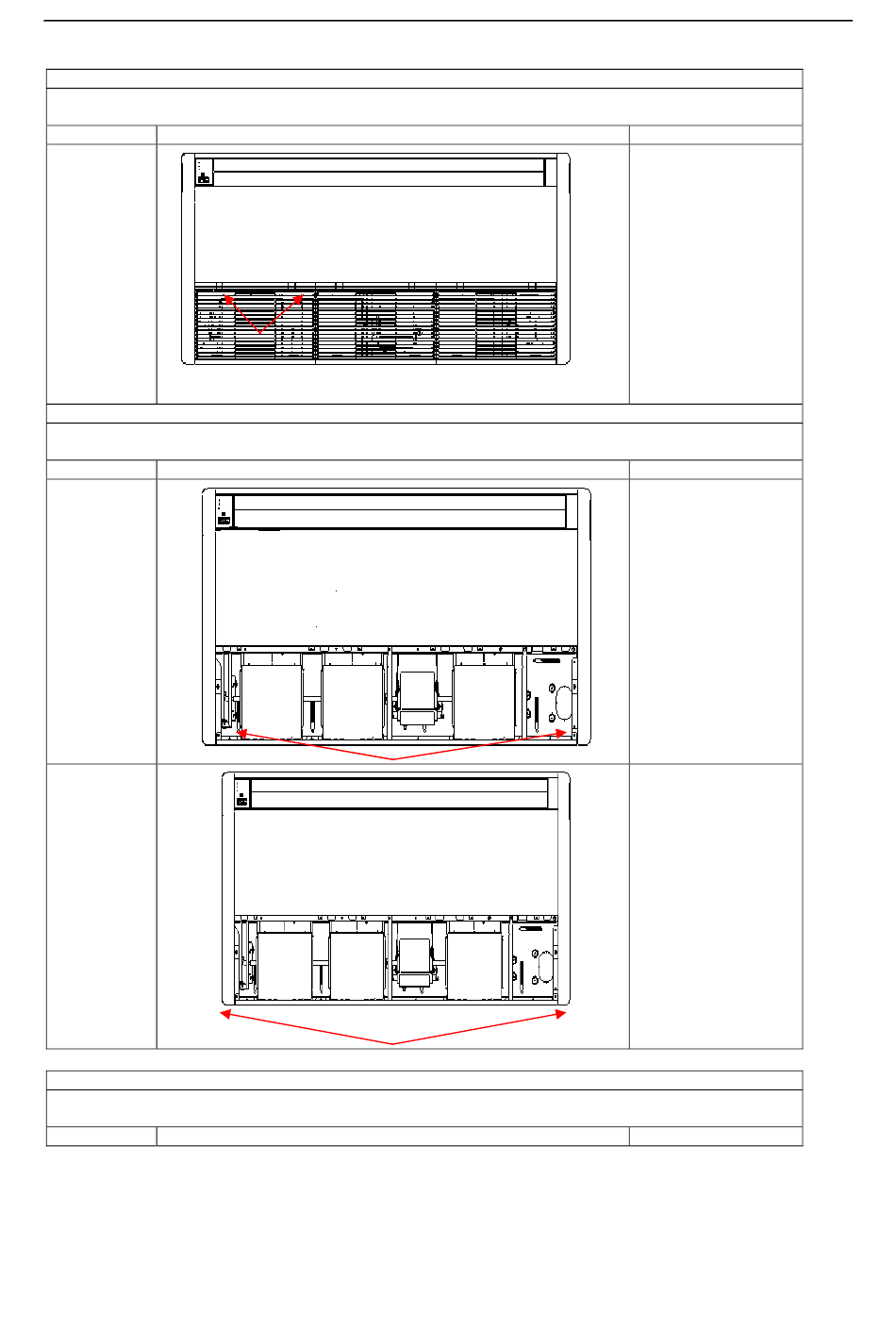

Remove panel grating module
Remark: Make sure that the power supply is cut off before disassembling and protect all the parts during
disassembly. Do not put filter screen near the high temperature heat source.
Step
Remove
sub-assy of
front grill
Remove right and left finishing plates
Remark: Make sure the power supply is cut off before disassembling and protect all the parts during
disassembly. Do not scratch the outer parts.
Step
Remove
right and left
finishing
plates
Remove
right and left
finishing
plates
Remove panel parts
Remark: Make sure the power supply is cut off before disassembling and protect all the parts during
disassembly. Do not scratch the outer parts.
Step
Illustration
Illustration
Illustration
MAINTENANCE
Handling Instruction
●Move down the clip
of the sub-assy of
fromt grill until the
front grill is open. (As
is shown in the graph,
arrow represents the
position of bottons.
There are two clips for
each grating.)
Handling Instruction
●Remove the screws
as shown in the graph
with screwdriver and
then push upward to
remove the right and
left finishing
plates.(As is shown in
the graph, arrow
represents the
position of screws.)
●Remove the screws
as shown in the graph
with screwdriver and
then push upward to
remove the right and
left finishing
plates.(As is shown in
the graph, arrow
represents the
position of screws.)
Handling Instruction
210
