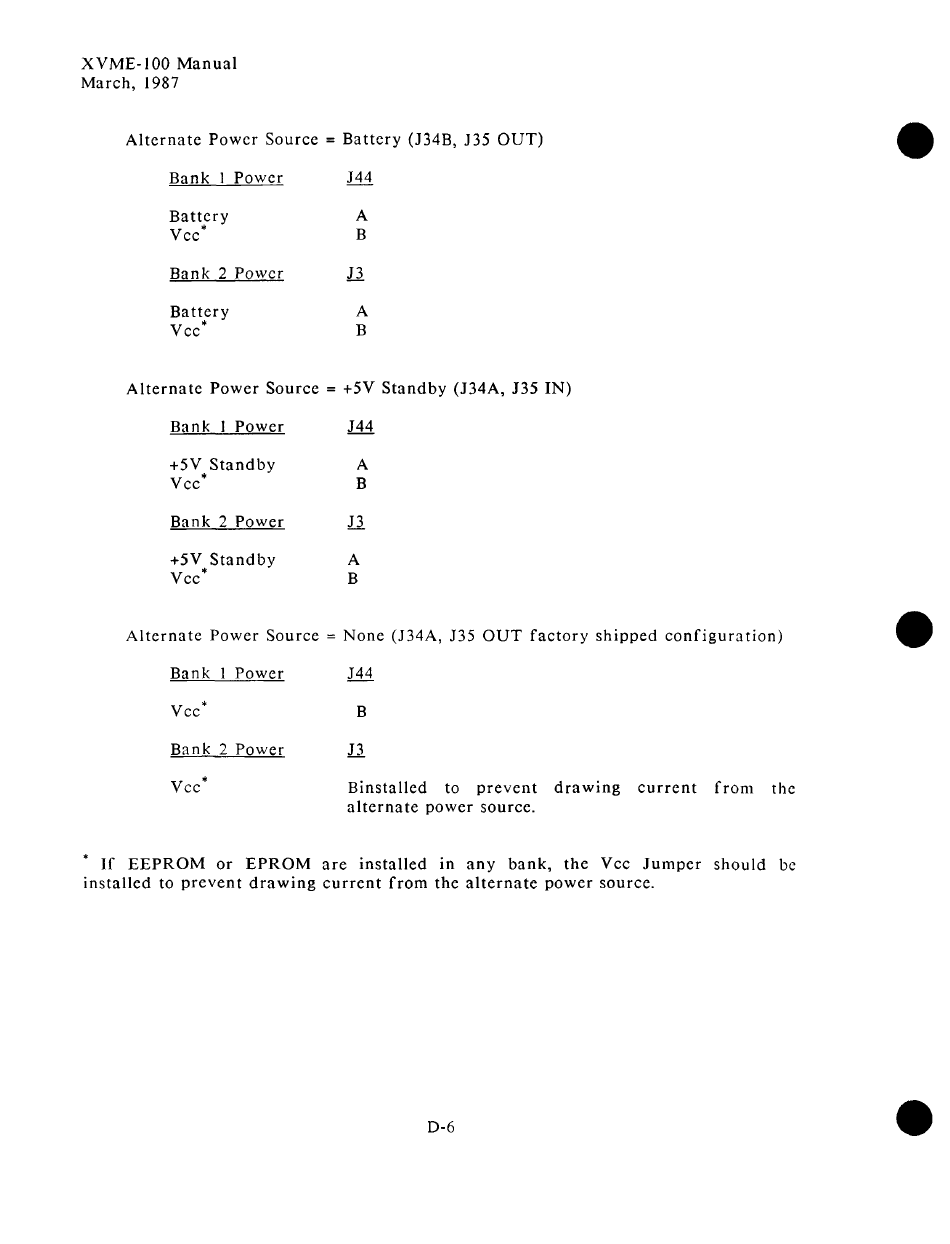

Alternate Powcr Source = Battery (J34B, J35 O U T )
Bank 1 Power
Battery
Vcc*
Bank 2 Powcr
Battery
Vcc*
Alternate Power Source = +5V Standby (J34A, J35 I N )
Bank 1 Power
+5V Standby
Vcc*
Bank 2 Power
+5V Standby
Vcc*
Alternate Power Source = None (J34A, J35 O U T factory shipped configuration)
Bank 1 Power
Vcc*
Bank 2 Power
Vcc*
* I f E E P R O M o r E P R O M a r e installed i n a n y b a n k , t h e V c c J u m p e r should b e
installed to prevent drawing current f r o m the alternate power source.
J 4 4
A
J 3
A
J 4 4
A
J 3
A
J44
B
J3
Binstalled t o p r e v e n t d r a w i n g c u r r e n t f r o m t h e
alternate power source.
