XVME-100 Manual
March, 1987
BANK 1
Jumpers
J13 I n *
J13 Out
J11 I n *
J11 O u t
J10 I n *
J10 Out
BANK 2
Jumpers
J15 I n *
J15 Out
J9 I n *
J9 Out
J12 I n *
J12 Out
* = Factory shipped configuration

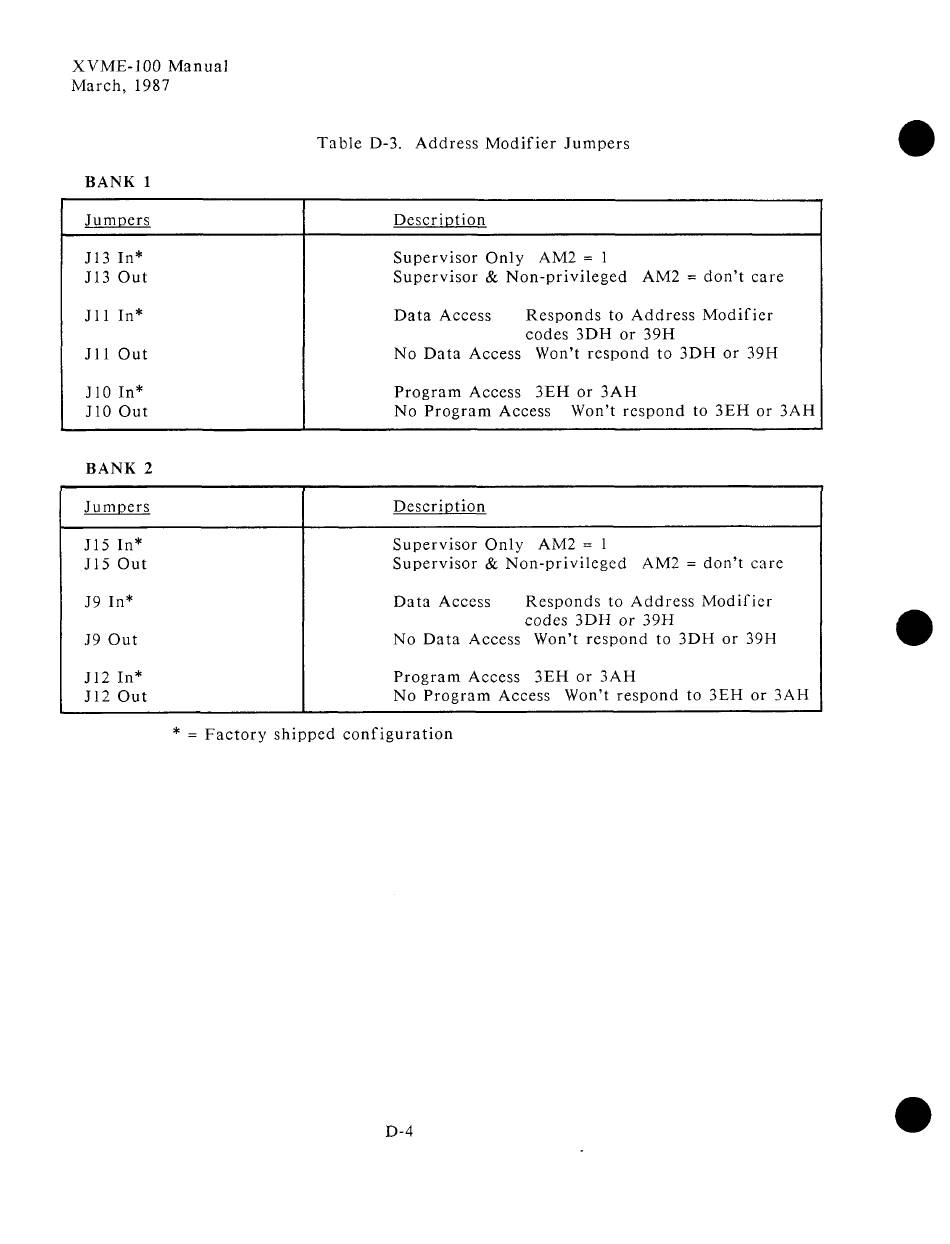

Table D-3. Address Modifier Jumpers
Description
Supervisor Only A M 2 = 1
Supervisor & Non-privileged A M 2 = don't care
Data Access R e s p o n d s to Address Modifier
No Data Access W o n ' t respond to 3DH or 39H
Program Access 3 E H or 3 A H
No Program Access W o n ' t respond to 3EH or 3AH
Description
Supervisor Only A M 2 = 1
Supervisor & Non-privileged A M 2 = don't care
Data Access R e s p o n d s to Address Modifier
No Data Access W o n ' t respond to 3DH or 39H
Program Access 3 E H or 3 A H
No Program Access W o n ' t respond to 3EH or 3AH
D-4
codes 3DH or 39H
codes 3DH or 39H
•
•
•
