XVME-100 Manual
March, 1987
•
Jumper
J1
J2
J3
J4
J5
J6
J7
J8
J9
J10
J11
J12
J13
J14
J15
•
J16
J17
J18
J19
J20
J21
J22
J23
J24
J25
J26
J27
J28
J29
J30
J3I
J32
J33
J34
J35
J36
J37
J38
J39
J40
•
J41
J42

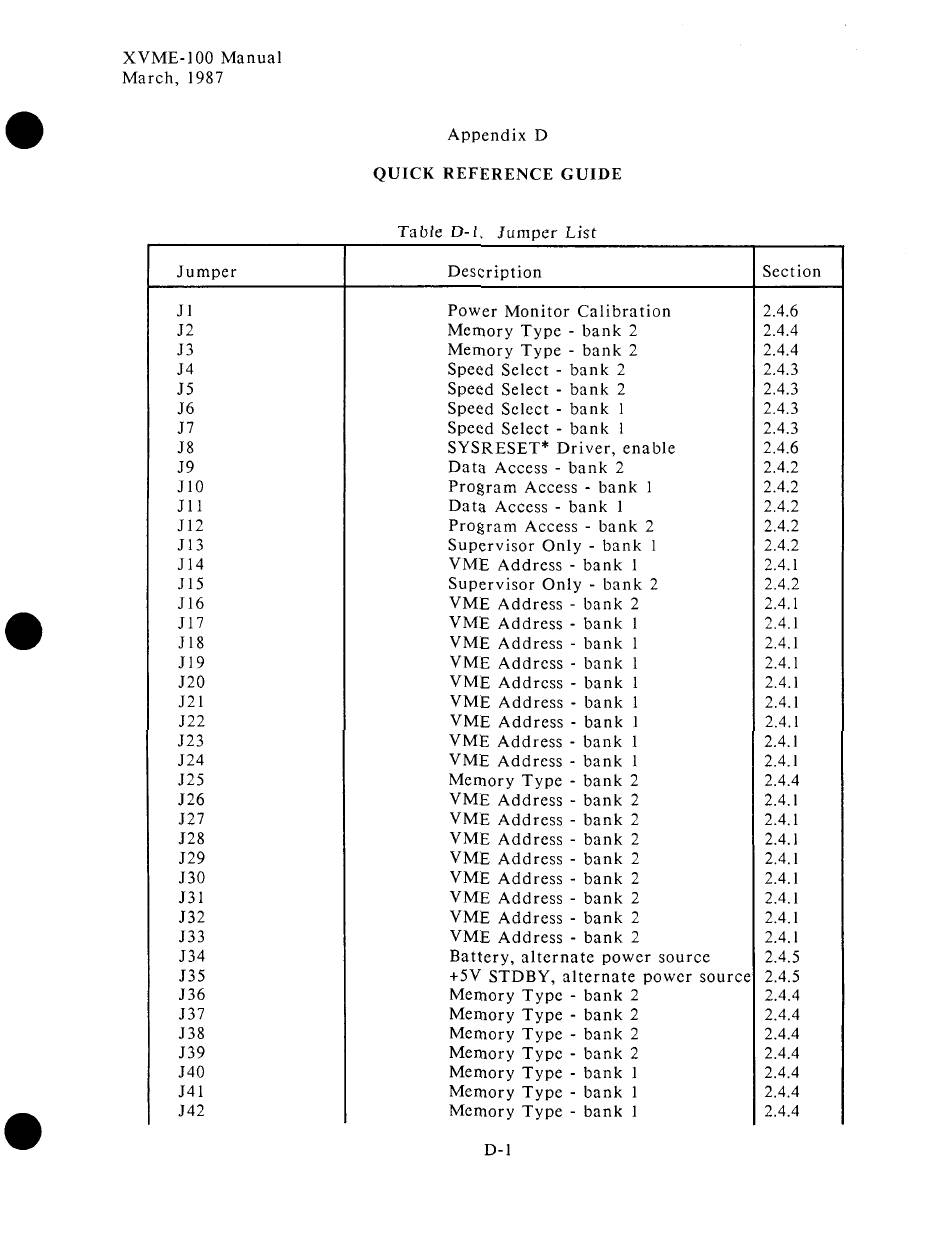

Appendix D
QUICK REFERENCE G U I D E
Table D-1. J u m p e r List
Description
Power Monitor Calibration
Memory Type - bank 2
Memory Type - bank 2
Speed Select - bank 2
Speed Select - bank 2
Speed Select - bank 1
Speed Select - bank 1
SYSRESET* Driver, enable
Data Access - bank 2
Program Access - bank 1
Data Access - bank 1
Program Access - bank 2
Supervisor Only - bank 1
VME Address - bank 1
Supervisor Only - bank 2
VME Address - bank 2
VME Address - bank 1
VME Address - bank 1
VME Address - bank 1
VME Address - bank 1
VME Address - bank 1
VME Address - bank 1
VME Address - bank 1
VME Address - bank 1
Memory Type - bank 2
VME Address - bank 2
VME Address - bank 2
VME Address - bank 2
VME Address - bank 2
VME Address - bank 2
VME Address - bank 2
VME Address - bank 2
VME Address - bank 2
Battery, alternate power source
+5V STDBY, alternate power source
Memory Type - bank 2
Memory Type - bank 2
Memory Type - bank 2
Memory Type - bank 2
Memory Type - bank 1
Memory Type - bank 1
Memory Type - bank 1
D-1
Section
2.4.6
2.4.4
2.4.4
2.4.3
2.4.3
2.4.3
2.4.3
2.4.6
2.4.2
2.4.2
2.4.2
2.4.2
2.4.2
2.4.1
2.4.2
2.4.1
2.4.1
2.4.1
2.4.1
2.4.1
2.4.1
2.4.1
2.4.1
2.4.1
2.4.4
2.4.1
2.4.1
2.4.1
2.4.1
2.4.1
2.4.1
2.4.1
2.4.1
2.4.5
2.4.5
2.4.4
2.4.4
2.4.4
2.4.4
2.4.4
2.4.4
2.4.4
