The user has three d i f f e r e n t options available f o r choosing alternate power source
of each bank. T h e s e options depend on t h e configurations o f J34 and J35 and are
as follows:
•

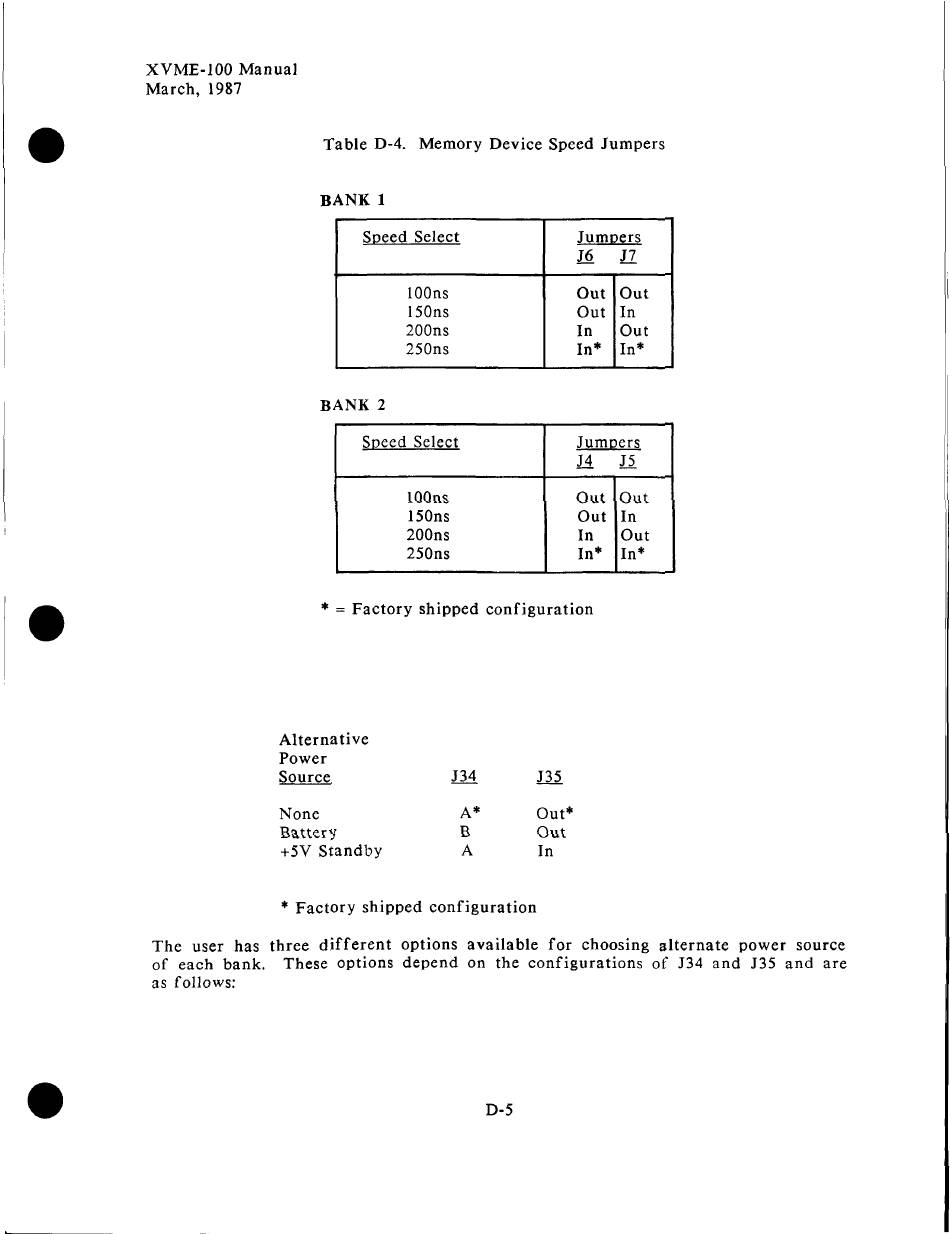

Table D-4. M e m o r y Device Speed Jumpers
BANK 1
Speed Select
100ns
150ns
200ns
250ns
BANK 2
Speed Select
100ns
150ns
200ns
250ns
* = Factory shipped configuration
Alternative
Power
Source J 3 4
None A *
Battery B
+5V Standby A
* Factory shipped configuration
Jumpers
J6 J 7
Out Out
In
Out
In Out
In*
In*
Jumpers
J4 J 5
Out Out
Out In
In Out
In* In*
J 3 5
O u t *
O u t
I n
