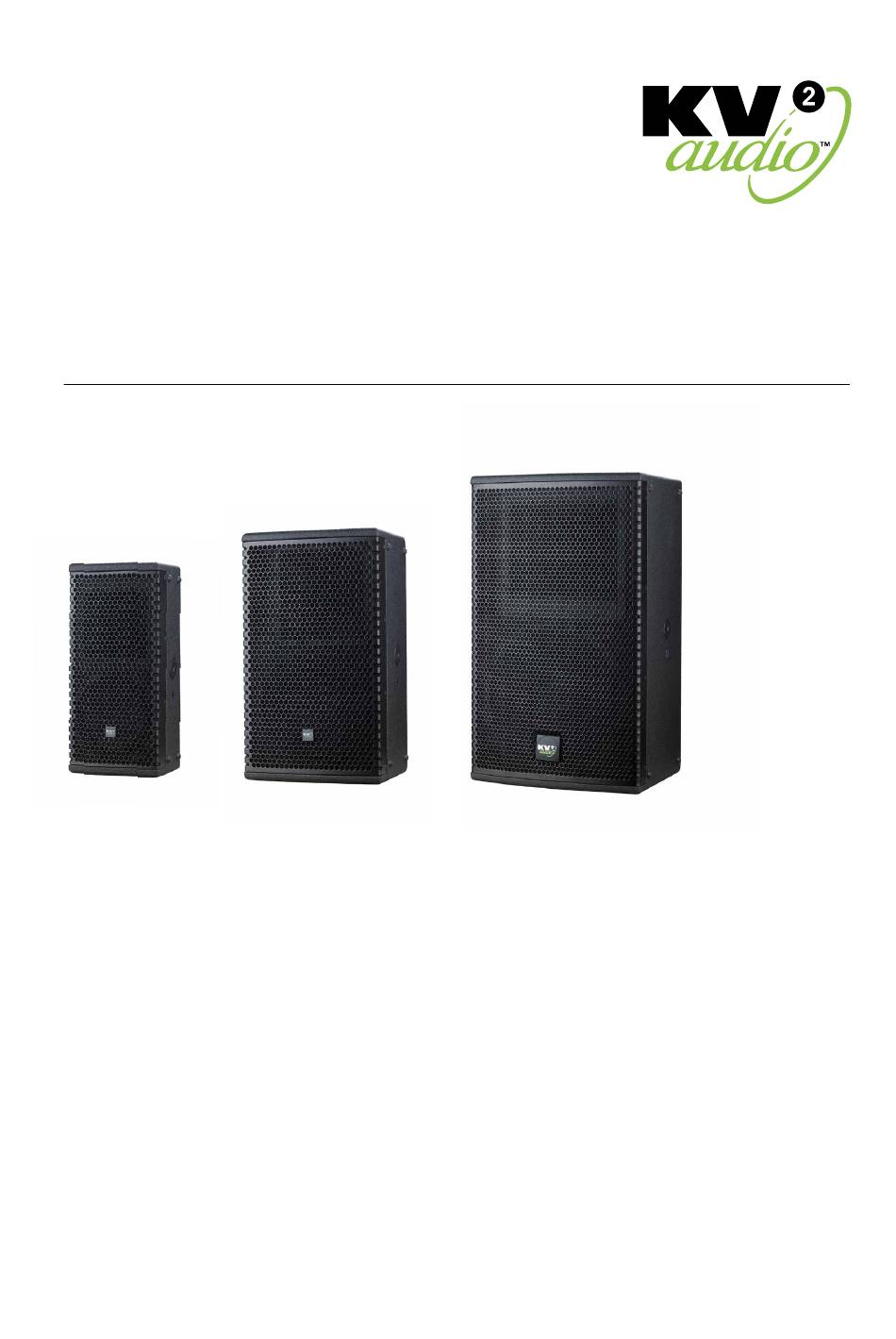

CS Series
User Guide
· CS6 · CS8 · CS12
The Future of Sound.
Made Perfectly Clear.
At KV2 Audio our vision is to constantly develop technologies
that eliminate distortion and loss of information providing
a true dynamic representation of the source.
Our aim is to create audio products that absorb you,
place you within the performance and deliver a listening
experience beyond expectations.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for KV2 Audio CS Series
Summary of Contents for KV2 Audio CS Series
- Page 1 · CS6 · CS8 · CS12 The Future of Sound. Made Perfectly Clear. At KV2 Audio our vision is to constantly develop technologies that eliminate distortion and loss of information providing a true dynamic representation of the source. Our aim is to create audio products that absorb you, place you within the performance and deliver a listening experience beyond expectations.
-
Page 2: Table Of Contents
6. Install in accordance with KV2 Audio's recommended installation instructions. 7. Only use accessories specified by KV2 Audio. 8. Install the product only with rigging specified by KV2 Audio, or sold with the loudspeaker. 9. An experienced user shall always supervise this professional audio equipment. - Page 3 • Compact enclosure allows discreet placement and application • Wide dispersion 90 H x 90 V Horn • KV2 Audio SLA technology passive crossover inc. thermal breaker protection • 1”/ 1.3” Titanium diaphragm compression driver • 6” Neodymium low mid woofer...
- Page 4 CS6 · Connection Standard Connection Parallel connection of the CS6 (8Ω) - Total impedance 2Ω. 2 wire or 4 wire cable may be used, the AMP CHANNEL SELECTION switch does not apply. Signal 1 Signal 1 Signal 1 Signal 1 Signal 1 2 Channel Connection Channel connection using single 4 wire cable (2 Channel Adapter Cable may be used - KVV 987 450).
- Page 5 CS6 · Wiring Wiring All CS6 SPEAKON connectors are wired in parallel and the desired amplifier channel is selected using AMP CHANNEL SELECTION switch. Terminal block (4 pins, 5.0mm pitch) is wired directly to the speaker, the AMP CHANNEL SELECTION switch does not apply.
- Page 6 CS6 · Drawings Drawing...
-
Page 7: Frequency Characteristics
CS6 · Frequency characteristics Frequency response Vertical Polarplots 125Hz - 250Hz 500Hz - 2kHz 4kHz - 16kHz 500Hz 4kHz 125Hz 1kHz 8kHz 250Hz 2kHz 16kHz Horizontal Polarplots 125Hz - 250Hz 500Hz - 2kHz 4kHz - 16kHz 500Hz 4kHz 125Hz 1kHz 8kHz 250Hz 2kHz... -
Page 8: Specifications
CS6 · Specifications Specifications System Acoustic Perfomance Max SPL Long-term 116dB Max SPL Peak 119dB -3dB Response 145Hz to 20kHz -10dB Response 95Hz to 28kHz Recommended Power 175W Sensitivity 94dB Impedance 8 Ω Crossover Point 4,2kHz High Frequency Section Acoustic Design Horn loaded High Horn Coverage Horizontal / Vertical 90°... -
Page 9: Overview
• Compact enclosure allows discreet placement and application • Wide dispersion 100 H x 90 V Horn • KV2 Audio SLA technology passive crossover inc. thermal breaker protection • 1”/ 1.3” Titanium diaphragm compression driver • 8” Neodymium low mid woofer... -
Page 10: Cs8
CS8 · Connection Standard Connection Parallel connection of the CS8 (8Ω) - Total impedance 2Ω. 2 wire or 4 wire cable may be used, the AMP CHANNEL SELECTION switch does not apply. Signal 1 Signal 1 Signal 1 Signal 1 Signal 1 2 Channel Connection Channel connection using single 4 wire cable (2 Channel Adapter Cable may be used- KVV 987 450). -
Page 11: Wiring
CS8 · Wiring Wiring All CS8 SPEAKON connectors are wired in parallel and the desired amplifier channel is selected using AMP CHANNEL SELECTION switch. Terminal block (4 pins, 5.0mm pitch) is wired directly to the speaker, the AMP CHANNEL SELECTION switch does not apply. -
Page 12: Drawings
CS8 · Drawings Drawing... -
Page 13: Frequency Characteristics
CS8 · Frequency characteristics Frequency response Horizontal Polarplots 73Hz - 250Hz 500Hz - 2kHz 4kHz - 16kHz 73Hz 500Hz 4kHz 125Hz 1kHz 8kHz 250Hz 2kHz 16kHz Vertical Polarplots 73Hz - 250Hz 500Hz - 2kHz 4kHz - 16kHz 73Hz 500Hz 4kHz 125Hz 1kHz 8kHz... -
Page 14: Specifications
CS8 · Specifications Specifications System Acoustic Perfomance Max SPL Long-term 120dB Max SPL Peak 123dB -3dB Response 125Hz to 20kHz -10dB Response 62Hz to 28kHz Recommended Power 275W Sensitivity 95dB Impedance 8 Ω Crossover Point 2kHz High Frequency Section Acoustic Design Horn loaded High Horn Coverage Horizontal / Vertical 100°... -
Page 15: Overview
• Compact enclosure allows discreet placement and application • Wide dispersion 80 H x 40 V Horn • KV2 Audio SLA technology passive crossover inc. thermal breaker protection • 1.4”/ 3” Titanium diaphragm compression driver • 12” Neodymium low mid woofer... -
Page 16: Cs12
CS12 · Connection Standard Connection Parallel connection of the CS12 (4Ω) - Total impedance 2Ω. 2 wire or 4 wire cable may be used, the AMP CHANNEL SELECTION switch does not apply. Signal 1 Signal 1 Signal 1 2 Channel Connection Channel connection using single 4 wire cable (2 Channel Adapter Cable may be used - KVV 987 450). -
Page 17: Wiring
CS12 · Wiring Wiring All CS12 SPEAKON connectors are wired in parallel and the desired amplifier channel is selected using AMP CHANNEL SELECTION switch. Terminal block (4 pins, 5.0mm pitch) is wired directly to the speaker, the AMP CHANNEL SELECTION switch does not apply. -
Page 18: Drawings
CS12 · Drawings Drawing... -
Page 19: Frequency Characteristics
CS12 · Frequency characteristics Frequency response Horizontal Polarplots 73Hz - 250Hz 500Hz - 2kHz 4kHz - 16kHz 73Hz 500Hz 4kHz 125Hz 1kHz 8kHz 250Hz 2kHz 16kHz Vertical Polarplots 73Hz - 250Hz 500Hz - 2kHz 4kHz - 16kHz 73Hz 500Hz 4kHz 125Hz 1kHz 8kHz... -
Page 20: Specifications
CS12 · Specifications Specifications System Acoustic Perfomance Max SPL Long-term 127dB Max SPL Peak 130dB -3dB Response 55Hz to 22kHz -10dB Response 50Hz to 30kHz Recommended Power 500W Sensitivity 98dB Impedance 4 Ω Crossover Point 1,2kHz High Frequency Section Acoustic Design Horn loaded High Horn Coverage Horizontal / Vertical 80°... -
Page 21: Accessories
CS Series · Accessories Horizontal Bracket for CS6 Vertical Bracket for CS6 part name: part name: CS6 Horizontal Bracket CS6 Vertical Bracket part number: part number: KVV 987 435 KVV 987 436 description: description: - black - black - including two... - Page 22 CS Series · Accessories Speakon speaker cable 4.15 Speakon speaker cable 4.40 part name: part name: CABLE SPEAKON 4.15 CABLE SPEAKON 4.40 part number: part number: KVV 987 326 KVV 987 327 description: description: - 4 wire speaker cable - 4 wire speaker cable...
-
Page 23: Warranty · Service
If the unit needs to be shipped back to the factory, it must be sent in its original carton. If improperly packed, the unit may be damaged. To obtain service, contact your nearest KV2 Audio Service Centre, Distributor or Dealer. -
Page 24: Notes
CS Series · Notes... - Page 25 CS Series · Notes...
- Page 26 The Future of Sound. Made Perfectly Clear. KV2 Audio International Nádražní 936, 399 01 Milevsko Czech Republic Tel.: +420 383 809 320 Email: info@kv2audio.com www.kv2audio.com KVV120147-00-01-0...
