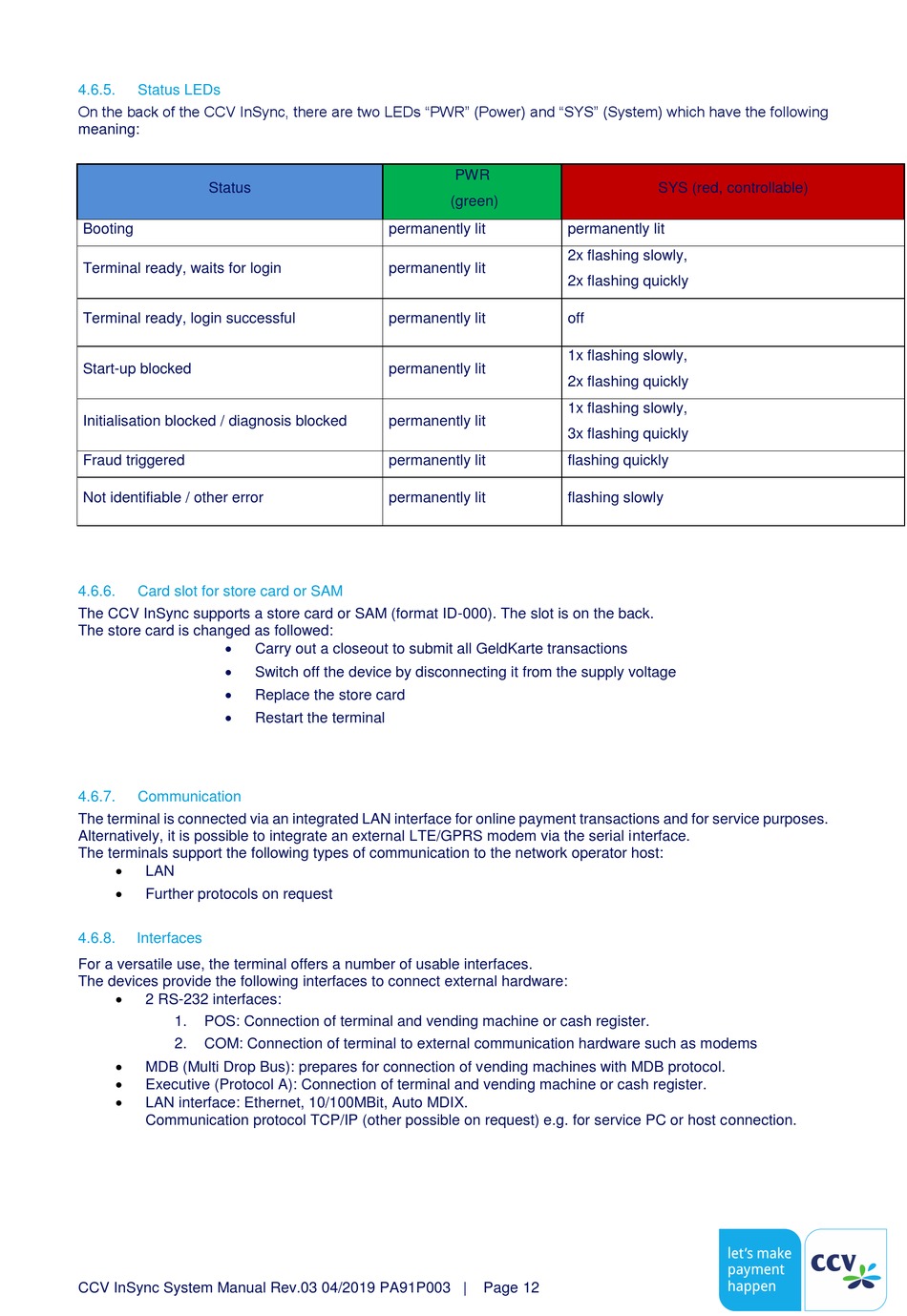

4.6.5.

Status LEDs

On the back of the CCV InSync, there are two LEDs "PWR" (Power) and "SYS" (System) which have the following
meaning:
Status
Booting
Terminal ready, waits for login
Terminal ready, login successful
Start-up blocked
Initialisation blocked / diagnosis blocked
Fraud triggered
Not identifiable / other error
4.6.6.

Card slot for store card or SAM

The CCV InSync supports a store card or SAM (format ID-000). The slot is on the back.
The store card is changed as followed:




4.6.7.

Communication

The terminal is connected via an integrated LAN interface for online payment transactions and for service purposes.
Alternatively, it is possible to integrate an external LTE/GPRS modem via the serial interface.
The terminals support the following types of communication to the network operator host:

LAN

Further protocols on request
4.6.8.

Interfaces

For a versatile use, the terminal offers a number of usable interfaces.
The devices provide the following interfaces to connect external hardware:

2 RS-232 interfaces:
1. POS: Connection of terminal and vending machine or cash register.
2. COM: Connection of terminal to external communication hardware such as modems

MDB (Multi Drop Bus): prepares for connection of vending machines with MDB protocol.

Executive (Protocol A): Connection of terminal and vending machine or cash register.

LAN interface: Ethernet, 10/100MBit, Auto MDIX.
Communication protocol TCP/IP (other possible on request) e.g. for service PC or host connection.
CCV InSync System Manual Rev.03 04/2019 PA91P003 |
permanently lit
permanently lit
permanently lit
permanently lit
permanently lit
permanently lit
permanently lit
Carry out a closeout to submit all GeldKarte transactions
Switch off the device by disconnecting it from the supply voltage
Replace the store card
Restart the terminal
PWR
(green)
permanently lit
2x flashing slowly,
2x flashing quickly
off
1x flashing slowly,
2x flashing quickly
1x flashing slowly,
3x flashing quickly
flashing quickly
flashing slowly
Page 12
SYS (red, controllable)
