- Page 1 Manual CCV IM30 English...
-
Page 2: Table Of Contents
Use in environments with heavy condensation conditions RS232-A (cash register) RS232-B COM Ethernet MDB-Standard (MDB slave) MDB-H/ Executive/ I/Os (MDB Master) 6.8.1 MDB-Master 6.8.2 Executive 6.8.3 I/Os 6.10 6.11 HDMI 6.12 Start-up with Service App Labels and seals Manual - CCV IM30... - Page 3 FCC Compliance Statement CE Declaration of Conformity Datasheet Manual - CCV IM30...
-
Page 4: Introduction

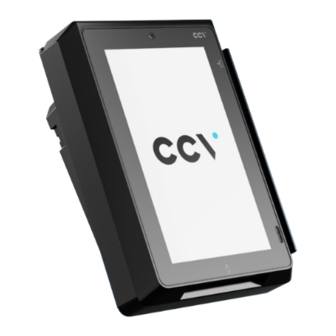

CCV IM30 is a all-in-one self-service payment terminal designed to increase sales, implement flawless security and be impervious to environmental damage. In addition, the CCV IM30 can also be used in conjunction with a separate pole stand in an attended environment. - Page 5 The current versions are available from the CCV download server. (https://download.ccv- deutschland.de) • CCV points out that regular operational and security relevant updates could be required. Not carrying out these updates can lead to loss of approval and/or malfunction. CCV notifies of necessary updates in an appropriate time of period via release-notes.
- Page 6 CCV is not liable for malfunctions or damage caused by lack of maintenance updates or maintenance errors due to the customer. • CCV supports you during the initial installation of the product into vending- or other machine, and recommends a joint check of your vending-machine/terminal integration on-site prior to piloting, so that typical problems can be eliminated in advance.
-
Page 7: Contents
M4 nuts for assembly of mounting frame to the bolts of the vending machine. M4 screws for assembly of the mounting frame to IM30 In addition to the CCV IM30 terminal, the following optionally orderable accessories are available. Part number... -
Page 8: Product Description
1 front facing camera 2 contactless card/device interface 3 LCD screen 4 smart card reader 5 magnetic stripe card reader 6 LED indicator (upper position) 7 proximity sensor (lower 2 positions) 8 code scanning camera 9 camera locator light Manual - CCV IM30... -
Page 9: Back View
(MDB slave) 15 MDB status LED Contactless card reader The CCV IM30 has a contactless card reader with an RF antenna located on its front face. The read area is the upper half of the touchscreen. Use contactless card from a distance of 0 to 4 cm. -
Page 10: Status Led And Proximity Detector
Unscrew the SAM card module and then remove it by prying at the notch set to its side. On the main body of the CCV IM30, there are 2 micro- SIM sized SAM card slots. Open the mount and insert the card into the slot with the clipped corner of the card to the upper right, then lock the mount with the card inside. -
Page 11: Buttons
Out of order Make your choice and/or present your card for yellow flashing payment or revalue. Transaction in progress yellow Transaction successful, vend in progress or revalue green flashing aproved Transaction denied follow display indication red flashing Manual - CCV IM30... -
Page 12: Installation
Installation The CCV IM30 is designed to be mounted on vertical surfaces by means of a mounting plate. Depending on the size of the cut-out on the front of the vending machine, installations can be made using a special mounting plate. Two variations are described below. -
Page 13: Installation Based On The Standard Cut-Out („Kiosk Cut-Out")
For installations based on the standard cut-out with the dimensions W x H (mm): 82.40 +0.10/-0.00 x 120.40 +0.10/-0.00 the Kiosk frame can be used for mounting the terminal. This has the CCV part number 03443-55. The illustration on the right shows the terminal rear view including positioning of the holes for mounting the terminal. -
Page 14: Installation Based On The Eva Sdm Cut-Out
The dimensions correspond to those of a standard door module (SDM) as defined by the European Vending Association (EVA). In this case, the supplied EVA mounting frame (CCV part number 03442-55) is used to mount the terminal. The M4 bolts should protrude from the back of the mounting plate so that the mounting frame can be inserted. -
Page 15: Connectors
DIGI_OUT1 Pin 6: This PIN can be used as PWR_In (power supply for IM30 if not supplied via MDB), or as PWR_Out (for example power for digital -IO board) if IM30 is powered via another pin (e.g. supply via MDB Standard connector). - Page 16 For a safe environment you have to use the terminal with a central power supply of your machine. You can order a cable for that operation with part number 03492-91. Adapter cable two wires to 6pin, 2000mm Manual - CCV IM30...
- Page 17 Wire end ferrule, 0.34 mm², color turquoise (DIN 46228) two items Shrink tube, black Cable retainer 2.5 mm width black – GNK Strain-relief, WAGO 734-127 red - Power Female connector with CAGE-CLAMP, WAGO 733-106 DESCRIPTION Manual - CCV IM30...
- Page 18 A component „HITFET-BTS3800SL“ was used for the digital I/O ports. Please take the according information from the datasheet below. Manual - CCV IM30...
-
Page 19: Cable Feeding To Prevent Condensate Dripping Into Device
(i.e., condensation) cannot flow down the cable into the device: The occurrence of condensation moisture can be limited by avoiding rapid temperature and humidity condition changes or by avoiding direct flow of cold air onto the device. Manual - CCV IM30... -
Page 20: Use In Environments With Heavy Condensation Conditions
Use in environments with heavy condensation conditions The IM30 is designed for use in humid environments, however, usage in heavy condensing environments can potentially reduce lifetime of the terminal. To prevent from this, we designed two additional protection measures: Passive protection (metal cover of the IM30): Reduces differential temperatures between the inside and outside of the vending machine. -
Page 21: Rs232-A (Cash Register)
Picture of active protection Metal shield: RS232-A (cash register) RJ45 8-poles, high speed interface (default 115.2 kbps/ switchable up to 921.6 kbps), shielded, hardware handshake, max. cable length 100 cm. signal POWER_IN MDB_WAKE Manual - CCV IM30... -
Page 22: Rs232-B Com
100 cm, software controlled supply voltage output to also supply external components besides communication. signal POWER_OUT MDB_WAKEUP Ethernet Ethernet is a common network protocol for local area network. The CCV IM30 has an Ethernet 10/100 Base-T port. signal Manual - CCV IM30... -
Page 23: Mdb-Standard (Mdb Slave)
MDB-Standard (MDB slave) Multidrop Bus (MDB) is a communication protocol commonly used in the vending machines. The CCV IM30 has a MDB Standard port that can communicate to a vending machine controller as well as accept an input voltage of 9V to 42V. MDB-H and MDB Standard to provide two separated MDB connectors with two separated communication ports. -
Page 24: Mdb-Master
In the case of galvanically separated I/Os on the CON-20: DigOut2 and DigIn4 (2 pins each from the CON20 are required). See also the following diagrams. Internal circuit diagram of the galvanically separated I/Os (DigOut2 and Digin4): Manual - CCV IM30... - Page 25 Internal circuit diagram of the switched output voltage. This switched voltage output at CON-20 (switched by EN_PWR_CON20) has the similar wiring as the voltage output at RS232B pin6 (switched by EN_PWR_COM). Manual - CCV IM30...
-
Page 26: Usb
The CCV IM30 has an USB Host port available for service access, it can accept 5V input to power the device. USB-Host (type A) For connecting external devices. signal USB-OTG (type C) For manufacturer-specific tools. signal signal A1 GND B1 GND... -
Page 27: Aux
6.10 The auxiliary jack is a term for a variety of analogue port usually made to transfer audio data. The CCV IM30 has a 3.5 mm auxiliary jack that can output an audio signal through external device and accept the input of a microphone. -
Page 28: Start-Up With Service App
4. Enter Service App PIN. Pressing the menu button starts the Service App. 5. Enter TID. This process 6. „Start Terminal 7. Wait for payment 8. Start-up finished – Exit. is repeated, i.e. the TIID Setup” engine. is entered twice. Manual - CCV IM30... -
Page 29: Labels And Seals
Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. • Manual - CCV IM30... - Page 30 & your body. CE Declaration of Conformity Hereby declares CCV Germany GmbH the accordance of the radio equipment CCV IM30 to the directive 2014/53/EU. The complete texts of the EU declarations of conformity are available on following internet address: https://www.ccv.eu/en/support/documentation/...
- Page 31 PayDroid Powered by Android 7.1 Memory 2GB LPDDR3, 8GB Flash Interfaces RS232 2x RS232, RJ45 USB Host, USB Type A | USB OTG, USB Type C LAN, 100MBit, RJ45 WLAN 2.4/5GHz WiFi integrated 2.4/5GHz WiFi integrated Manual - CCV IM30...
- Page 32 -20° to +70°C | (-4°F - 158°F) Temperature Range Storage -30 to +70°C | (-22°F - 158°F) Temperature Range Operating 5% … 95% RH | non condensing Humidity Range Shock IK08 Vibration Compliant to IEC 60068-2-6 Ingress IP 55 Protection Class Manual - CCV IM30...
- Page 33 * Only available until all certifications have been granted ** All power consumption values based on 12V DC supply *** serial number only, full technology support via corresponding S/W update, potentially additional specific SAMs might be required Manual - CCV IM30...
- Page 34 © 2023, CCV Group B.V. All rights reserved. No parts of this publication may be reproduced, stored in a retrieval system, or transmitted in any form by any means, electronic, mechanical, photocopying, recording or otherwise, without the written permission of CCV Group B.V.
