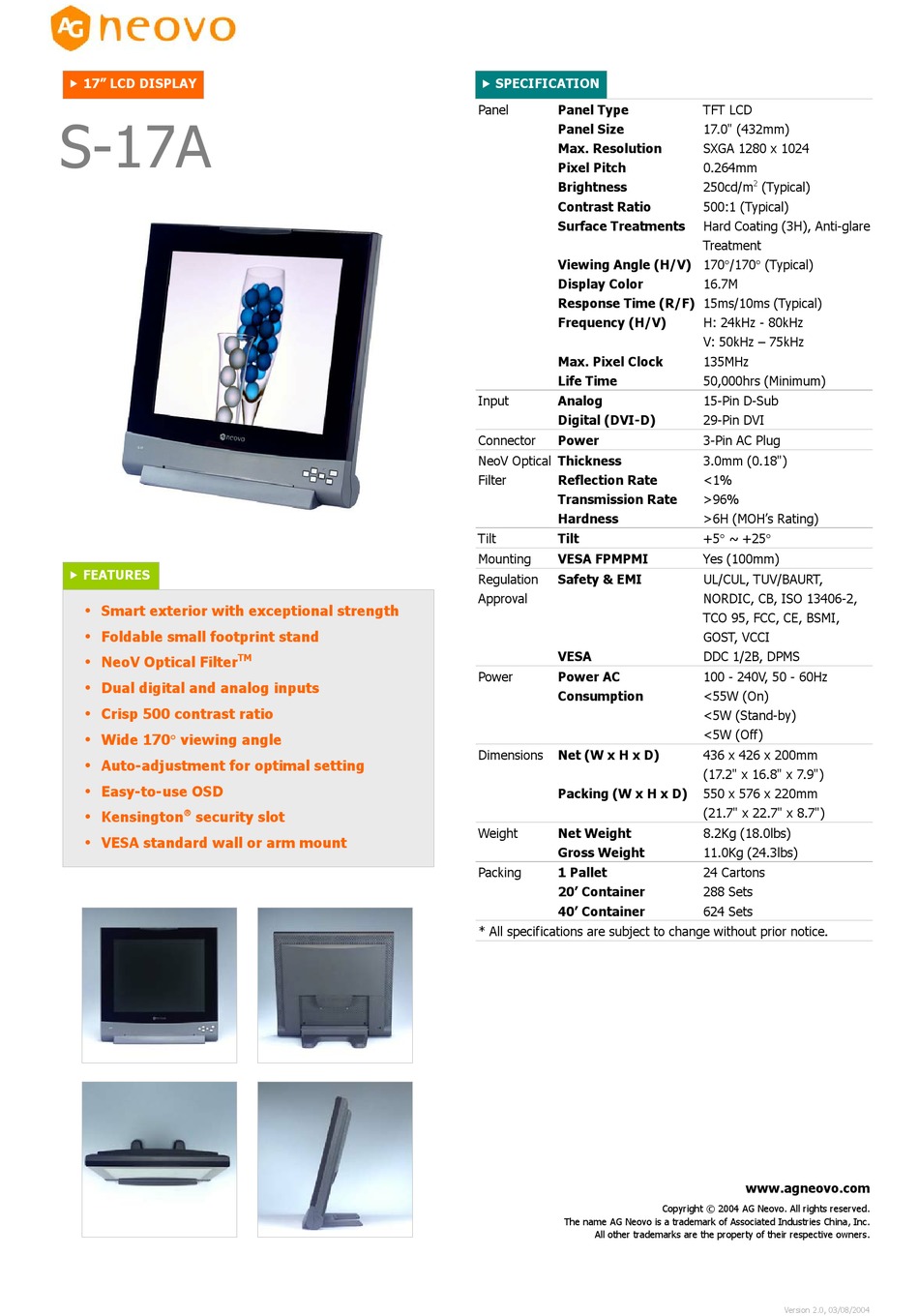

AG Neovo S-17A Specifications

17" LCD DISPLAY
S-17A
FEATURES
Smart exterior with exceptional strength
Foldable small footprint stand
NeoV Optical Filter
Dual digital and analog inputs
Crisp 500 contrast ratio
Wide 170° viewing angle
Auto-adjustment for optimal setting
Easy-to-use OSD

Kensington security slot
VESA standard wall or arm mount
TM
SPECIFICATION
Panel Panel Type
Panel Size
Max. Resolution
Pixel Pitch
Brightness
Contrast Ratio
Surface Treatments
Viewing Angle (H/V) 170°/170° (Typical)
Display Color
Response Time (R/F) 15ms/10ms (Typical)
Frequency (H/V)
Max. Pixel Clock
Life Time
Input Analog
Digital (DVI-D)
Connector Power
NeoV Optical Thickness
Filter Reflection Rate
Transmission Rate
Hardness
Tilt Tilt
Mounting VESA FPMPMI
Regulation Safety & EMI
Approval
VESA
Power Power AC
Consumption
Dimensions Net (W x H x D)
Packing (W x H x D)
Weight Net Weight
Gross Weight
Packing 1 Pallet
20' Container
40' Container
* All specifications are subject to change without prior notice.
The name AG Neovo is a trademark of Associated Industries China, Inc.
All other trademarks are the property of their respective owners.
TFT LCD
17.0" (432mm)
SXGA 1280 x 1024
0.264mm
250cd/m 2 (Typical)
500:1 (Typical)
Hard Coating (3H), Anti-glare
Treatment
16.7M
H: 24kHz - 80kHz
V: 50kHz – 75kHz
135MHz
50,000hrs (Minimum)
15-Pin D-Sub
29-Pin DVI
3-Pin AC Plug
3.0mm (0.18")
<1%
>96%
>6H (MOH's Rating)
+5° ~ +25°
Yes (100mm)
UL/CUL, TUV/BAURT,
NORDIC, CB, ISO 13406-2,
TCO 95, FCC, CE, BSMI,
GOST, VCCI
DDC 1/2B, DPMS
100 - 240V, 50 - 60Hz
<55W (On)
<5W (Stand-by)
<5W (Off)
436 x 426 x 200mm
(17.2" x 16.8" x 7.9")
550 x 576 x 220mm
(21.7" x 22.7" x 8.7")
8.2Kg (18.0lbs)
11.0Kg (24.3lbs)
24 Cartons
288 Sets
624 Sets
www.agneovo.com
Copyright © 2004 AG Neovo. All rights reserved.
Version 2.0, 03/08/2004
