ITRON OpenWay Riva Installation Manual
Gas remote disconnect
Hide thumbs
Also See for OpenWay Riva:
- Installation manual (43 pages) ,
- User manual (13 pages) ,
- Installation manual (40 pages)
Subscribe to Our Youtube Channel
Related Manuals for ITRON OpenWay Riva
Summary of Contents for ITRON OpenWay Riva
-
Page 1: Installation Guide
OpenWay® Riva Gas Remote Disconnect Installation Guide Technical knowledge to shape your future Communications... - Page 2 Suggestions For more information about Itron or Itron products, see www.itron.com. If you have questions or comments about the software or hardware product, contact Itron Technical Support Services. Contact •...
-
Page 3: Table Of Contents
Related documents.............................10 Chapter 4 Installing the OpenWay Riva Gas Remote Disconnect....11 Initial calibration and alignment.......................... 11 OpenWay Riva Gas Remote Disconnect installation, commissioning, and decommissioning ......12 OpenWay Riva Gas Remote Disconnect accessories..................12 Meter set installation............................13 OpenWay Riva Gas Remote Disconnect valve positions.................14 Installing the OpenWay Riva Gas Remote Disconnect in the pipe............ - Page 4 Connecting the flood sensor inline connector to the OpenWay Riva Gas Remote Disconnect......18 Chapter 6 OpenWay Riva Gas Remote Disconnect Programming....20 Sending OpenWay Riva Gas Remote Disconnect secure commands............... 20 Get Commands............................20 Performing a Get Commands......................20 Commissioning the OpenWay Riva Gas Remote Disconnect..............
-
Page 5: Chapter 1 Important Safety And Compliance Information
To ensure system performance, this device and antenna shall not be changed or modified without the express approval of Itron. Per FCC rules, unapproved modifications or operation beyond or in conflict with these instructions for use could void the user's authority to operate the equipment. -
Page 6: Canada, Ised Compliance
Caution: Use only approved accessories with this equipment. All cables must be high quality, shielded, and correctly terminated. Unapproved modifications or operation beyond or in conflict with these use instructions may void the authority's authorization to operate the equipment. OpenWay Riva Gas Remote Disconnect Installation Guide TDC-1759-000 Proprietary and Confidential... -
Page 7: Telemetering Equipment Classification
Itron. Any unauthorized modification will void the user's authority to operate the equipment. In the event of malfunction, all repairs should be performed by Itron. It is the responsibility of users requiring service to report the need for service to Itron. -
Page 8: Aluminum Enclosure
Device cleaning Warning: Clean only with a damp cloth. Do Not Drop Warning: While Itron modules are designed to withstand a drop, dropping the module may damage the device and void the warranty. OpenWay Riva Gas Remote Disconnect Installation Guide TDC-1759-000... -
Page 9: Product Notification
Warning: These instructions are suggested when Itron-approved utility or installer company-established valve installation procedures and practices are not available. • Itron does not endorse or warrant the completeness or accuracy of any third-party valve installation procedures or practices, unless otherwise provided in writing by Itron. -
Page 10: Chapter 2 Openway Riva Gas Remote Disconnect Installation Guide Overview
OpenWay Riva Gas Remote Disconnect remote-controlled valve. Audience This installation guide is intended for Itron personnel, third-party OpenWay Riva system installers, and end-users of the OpenWay Riva Gas Remote Disconnect remotely-controlled valve. OpenWay Riva Gas Remote Disconnect Installation Guide TDC-1759-000... -
Page 11: Chapter 3 About The Openway Riva Gas Remote Disconnect
The Itron wireless OpenWay Riva Gas Remote Disconnect valve is integrated in the piping serving OpenWay Riva networks to provide a safe secure device to stop the flow of natural gas into a residential or commercial structure. The OpenWay Riva Gas Remote Disconnect enables system monitoring with functionality to remotely-control the natural gas supply. -
Page 12: Openway Riva Gas Remote Disconnect System Security
The presence of these utility factory keys does not enable the enhanced security. The installer enables the enhanced security at the time the OpenWay Riva Gas Remote Disconnect is deployed or at a later time using an Itron programming device, Field Deployment Manager Endpoint Tools Enhanced, and programming commands. -
Page 13: Openway Riva Gas Remote Disconnect Functional Specifications
(ready to be physically opened) until it detects an open valve. It then transitions to the open state. • Open. The OpenWay Riva Gas Remote Disconnect valve receives a command to open from a network reading device. Opening the valve requires an on-site visit to physically open the valve. -
Page 14: Related Documents
FM modulation; all other messages are AM modulated Related documents Document title Document part number Customer setup to order secured OpenWay Riva modules TDC-1748-XXX First article review form TDC-1749-XXX OpenWay Collection Manager Operational Guidelines OpenWay Riva Events and Exceptions Reference Guide... -
Page 15: Chapter 4 Installing The Openway Riva Gas Remote Disconnect
FDM Endpoint Tools Enhanced support secure installation commissioning and verification. FDM Endpoint Tools Enhanced receives secure, signed commands and a list of OpenWay Riva Gas Remote Disconnect reading keys for each specific device, if they are available. The OpenWay Riva Gas Remote Disconnect supports FDM Endpoint Tools operation featuring two important capabilities. -
Page 16: Openway Riva Gas Remote Disconnect Installation, Commissioning, And Decommissioning
To ensure safe and efficient operation of this product, Itron strongly recommends installation by a qualified professional. OpenWay Riva Gas Remote Disconnect accessories This section provides a list of the accessories available for the OpenWay Riva Gas Remote Disconnect. Description... -
Page 17: Meter Set Installation
OpenWay Riva Gas Remote Disconnect deployment begins with the installation of the device in gas piping. The OpenWay Riva Gas Remote Disconnect is 6.5" in height and requires clearance from the adjacent pipe, meter set components, and building materials to accommodate that size. -
Page 18: Openway Riva Gas Remote Disconnect Valve Positions
Remove the red shipping plugs from the inlet and outlet and vent the OpenWay Riva Gas Remote Disconnect prior to installation. Keep the piping interior, regulator inlet, and regulator outlet free from dirt, chemical sealant (pipe dope), Teflon tape, or other debris. -

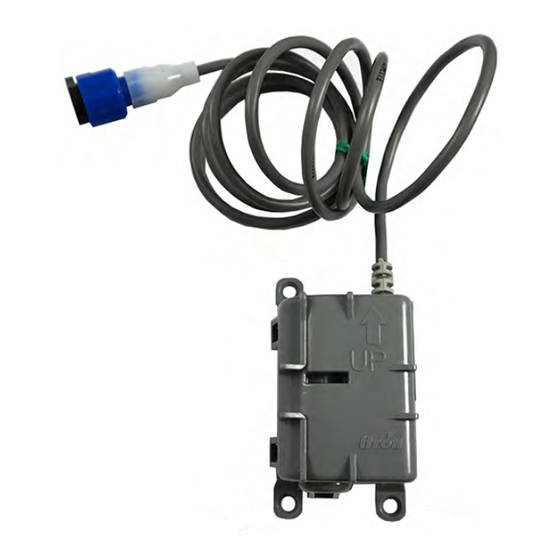

Page 19: Installing The Flood Sensor
3. Apply pipe sealant on the pipe. Caution: Do not leave loose tape or excess pipe sealant on the pipe connections. 4. Thread the OpenWay Riva Gas Remote Disconnect onto the inlet pipe (or riser). 5. Tighten the connection with a pipe wrench. -
Page 20: Mounting The Flood Sensor On The Pipe
Note: The three mounting holes on the flood sensor may be used as a drilling template for installation. 2. Secure the flood sensor to a wall or other flat surface by tightening three user-supplied screws through the flood sensor's mounting flanges. OpenWay Riva Gas Remote Disconnect Installation Guide TDC-1759-000 Proprietary and Confidential... - Page 21 Installing the OpenWay Riva Gas Remote Disconnect OpenWay Riva Gas Remote Disconnect Installation Guide TDC-1759-000 Proprietary and Confidential...
-
Page 22: Chapter 5 Connecting The Flood Sensor To The Openway Riva Gas Remote Disconnect
Chapter 5 Connecting the Flood Sensor to the OpenWay Riva Gas Remote Disconnect The flood sensor connects to the OpenWay Riva Gas Remote Disconnect through an inline connector. Connecting the flood sensor inline connector to the OpenWay Riva Gas Remote Disconnect 1. - Page 23 Connecting the Flood Sensor to the OpenWay Riva Gas Remote Disconnect 4. Twist the inline connector's blue tab until it aligns with the OpenWay Riva Gas Remote Disconnect connector's tab. 5. Secure a tamper seal through the connection tab's opening to complete the connection.
-
Page 24: Chapter 6 Openway Riva Gas Remote Disconnect Programming
Chapter 6 OpenWay Riva Gas Remote Disconnect Programming The OpenWay Riva Remote Gas Disconnect can be programmed and read with an FC300SR handheld computer and read with an Itron Mobile Radio connected to a user- supplied laptop. Programming the device requires Field Deployment Manager version 4.1.0. -
Page 25: Commissioning The Openway Riva Gas Remote Disconnect
Continue the OpenWay Riva Gas Remote Disconnect deployment by connecting the device. This process prepares the valve for opening by a qualified installer or technician. Caution: If the OpenWay Riva Gas Remote Disconnect valve is opened too soon, you must send a Disconnect Service command followed by a new Connect Service command. -
Page 26: Disconnecting The Openway Riva Gas Remote Disconnect
OpenWay Riva Gas Remote Disconnect Programming 2. Click Next. 3. Enter the OpenWay Riva Gas Remote Disconnect device ID. 4. Click Next. Caution: A Warning appears to remind the service technician to light the pilots after the valve is opened. You must wait until the programming device confirms the valve is ready to be opened. -
Page 27: Decommissioning The Openway Riva Gas Remote Disconnect
Itron Support Services for help. Decommissioning the OpenWay Riva Gas Remote Disconnect In the event the OpenWay Riva Gas Remote Disconnect will be removed from service, the device must first be decommissioned. Warning: Prior to decommissioning the OpenWay Riva Gas Remote Disconnect, verify the gas supply is turned off.
