- Page 1 MILO PANELS INSTALLER MANUAL INSTALLER MANUAL...
- Page 2 Technical publication for information purposes edited by FERMAX ELECTRÓNICA S.A.U. FERMAX ELECTRÓNICA applies a continuous improvement policy, therefore it reserves the right to modify the contents of this document, as well as the product features hereof at any time and without prior notice. Any modification will be reflected in subsequent editions of this document.
-
Page 3: Table Of Contents
INDEX 1 DESCRIPTION ........................4 2 WEB BROWSER PROGRAMMING ..................5 2.1 DEVICE .............................. 6 2.2 GENERAL ............................7 2.3 NETWORK CONFIGURATION ......................9 2.4 ACCESS ............................10 2.5 FACE RECOGNITION........................11 2.6 IP CAMERA............................13 2.7 SIP ..............................14 2.8 SIP TRUNK ............................ -
Page 4: Description

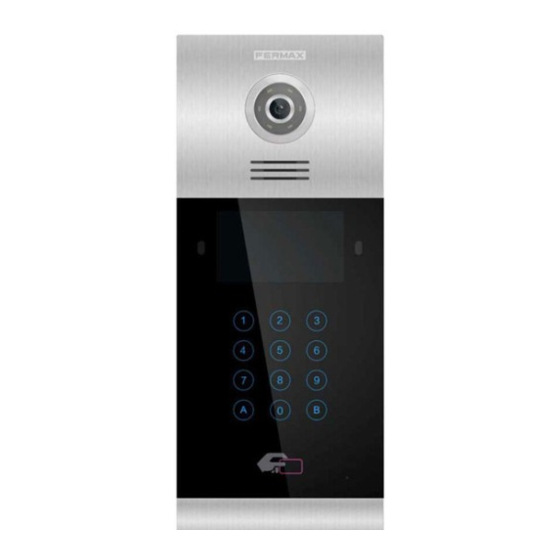

Residents can access to their corresponding entrance by passing their authorized Mifare card. The door will open and release the lock. The Mifare identifier data must be added through FERMAX MEET MANAGEMENT software. Maximum 100.000 Mifare cards. By means of their WIEGAND connection (output) it is possible to integrate this Mifare Card reader in third party Access Control Systems. -
Page 5: Web Browser Programming
2 WEB BROWSER PROGRAMMING For programming of the MILO panel, access is required through a PC via a web browser. Preferably use Chrome browser. The PC must be connected to the same LAN as the panel and configured with an IP address in the same range. -
Page 6: Device
2.1 DEVICE The section DEVICE provides some technical information regarding the equipment, as a reference. FERMAX MEET PANEL: Device type FIRMWARE: Version of the installed firmware DEVICE: Type and panel number MAC: Panel MAC number IP: IP address assigned to the panel... -
Page 7: General
2.2 GENERAL The section GENERAL allows the configuration of the identification parameters of the MILO panel within the installation and allows time-date configuration. Button for saving options above of it Button for saving date/time options only. TYPE: Select the identification parameter of the panel. There are some other parameters related, depending on TYPE selection: GENERAL ENTRANCE PANEL Panel installed in one of the main entrances to a condominium... - Page 8 BLOCK PANEL ENTRANCE Panel installed in a single building or in a block of a condominium • BLOCK: Number assigned to the block where the panel has been installed (1-999). In the case of individual blocks, let the default value: 1. •...
-
Page 9: Network Configuration
If the installation has no FERMAX MANAGEMENT SOFTWARE the installer can set date, time and time zone manually. Do not use the GMT (TIME ZONE) adjustment in this case. GMT is usable only when the time is automatically taken from internet or FERMAX MANAGEMENT SOFTWARE. -
Page 10: Access
SOFTWARE PIN: PIN ACCESS code for the Management Software control. The default setting is 123456. Indicate the corresponding parameters and click on SAVE to confirm. NOTE: The MEET system uses static IP addressing. This ensures that each device has a unique IP address in the same installation. -
Page 11: Face Recognition
2.5 FACE RECOGNITION Use this setting to enable or disable the FACE RECONGNITION function of the panel. The FERMAX MANAGEMENT SOFTVARE V01.05 is required for programming and managing the photos of the authorized faces. System supports up to 6.000 faces... - Page 12 FACE RECOGNITION: Enable or disabled face recognition function. MODEL: Default 5.0 in this version. LIVENESS DETECTION: Enable or disabled LIVENESS DETECTION function. SIMILARITY: High, medium and low options. Default is low. NOTES: MEET panel face recognition function is based on a bidimensional face identification, with the ability of differentiating among photos or live faces in certain conditions.
-
Page 13: Ip Camera
2.6 IP CAMERA The monitor can switch to IP CCTV camera video during a conversation. This function allows to configure IP CCTV cameras using RTSP protocol to be displayed as an auxiliary camera to provide different view angles from the door or related areas ... -
Page 14: Sip
This option allows configure MILO panel for use SIP functionalities, such us smartphone divert using the FERMAX MEET-MEE APP or allow the panel to operate with a third-party SIP systems or terminals using SIP protocol instead of FERMAX MEET protocol. - Page 15 Configuration for SIP server integration Configure the SIP parameters as explained below, for the cases where the MILO panel works as an extension of a SIP server. Contact with the SIP server administrator to get some of the information required in this section. ...
-
Page 16: Sip Trunk
2.8 SIP TRUNK When there is a VoIP gateway installed on the network connected to a PSTN line. The panel call can be diverted to user's mobile phone or land line telephone through a voice gateway. ENABLE SIP TRUNK: Enable or disable SIP trunk function. URL: URL of the device: Format sip: sip_trunk_account@sip_trunk_domain: port... -
Page 17: Sip Call
This option allows to generate calls to smartphone devices in the cases where is not a MEET monitor associated in the installation. A FERMAX MEET ME licence Ref. 1496 is required for each apartment The call can be received in 8 smartphones simultaneously. - Page 18 Use the following cells (A2, A3, A4, etc.) to fill in the data of the devices to divert. Depending on the type of call, the format of the data is different: IN the case of a call to a FERMAX MEET ME LICENCE: APARTMENT, sip: XXXXXXX@sip.fermax.com were XXXXXXX is the licence name and...
-
Page 19: Advanced
• Apartment 170 generates a call to the monitor IP 192.168.1.190 in the same installation. • Apartment 171 generates a call to the smartphone with FERMAX MEET ME licence 0103283. • Apartment 645 generates a call to the monitor IP 192.168.1.195 in the same installation. -
Page 20: Pincode
Finally, select SAVE. NOTE: Make a note of the new PIN at your convenience. If you lose or forget your PIN, you should contact FERMAX's Technical Department to receive instructions regarding its recovery. All settings programmed into the monitor will be lost. -
Page 21: Restore
2.12 RESTORE Use this functionality to remotely reset the MILO panel, or to return it to factory settings. In both cases it will ask for confirmation. RESTORE FACTORY SETTINGS: The monitor will automatically turn off and start up with the factory settings. -
Page 22: Log Out
2.13 LOG OUT Use this functionality if you want to end your working session with this panel The panel will request access credentials again in the case of new access via web server... -
Page 23: Operation
3 OPERATION Interaction with MILO panel is through a keypad. In the case of Ref. 9531 it is a mechanical keypad, and in the case of Ref. 9532 it is a touch keypad. Operation is the same, independently of the type of keypad A TFT screen allows basic information for the users, alternating information of how call apartments and how call concierge. - Page 24 NOTE: Face recognition requires some previous programming by means of the FERMAX MEET MANAGEMENT Software. ACCESS PIN This function allows users open the door by means of entering an ACCES PIN code.
- Page 25 GUEST CODE This function allows users open the door by means of entering a numerical code that has been given to him, for example to get access during a certain day. The panel shall have installed a GUEST CODE MODULE Ref.1494 and a third-party Access Control System is required.
-
Page 26: Installation
4 INSTALLATION 4.1 Flush box installation 4.2 Installation Guide Diagram Flush box install. Base flush box depth The upper part of the adjustment hook. panel is stuck in, then move the panel to the flush box. Move the slider of the panel and fix the two screws. -
Page 27: Connectors
4.3 Connectors The MILO panel is connected to the installation by means of connectors: ethernet for LAN connection and MOLEX type connectors for other connections (power supply, RS-485, etc.). A bag containing the corresponding female connectors with their cables comes with the panel. POWER INPUT: 12 Vdc-2A power supply. -
Page 28: Basic Diagrams
This panel has an internal tamper button. If the panel is separated from the wall, an alarm is triggered in the panel, concierge and FERMAX MANAGENEMN SYSTEM (if exists). 4.4 Basic diagrams Supply the panel by means of a FERMAX Ref. 4813 (18 Vdc... -
Page 29: Diagram Installation Of The Guest Code Module Ref. 1494
4.6 Diagram installation of the GUEST CODE Module Ref. 1494 4.7 Diagram installation of the lift control system This installation has to be performed in the PANEL nº 1 of the corresponding block only. -
Page 30: Technical Specifications
5 TECHNICAL SPECIFICATIONS • Power supply: 12 Vdc • Standby current: 250 mA • Working current: 500 mA • Display specifications ° Size: 4.3 inch ° Format: 4:3 ° Resolution: 480 x 272 pixel ° View angle: 110º (H), 90º (V) °... -
Page 31: Annex
Contact the FERMAX Technical Department if you wish to receive the corresponding update file. The firmware update is performed via the MEET System Upgraded Tool V 1.2.exe. The procedure for updating the firmware with the corresponding update file is as follows. -
Page 32: Regulations
6.2 Regulations RADIO FREQUENCY MODULE. EC DECLARATION OF CONFORMITY: FERMAX ELECTRÓNICA, S.A.U. declares that this product complies with the requirements in the RED 2014/53/EU Directive “Radio frequency equipment”. https://www.fermax.com/intl/en/pro/documents/technical-documentation/DT-13-declarations-of- conformity.html Radio frequency module: • Frequency: / Maximum Power: 2,45mW. 13.56MHz This device, pursuant to Part 15 of the FCC Rules.
