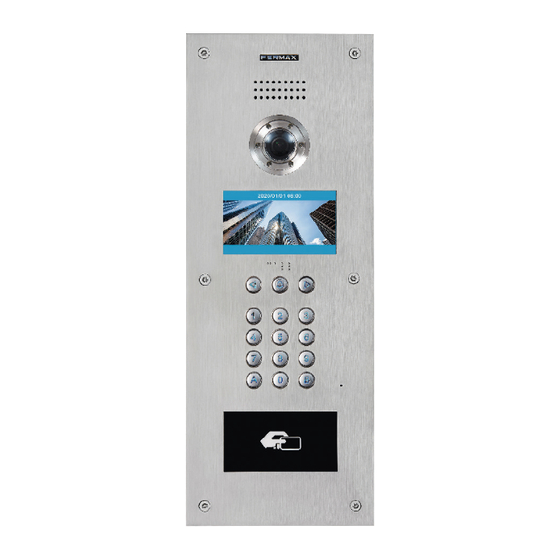

  • Page 1 MARINE PANEL INSTALLER MANUAL...
  • Page 2 Technical publication for information purposes edited by FERMAX ELECTRÓNICA S.A.U. FERMAX ELECTRÓNICA applies a continuous improvement policy, therefore it reserves the right to modify the contents of this document, as well as the product features hereof at any time and without prior notice. Any modification will be reflected in subsequent editions of this document.
  • Page 3 INDEX 1. DESCRIPTION 2. WEB BROWSER PROGRAMMING 2.1. Decive 2.2. General 2.3. Network 2.4. Access 2.5. Face recognition 2.6. Ip camera 2.7. Sip 2.8. Sip trunk 2.9. Sip call 2.10. Advanced 2.11. Pincode 2.12. Qr access 2.13. Restore 3. OPERATION 3.1 Icon functions 4.
  • Page 4 Residents can access to their corresponding entrance by passing their authorized Mifare identifier.The door will open and release the lock. TheMifare identifierdata has to be added through FERMAX MEET MANAGEMENT software. Maximum 100.000 identifiers. By means of their WIEGAND connection (output) it is possible to integrate this Mifare reader in third party Access Control Systems.It is also possible to integrate third party readers using WIEGAND protocol with the...
  • Page 5 A web page will appear with the different programming sections: 2.1. DEVICE The section DEVICE providestechnical information regarding the equipment, as a reference. • FERMAX MARINE PANEL: Device type • FIRMWARE: Version of the installed firmware • DEVICE: Type and panel number •...
  • Page 6 2.2. GENERAL The section GENERAL allows the configuration of the identification parameters of the MARINE panel within the installation. It allows time and date configuration. Button for saving options above of it Button for saving date/time options only. TYPE: Select the identification parameters of the panel. There are some other parameters related, depending on TYPE selection: General Entrance Panel Panel installed in one of the main entrances to a condominium.
  • Page 7: Network Configuration

    If the installation has no FERMAX MANAGEMENT SOFTWARE the installer can set date, time and time zone manually. Do not use the GMT (TIME ZONE) adjustment in this case. GMT is usable only when the time is automatically taken from internet or FERMAX MANAGEMENT SOFTWARE.
  • Page 8 NOTE: The MEET system uses static IP addressing. This ensures that each device has a unique IP address in the same installation. If a device has an IP address already assigned to another device on the network, an “IP CONFLICT” prompt will appear in the panel screen, along with the MAC of the conflicting device.
  • Page 9: Face Recognition

    If there are not more cards to program, after two minutes the panel will exit program mode. There is not possible to deregister cards programmed by this method. Use the FERMAX MEET MANAGEMENT SOFTWARE for full operational possibilities.
  • Page 10 System supports up to 6.000 faces. FACE RECOGNITION: Enable or disabled face recognition function. MODEL: 5.0 in this version. Do not use MODEL 6.0, because it is prepared for future FERMAX MANAGEMENT SOFTWARE versions. LIVENESS DETECTION: Enable or disabled LIVENESS DETECTION function.
  • Page 11 STUN PORT: Not necessary. Leave it in blank. H.264: Leave the default value: 102. SIP USER, SIP PASSWORD: Indicate the user and password of the FERMAX MEET ME license assigned to this panel. They are indicated in a label attached in the front of the panel.
  • Page 12: Sip Trunk

    STUN IP: domain of the SIP server STUN PORT: Used for the configuration of Internet SIP server-based installations. It is usually port 5060. Check with your network or SIP server administrator. H.264: Depends on the SIP SERVER. In the case of doubt, leave the default value. SIP USER, SIP PASSWORD: Indicate the user and password that this terminal is programmed in the SIP server.
  • Page 13 This option allowsto generate calls to smartphone devices in the cases where it is nota MEET monitor associated in the installation. A FERMAX MEET ME licence Ref. 1496 is required for each apartment The call can be received, simultaneously, in 8 smartphones in the same apartment.
  • Page 14 IP 192.168.1.195 in the installation. • Apartment 183 generates a call to the SIP device 1234 of the SIP server with IP 192.168.1.170 and to the monitor IP 192.168.1.197 in the installation and to the smartphone with FERMAX MEET ME licence 0103283. 2.10 ADVANCED Some advanced settings, such as quick dial and directory, can be selected in this section.
  • Page 15 The first cell (A1) has the content: APARTMENT, NAME, Do not change it. Use the following cells (A2, A3, A4, etc.) to fill in the data of apartment name ad user’s name, with the format “Apartment_number”, “Name”, Once the table has been finished, save it and import to the panel. For this, click on “Choose file”, select the file to import and click on IMPORT button.
  • Page 16 NOTE: Make a note of the new PIN at your convenience. If you lose or forget your PIN, you should contact FERMAX’s Technical Department to receive instructions regarding its recovery. All settings programmed into the monitor will be lost after recovery.
  • Page 17 NETWORK • IP: 10.1.0.1 • MASK: 255.0.0.0 • GATEWAY: 10.254.0.1 • DNS: 8.8.8.8 • SOFTWARE IP: 10.0.0.200 Any other parameters (sip, IP cameras,concierges, etc.) that have been configured will also be lost. REBOOT DEVICE: The panel will automatically turn off and start up keeping all the programming parameters.
  • Page 18: Operation

    OPERATION The screen of the MARINE PANEL is interactive, so its performance depends on the call process or selected function. When someone stands in front of the panel or press button, a standby interface is shown. This standby interface loop playback, depending on the programming settings. It is also possible to select one of the available function icons via shortcut or menu.
  • Page 19 If the user´s face has been programmed and the system recognises him, the door will open. NOTE: Face recognition requires previous programming by means of the FERMAX MEET MANAGEMENT Software. DIRECTORY icon It allows to use a directory for selecting and calling an apartment searching the owner´s name. Press arrow button and access to menu, select this icon via arrow button, then press “B”.
  • Page 20 the panel is standby,the Guest Code interface will appear, users shall enter the valid guest code followed by “B” to open the door. If a wrong code is entered the panel will show an INVALID CODE message. The panel shall have installed a GUEST CODE MODULE Ref.1494, as explained in the INSTALLATION section.
  • Page 21 4INSTALLATION 4.1 FLUSH BOX INSTALLATION Flush Box 4.2 INSTALLATION GUIDE DIAGRAM Flush boxinstall. Fix the six screws 4.3. CONNECTORS The MARINE panel is connected to the installation by means of connectors: Ethernet for LAN connection and MOLEX type connectors for other connections (power supply, RS-485, etc.). A bag containing the corresponding female connectors with their cables comes with the panel.
  • Page 22: Basic Diagrams

    Basic diagram using no PoE switch Supply the panel by means of a FERMAX Ref. 4813 (12 Vdc 2A) power supply Use a power supply adapted to the electric lock voltage & current. Do not power the panel and the electric lock from the same power supply.
  • Page 23 NOTE: The 1491 module need be connected to the PANEL No.1 in the block. 4.6. DIAGRAM INSTALLATION OF THE GUEST CODE MODULE REF. 1494 4.7. DIAGRAM INSTALLATION OF THE LIFT CONTROL SYSTEM REF. 9545 This installation has to be performed in the PANEL no. 1 of the corresponding block only. MARINE PANEL...
  • Page 24: Technical Specifications

    TECHNICAL SPECIFICATIONS Power supply 12 Vdc or PoE Standby current (max.) 290 mA Working current (max.) 490 mA Display specifications Size 4.3 inch Format Resolution 480*272 Camera specifications Resolution 1.280 (H)*720 (V) Visual angle 128º (H), 70º (V) Minimum illumination 0,5 Lux Maximum conversation time 120s...
  • Page 25: Firmware Updates

    Contact the FERMAX Technical Department if you wish to receive the corresponding update file. The firmware update is performed via the MEET System Upgraded Tool V1.2.exe. The procedure for updating the firmware with the corresponding update file is as follows.
  • Page 26 Avd. Tres Cruces, 133 46017 Valencia Spain For extended information, visit www.fermax.com Contact: tec@fermax.com...
