- Page 1 TECHNICAL MANU TECHNICAL MANU TECHNICAL MANU AL TECHNICAL MANU TECHNICAL MANU TECHNICAL MANU TECHNICAL MANU TECHNICAL MANU AL TECHNICAL MANU TECHNICAL MANU MDS SYSTEM INTRODUCTION Page 1...
- Page 2 Code 94726Ib-0 V06_10 This technical document of an informative nature is published by FERMAX ELECTRONICA S.A.E., who reserve the right to modify characteristics of the products referred to herein at any time and without prior notice. These changes will be reflected in subsequent editions of this document.
-
Page 3: Table Of Contents
INDEX MDS SYSTEM INTRODUCTION MDS SYSTEM - General Characteristics ............................5 - Types of MDS systems ............................6 - The MDS systems based on the type of call ...................... 13 - Combinations of MDS systems .......................... 20 Page 3... - Page 4 Page 4...
-
Page 5: Mds System

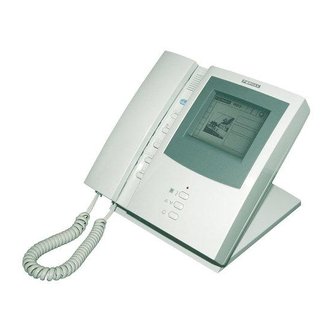

MDS SYSTEM MDS (MULTIPLEXED DATA SYSTEM) is the name we give to this easy to install digital door entry and video door entry system, designed by FERMAX ELECTRONICA, which allows the user manage buildings and residential complexes without any size limit and incorporating all communal services:... -
Page 6: Types Of Mds Systems
Types of MDS systems We can distinguish 3 types of MDS system: Digital, Direct and City which basically differ in terms of their: a) Central Unit. b) Type of Entry Panel c) Capacity to manage residences and access points. d) Additional functionsincorporated: Access, Security, Automation and Lift Control. - Page 7 Fermax supplies a series of specially designed CABLES specially designed for MDS systems. The Fermax cables Ref. 5918 and Ref. 5919 are suitable for distances of up to 300 metres. For greater distances, see the sections recommended in the above table.
- Page 8 In terms of capacity and functions this system comes between the MDS Digital system (the most comprehensive) and the MDS City system. This system can work in General Entrances or Interior Blocks. Recommended for both independent buildings and medium sized residential complexes combined with other systems (MDS City or ADS).
- Page 9 Fermax supplies a series of specially designed CABLES specially designed for MDS systems. The Fermax cables Ref. 5918 and Ref. 5919 are suitable for distances of up to 300 metres. For greater distances, see the sections recommended in the above table.
- Page 10 In terms of capacity and functions this system comes between the MDS Digital system (the most comprehensive) and the MDS Direct system (medium). This system CANNOT be used in General Entrances. It can be used in Interior Blocks combined with MDS Digital or MDS Direct General Entrances. It is recommended both for independent buildings and for interior blocks in small and medium sized residential complexes, in which for aesthetic reasons, button panels are preferred.
- Page 11 Fermax supplies a series of specially designed CABLES specially designed for MDS systems. The Fermax cables Ref. 5918 and Ref. 5919 are suitable for distances of up to 300 metres. For greater distances, see the sections recommended in the above table.
- Page 12 MDS Systems Summary Table MDS DIGIT MDS DIGIT MDS DIGIT MDS DIGIT MDS DIGITAL AL AL MDS DIRECT MDS DIRECT MDS DIRECT MDS DIRECT MDS DIRECT MDS CITY MDS CITY MDS CITY MDS CITY MDS CITY Requires Central Unit (CU)
-
Page 13: The Mds Systems Based On The Type Of Call
MDS CITY. System with MDS City Panels: Button Panels. In the case of the City panels, each button corresponds to a particular MDS address, which means that a call can be made to a residence by pressing the corresponding call button. - Page 14 Examples of Calls Prior Considerations Decoder Programming: In all MDS systems, each residential terminal is connected to a DECODER output, (a residential telephone/monitor is connected to each of the decoder outputs). The decoder outputs must be programmed with a 4 digit code, which ranges from 0001 to 9999, this address identifies each of the residences in the building.
- Page 15 * Residential Complex (MDS Digital GE- MDS Digital IB) REF. 2425 TELEFONOS 2 3 6 Panel installed in: System Chosen: REF. 2425 TELEFONOS 2 3 6 LCD DIGITAL SYSTEM General Entrance MDS Digital LCD DIGITAL SYSTEM LCD DIGITAL SYSTEM LCD DIGITAL SYSTEM...
- Page 16 There are 2 types of call combinations in these type of systems: First combination: * LONG Call (6 digits) in the General Entrance. * SHORT Call (4 digits) in the Interior Block. Calls from the GENERAL ENTRANCE - Call residence 0027 in Block 1 - Call residence 0058 in Block 12 Press: 1 0 0...
- Page 17 Example of a call from an MDS Direct system. * Individual Block (40 Residences) Decoder Programming: From: 1 to 40. REF. 2425 TELEFONOS 2 3 6 MDS Address 0027 Residence 27 LCD DIGITAL SYSTEM JK L WXYZ LCD DIGITAL SYSTEM LCD DIGITAL SYSTEM REF.
- Page 18 * Residential Complex (MDS Direct GE- MDS Direct IB) REF. 2425 TELEFONOS Panel installed in: System Chosen: 2 3 6 REF. 2425 TELEFONOS 2 3 6 MDS Direct General Entrance LCD DIGITAL SYSTEM LCD DIGITAL SYSTEM LCD DIGITAL SYSTEM LCD DIGITAL SYSTEM...
- Page 19 Note: The entry panels used in the MDS City system are standard City Line 4+N panels to which a recess is added where the MDS Digitiser Module is installed. The call extension modules are used as intermediary points between the 4+N buttons and the MDS system.
-
Page 20: Combinations Of Mds Systems
Combinations of MDS systems The great flexibility of the MDS system allows different types of existing MDS systems to be combined in the one system (development, residential or industrial complex, etc). For example, MDS Digital panels in the general entrances and MDS Direct or City panels in the interior blocks. - Page 21 Example of a call from system. MDS Digital - MDS Direct * Residential Complex (MDS Digital GE- MDS Digital IB) REF. 2425 TELEFONOS 2 3 6 REF. 2425 TELEFONOS 2 3 6 Panel installed in: System Chosen: LCD DIGITAL SYSTEM...
- Page 22 Example of a call from system. MDS Digital - MDS City * Residential Complex REF. 2425 TELEFONOS 2 3 6 REF. 2425 TELEFONOS 2 3 6 Panel installed in: System Chosen: LCD DIGITAL SYSTEM LCD DIGITAL SYSTEM LCD DIGITAL SYSTEM...
- Page 23 Example of a call from system. MDS Direct - MDS City * Residential Complex (MDS Direct GE- MDS City IB) REF. 2425 TELEFONOS 2 3 6 REF. 2425 TELEFONOS 2 3 6 System Chosen: LCD DIGITAL SYSTEM Panel installed in:...
