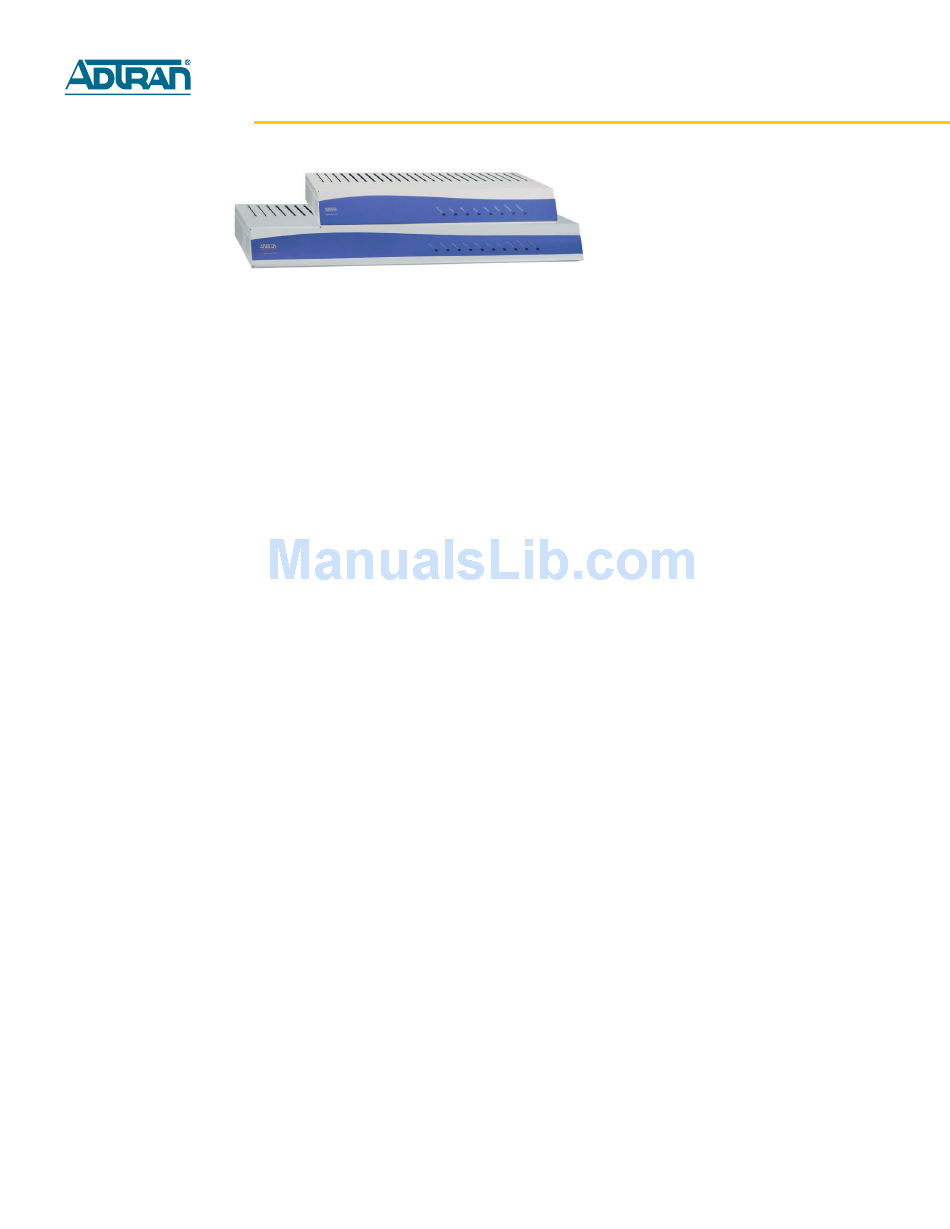

Product Specifications; Physical Interfaces - ADTRAN Total Access 904 Specifications

Total Access
IP Business Gateways

Product Specifications

Physical Interfaces

WAN
Single T1/FT1 (900 Series)
■
Quad T1/FT1 (900e Series)
■
Single Ethernet (900 Series)
■
Dual Ethernet (900e Series)
■
ADSL/ADLS2+ (Annex A) (904 and 908 only)
■
RJ-48C
■
LAN
Single auto-sensing 10/100Base-T (900 Series)
■
Dual auto-sensing 10/100Base-T (900e Series)
■
Full duplex
■
RJ-45
■
May also be used as the WAN interface
■
Supports 802.1q VLAN trunking
■
Digital Voice
RJ-48C
■
T1 CAS support
■
PRI
■
Signaling Methods
■
E&M Wink E&M Immediate
❏ ❏
Analog Voice
4, 8, 12, 16, and 24 FXS POTS via 50-pin amphenol
■
68.5 Vrms with 20VDC offset maximum ring voltage
■
Sinusoidal ringer waveform
■
48 V, nominal on-hook battery voltage
■
30 mA, nominal loop current
■
FXS 2-wire impedances
■
600 Ω 900 Ω
❏ ❏
600 Ω+2.16µF 900 Ω+2.16µF
❏ ❏
FXO 2-wire impedances
■
600 Ω+2.16µF 900 Ω+2.16µF
❏ ❏
Integral FXO (900e Series)
■
Signaling Methods
■
Loop Start Ground Start
❏ ❏
Craft
DB-9
■
Processor and Memory
RAM: 64 Mb RAM (TA900)
■
128 Mb RAM (TA900e)
Flash: 32 Mb Flash
■
VoIP Protocol
SIP
■
MGCP (FXS interfaces only)
■
900/900e Series
®
Packet-based Voice Resources
CODECs
■
❏
G.168 Echo Cancellation
■
Up to 64ms Echo-tail length
■
Supports up to 30 channels (900 Series), 60 channels
■
(900e Series)
Supports T.38 sessions
■
Media Stream
RTP/UDP/IP (RFC 3550)
■
RTP payload for DTMF digits (RFC 2833)
■
Supports port-to-port hairpin call
■
SDP (RFC 2327)
■
NAT Traversal and Remote Survivability
B2BUA
■
SIP transparent proxy with survivability
■
Tone Services
Local DTMF Detection
■
Local Tone Generation
■
❏
❏
❏
Feature Group D
❏
Ringing
■
❏
Calling Feature Support
(varies with feature server/gateway)
Caller ID
■
❏
❏
Voice Mail
■
❏
❏
Call Hold
■
Call Forward
■
❏
Call Transfer
■
DPT
❏
❏
Call Waiting
■
Distinctive Ring
■
Do Not Disturb
■
Three-way Calling
■
Call Return
■
Speed Dial
■
3-way Conferencing (3WC)
■
G.711-64k PCM G.729a-8k CS-ACELP
❏
SIP Registrar for IP phones
■
Dialtone Busy
❏
Call Waiting Alternate Call Waiting
❏
Receiver Off Hook
Distinctive Ring
Name and Number (MDMF, SDMF)
Call Waiting IAD
Stutter dialtone
Visual Message Waiting Indicator (VMWI)
Busy Line No Answer
❏
Blind, Attended
