TriangleTube PSRKIT80 Quick Start Manual

PRESTIGE Venturi
Replacement Kit

Kit Part Number:

PSRKIT80 (PS 60)
PSRKIT81 (PS 110 / PE 110)
PSRKIT82 (PS 175)
PSRKIT83 (PS 250)

Parts List (Fig.1)

1 - Venturi Mounting Gasket
2 - #25 Torx Wrench (not shown)
3 - (2) M5 x 12 Screws
4 - Venturi

Recommended Tools:

- Phillips Screwdriver
- Flat Blade Putty Knife
W RNING
Indicates a potentially hazardous situation
which, if ignored, can result in serious
injury or substantial property damage.
W RNING
For your safety, turn off electrical power
supply at service panel before proceeding to
avoid possible electrical shock hazard.
Failure to do so can cause severe personal
injury or death.
W RNING
For your safety, the boiler may be extremely
hot. Ensure the boiler has properly cool prior
to servicing. Failure to do so can cause severe
personal injury.
3

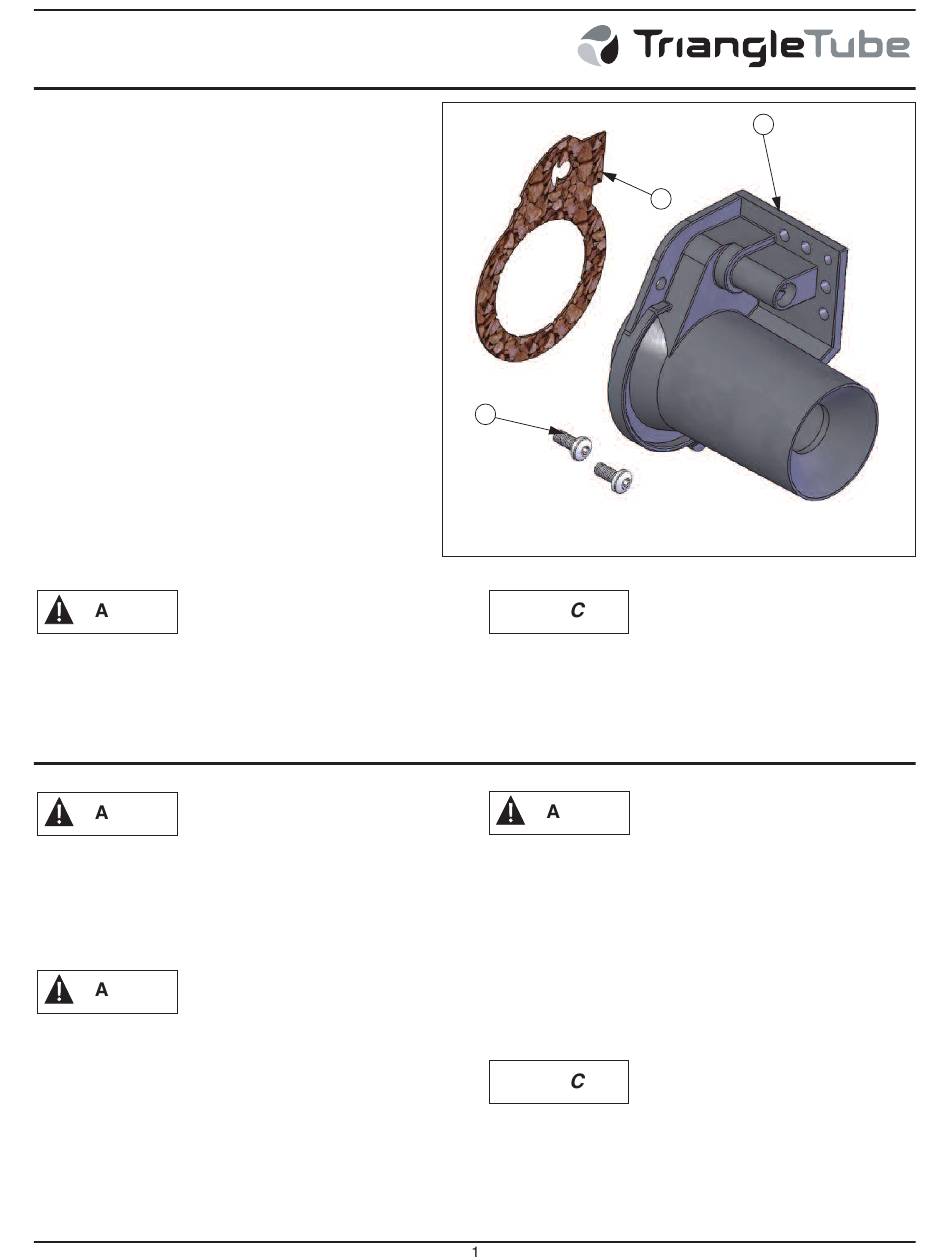

Fig. 1: Kit Components
NOTI E
Indicates special instructions on installa-
tion, operation or maintenance, which are
important to equipment but not related to
personal injury hazards.
W RNING
Failure to follow instructions below can
result in severe personal injury or damage if
ignored.
• Instructions are for a qualified installer/
service technician.
• Read all instructions before proceeding.
• Follow instructions in proper order.
NOTI E
For appropriate venturi size to PRESTIGE
Model, Reference Table 1 on page 3. The
venturi size is listed on the label affixed to
the venturi and is imprinted on the black
venturi cone.
4
