PRESTIGE
Wall Frame Kit Instructions
Kit Part Number:
Parts List (Fig.1)
1. Long Strut (2 pcs)
2. Short Strut (2 pcs)
3. Gusset Assembly with T-Bolts (4 pcs)
4. Wall Mounting Bracket (4 pcs)
5. T-Bolt Assembly (12 pcs)
6. End Cap (4 pcs)
7. T-Block (2 pcs)
8. Mounting Bolt (2 pcs)
Recommended Tools:
- 1/2" Socket & Ratchet
- Tape Measure
Dimensions (when assembled):
- 59" High
- 25 1/2" Wide
- 1 3/4" Deep
WARNING
Indicates a potentially hazardous situation
which, if ignored, can result in serious
injury or substantial property damage.
WARNING
Failure to follow instructions below can
result in severe personal injury or damage if
ignored.
•
Instructions are for a qualified installer/
service technician.
•
Read all instructions before proceeding.
•
Follow instructions in proper order.
PSSTND02

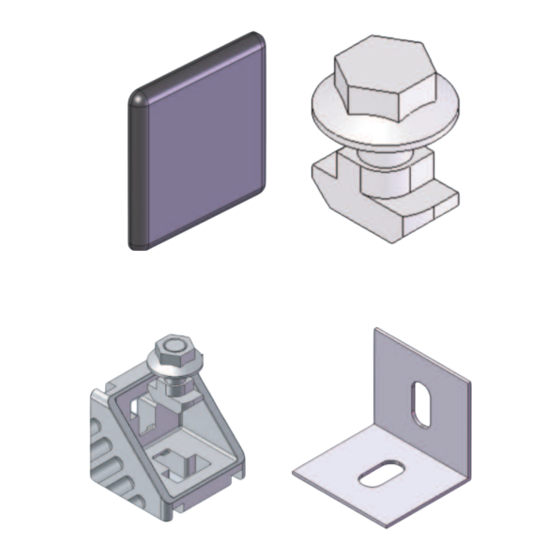

End Cap
T-Bolt
(2 each)
Gusset
Gusset Assembly
NOTICE
Indicates special instructions on installa-
tion, operation or maintenance, which are
important to equipment but not related to
personal injury hazards.
T-Block with Mounting
Bracket Bolt
Wall Mounting Bracket
