Gas Valve Replacement Kit
Prestige Solo 399
Kit Part Number: PSRKIT41

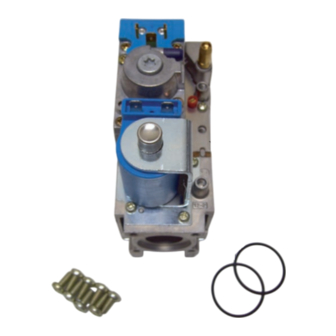

Parts List (Fig. 1)
1. Honeywell Gas Valve VR8615VB
2. Gas Valve/Supply Pipe O-ring
3. Gas Valve/Outlet Pipe O-ring
4. (8) - M5 Phillips Head Screws.
Recommended Tools:
1. Adjustable Wrench.
2. Phillips Head Screwdriver
3. Small Flat Head Screwdriver
WARNING
Indicates a potentially hazardous situation
which, if ignored, can result in serious
injury or substantial property damage.
WARNING
Failure to follow instructions below can result
in severe personal injury or damage if ignored.
•
Instructions are for a qualified installer/ser-
vice technician.
•
Read all instructions before proceeding.
•
Follow instructions in proper order.
WARNING
For your safety, turn off electrical power
supply at service panel before proceeding to
avoid possible electrical shock hazard.
Failure to do so can cause severe personal
injury or death.
4

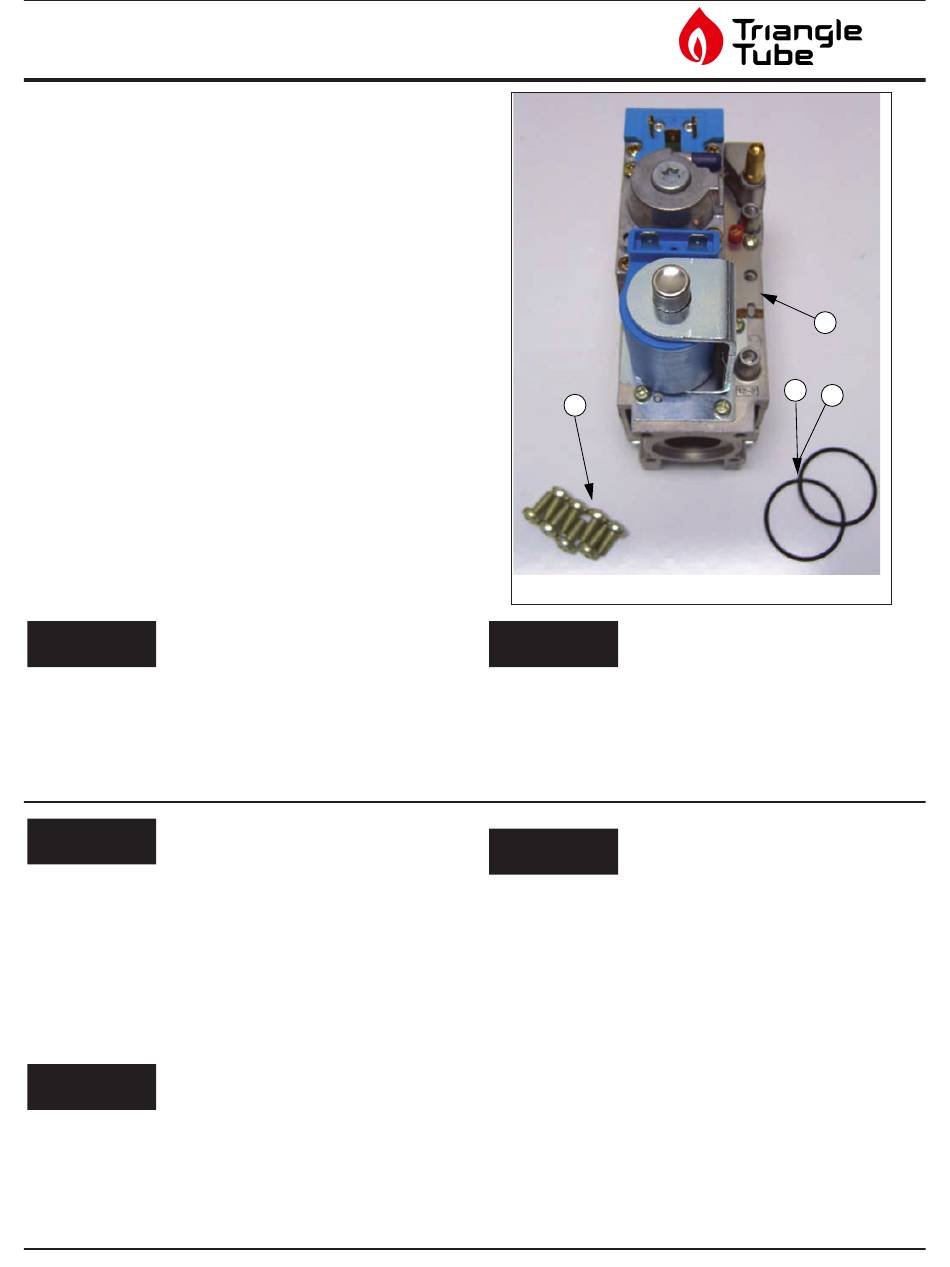

Fig. 1: Gas Valve Kit
NOTICE
Indicates special instructions on installa-
tion, operation or maintenance, which are
important to equipment but not related to
personal injury hazards.
NOTICE
This kit is designed for gas valve replace-
ment on the Prestige Solo 399 only.
