Venturi Replacement Kit
for PRESTIGE 399
Kit Part Number:

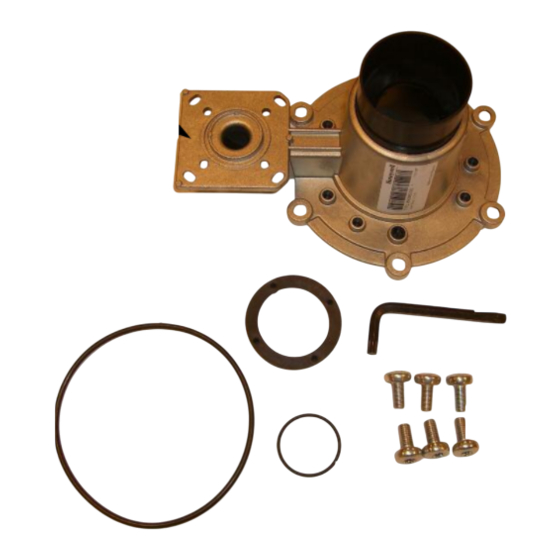

Parts Kit (Fig. 1):
1 - Venturi 001 Blower O-Ring Gasket
2 - (6) T-40 M8 Screws
3 - T-40 Torx Wrench
5 - Venturi
6. Gas Pipe/Venturi Gasket
Recommended Tools:
1. Phillips Screwdriver
2. Flat Blade Putty Knife
3. 10mm Socket and/or 10mm Wrench
and/or Adjustable Wrench
W RNING
Indicates a potentially hazardous situation
which, if ignored, can result in serious
injury or substantial property damage.
W RNING
For your safety, the boiler may be extremely
hot. Ensure the boiler has properly cool prior
to servicing. Failure to do so can cause severe
personal injury.
PSRKIT84
5
6
1

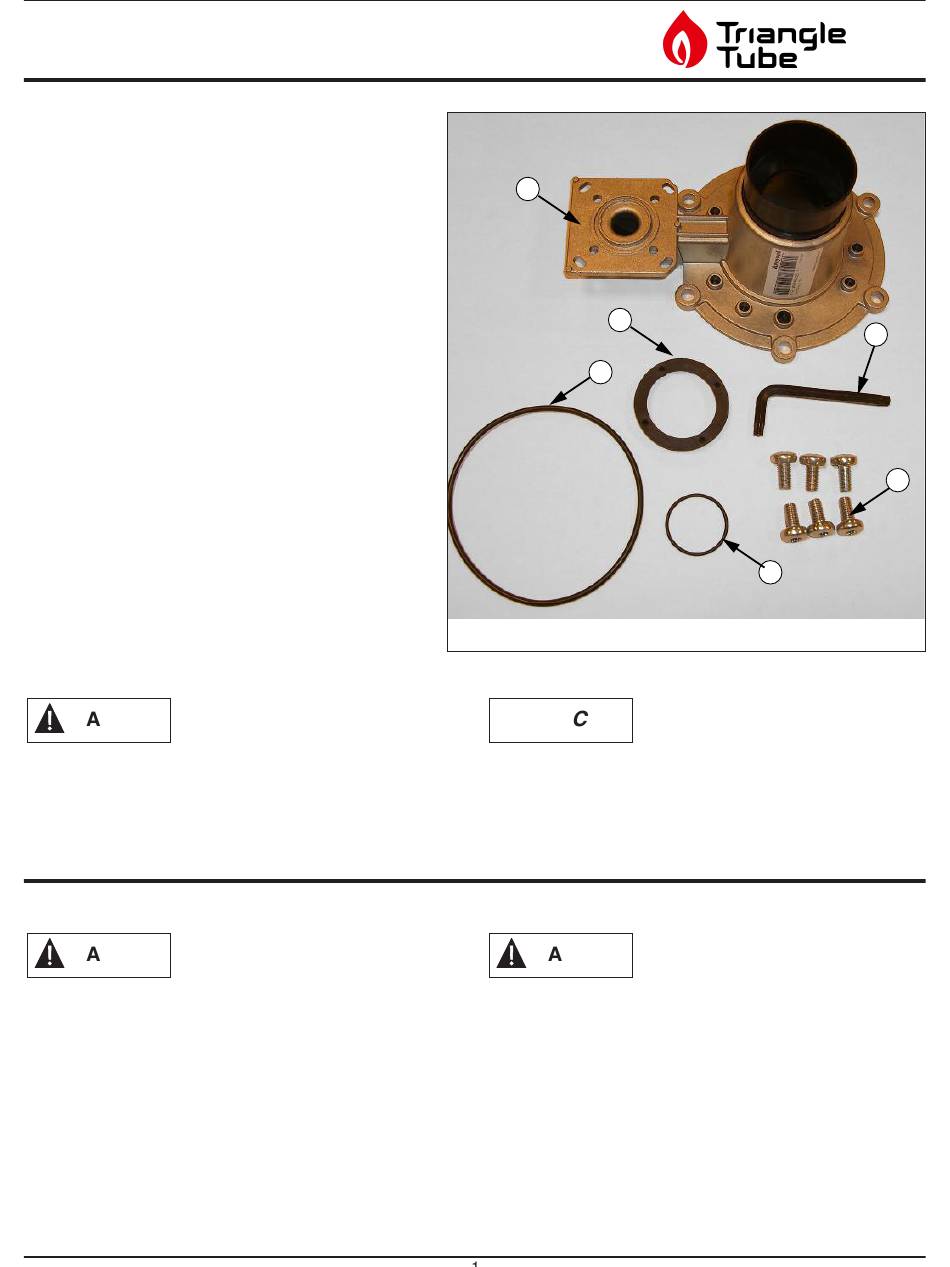

Fig. 1: Kit Components
NOTI E
Indicates special instructions on installa-
tion, operation or maintenance, which are
important to equipment but not related to
personal injury hazards.
W RNING
Failure to follow instructions below can
result in severe personal injury or damage if
ignored.
•
Instructions are for a qualified installer/
service technician.
•
Read all instructions before proceeding.
•
Follow instructions in proper order.
3
2
4
