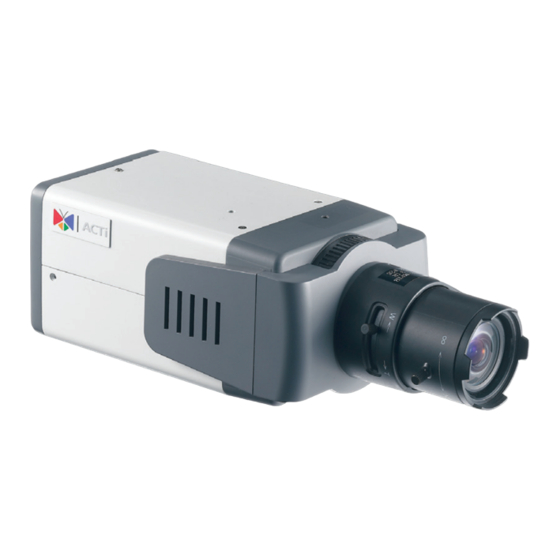

ACTi TCM-5311 User Manual

H.264 megapixel ip d/n poe ccd box camera
Hide thumbs Also See for TCM-5311:
Table of Contents

Advertisement

Quick Links

Download this manual
TCM-5311
H.264 Megapixel IP D/N PoE CCD Box
Camera
(DC 12V / PoE)
Ver. 2010/10/22

Advertisement

Table of Contents
loading

Related Manuals for ACTi TCM-5311

Summary of Contents for ACTi TCM-5311

  • Page 1 TCM-5311 H.264 Megapixel IP D/N PoE CCD Box Camera (DC 12V / PoE) Ver. 2010/10/22...

  • Page 2: Table Of Contents

    TCM-5311 Hardware User’s Manual Table of Contents Precautions Introduction Package Contents ................4 Features and Benefits ............... 5 Safety Instructions ................7 Physical description ................9 Basic Connections ................12 Product Specification ..............13 Accessing Camera If you have DHCP server / router in your network: ...... 14 If you do NOT have DHCP server / router in your network: ..

  • Page 3: Precautions

    TCM-5311 Hardware User’s Manual 0. Precautions Read these instructions You should read all the safety and operating instructions before using this product. Heed all warnings You must adhere to all the warnings on the product and in the instruction manual. Failure to follow the safety instruction given may directly endanger people, cause damage to the system or to other equipment.

  • Page 4: Introduction

    TCM-5311 Hardware User’s Manual 1. Introduction Package Contents TCM-5311 Power Adaptor (Optional) Product CD Terminal Blocks for Power & DI/O Warranty Card Accessory *For the mounting block, please attach it flat side to the front. There are two types of mounting blocks, and this device uses the black version.

  • Page 5: Features And Benefits

    TCM-5311 Hardware User’s Manual Features and Benefits This is a cutting-edge digital video surveillance camera. It can compress and transmit real time images with outstanding image quality (15 FPS @ SXGA, 1280 x 960) through a standard TCP/IP network. This camera is your best choice to build an intelligent IP surveillance system.
  • Page 6 TCM-5311 Hardware User’s Manual Digital Time Code Embedded The “Digital Time Code Embedded” function records video time in the video stream. Therefore, each image frame is marked with its original recording time. It is very useful when users want to find the video at an exact time or between a certain time intervals.

  • Page 7: Safety Instructions

    TCM-5311 Hardware User’s Manual Safety Instructions Don’t use the power supply with other voltages This device is likely to be damaged or damage other equipments / personnel, if you use a power supply with different voltage than the one included with this device. All warranty of this product will be voided in the situations above.
  • Page 8 TCM-5311 Hardware User’s Manual this manual. Adjust only those controls that are covered by the instruction manual, as an improper adjustment of other controls may result in damage, and will often require extensive work by a qualified technician to restore the video product to its normal operation.

  • Page 9: Physical Description

    TCM-5311 Hardware User’s Manual Physical description 1) DC Iris DC Iris Lens Control Port 2) Ethernet Port The IP device connects to the Ethernet via a standard RJ45 connector. Supporting NWAY, this IP device can auto detect the speed of local network segment (10Base-T/100Base-TX Ethernet).
  • Page 10 TCM-5311 Hardware User’s Manual Step 3: Reconnect the power cable while continuing to hold the reset button. The red Power LED light will flash on for 3 second first, turn off for about 15 seconds, flash on for another second and turn off again. By this time the reset to default operation is already completed.
  • Page 11 TCM-5311 Hardware User’s Manual Pin 2 Auxiliary DC Electrically connected in parallel with the con- Voltage: 12V DC, Power input nector for the power supply, this pin provides Max: 1.2W (not to power an auxiliary connector for mains power to the this camera) unit.

  • Page 12: Basic Connections

    TCM-5311 Hardware User’s Manual Basic Connections Follow the procedures below to connect the IP device to the respective apparatuses. If you have a PoE(Power over Ethernet) supported switch or injector: 1) Connect your IP Box Camera to the Switch / Injector by CAT5 or CAT6 cables with RJ45 connector.

  • Page 13: Product Specification

    TCM-5311 Hardware User’s Manual Product Specification TCM-5311 Device Type Box Camera Image Sensor Sony Exview HAD Progressive Scan CCD Sensor Size 1/3" (4.8 x 3.6 mm) Horizontal Resolution 900 TVL Day / Night Color: 0.15Lux at F1.2 (30 IRE, Max. AGC)

  • Page 14: Accessing Camera

    TCM-5311 Hardware User’s Manual 2. Accessing Camera If you have DHCP server / router in your network: Many network server / routers are able to automatically provide IP addresses through DHCP. If you are using such a network, just plug in your computer and IP Box Cam into the network and your IP device will acquire network address by itself.
  • Page 15 TCM-5311 Hardware User’s Manual Please set the settings as below.   IP address: 192.168. 0.xxx  Subnet mask: 255.255.255. (NOTE: xxx should be a number from 1 to 254 except 100, which is used by the IP device. Please also...
  • Page 16 TCM-5311 Hardware User’s Manual If you are using a single camera, this is enough to access the device. If you are using multiple devices, you need to change the current device to another unused IP address, so that when the next device is connected to the network, no two devices use the same IP.
  • Page 17 TCM-5311 Hardware User’s Manual 10. Click “Apply” 11. Please go to Maintain -> Save & Reboot, and click ”Apply”. Internet Explorer will close after a few seconds. This is normal. 12. Wait for 30 seconds, and open IE again to connect to the IP.
  • Page 18 TCM-5311 Hardware User’s Manual www.acti.com...
