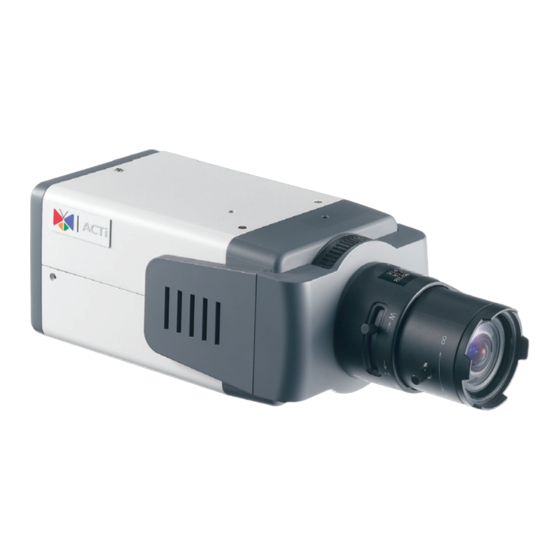

ACTi TCM-5311 Hardware User Manual
Megapixel ip camera h.264 with dc 12v / poe / ac24v tcm-5300 series
Hide thumbs
Also See for TCM-5311:
- Specifications (2 pages) ,
- User manual (18 pages) ,
- Configuration note (7 pages)
Table of Contents
Advertisement
Quick Links
Download this manual
See also:
User Manual
Advertisement
Table of Contents
Related Manuals for ACTi TCM-5311
Summary of Contents for ACTi TCM-5311
- Page 1 H.264 Megapixel IP Camera (with DC 12V / PoE / AC24V) TCM-5300 series Ver. 091021 Hardware User’s Manual...
-
Page 2: Trademarks
PRECAUTIONS Read these instructions You should read all the safety and operating instructions before using this product. Heed all warnings You must adhere to all the warnings on the product and in the instruction manual. This symbol highlights several areas of concern. Please read descriptions next to each symbol carefully. - Page 3 equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
-
Page 4: Table Of Contents
Table of Contents 0 PRECAUTIONS________________________________________________ 0-1 Trademarks ________________________________________________________________ 0-1 Liability ___________________________________________________________________ 0-1 FCC/CE Regulation __________________________________________________________ 0-1 1 INTRODUCTION ______________________________________________ 1-1 Package Contents _______________________________________________ 1-1 Features and Benefits ____________________________________________ 1-2 Safety Instructions ______________________________________________ 1-4 ... -
Page 5: Introduction
INTRODUCTION 1.1 Package Contents TCM-5300 Series Power Adaptor (Optional) (DC12V / PoE / AC24V) Product CD Terminal Blocks for Power & DI/O Warranty Card Accessory... -
Page 6: Features And Benefits
1.2 Features and Benefits This IP device is a cutting-edge digital video transmission device. It can compress and transmit real time images with outstanding images quality (SXGA, 1280x960) at reasonable bandwidth through a standard TCP/IP network. That is because it is Ethernet ready and has the powerful ARM9 SoC with excellent system performance to offer dual streams of H.264/MPEG4/MJPEG, and all three formats offer megapixel resolution. - Page 7 To extend the capabilities of the IP Box Camera series, a powerful surveillance program is included in the package and is very free to use. Users can easily utilize the existing PC to be a digital video recorder. Schedule recording and manual recording keep every important image recorded in the local hard disk.
-
Page 8: Safety Instructions
1.3 Safety Instructions Don’t use the power supply with other voltages This device is likely to be damaged or damage other equipments / personnel, if you use a power supply with different voltage than the one included with this device. All warranty of this product will be voided in the situations above. - Page 9 Other controls may result in damage and will often require extensive work by a qualified technician to restore the video product to its normal operation. Safety Check Upon completion of any service or repairs to this video product, ask the service technician to perform safety checks to determine that the video product is in proper operating condition.
-
Page 10: Physical Description
1.4 Physical Description DC Iris DC Iris Lens Control Port Ethernet Port The IP device connects to the Ethernet via a standard RJ45 connector. Supporting NWAY, this IP device can auto detect the speed of local network segment (10Base-T/100Base-TX Ethernet). Power Input Connect the power adaptor here if your power input is DC12V. - Page 11 Step 3: Keep holding the reset button depressed around 12 seconds, release the reset button. The unit will start up with factory default settings. Audio Input / Output The IP device supports audio input and output with earphone jack Digital Input / Output Used in applications like motion detection, event triggering, time lapse recording, alarm notifications, etc., the I/O terminal connector provides the interface to:...
- Page 12 The I/O terminal pins are numbered left to right, as shown below. Connect input/output devices to the camera as follows: 1. Attach the cables for the device securely to the supplied green connector block. 2. Once the cables are connected, push the connector block into the terminal connector (also green) on the camera.
-
Page 13: Basic Connections
1.5 Basic Connections Follow the procedures below to connect the IP device to the respective apparatuses. If you have a PoE(Power over Ethernet) supported switch or injector: Connect your IP Box Camera to the Switch / Injector by CAT5 or CAT6 cables with RJ45 connector. -
Page 14: Installation Procedure
1.6 Installation Procedure Regarding Back focus adjustment, please download our support document here 1.7 Product Specification...
