Eaton A201 Instruction Leaflet

Instruction Leaflet IL16960
A201, A211, A251, Size 00, 0 or 1 Magnetic
Contactor Nonreversing or Reversing

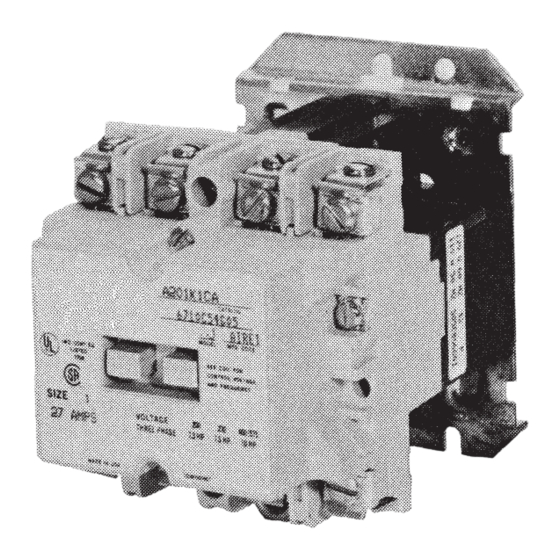

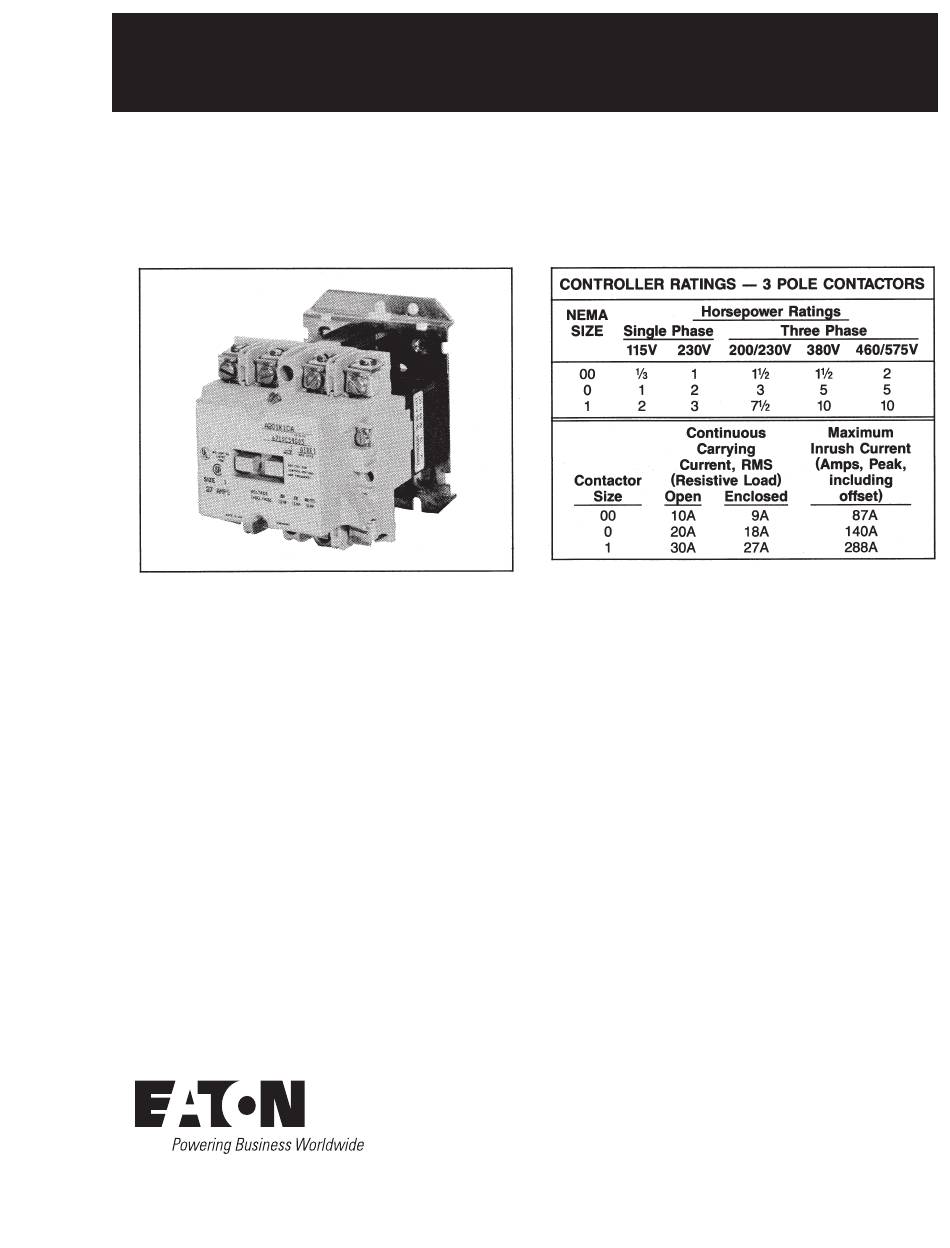

Figure 1. Fig. 1 Size 1, A201 Nonreversing Contactor
THE CONTACTOR
Class A201 contactors are designed for the control of
inductive or non-inductive loads at voltages between 120 and
600, AC. The units are suitable for mounting on either steel
or insulated panels. All parts are front removable. Contactors
should be protected against short circuits by branch circuit
protective devices selected in accordance with the National
Electrical Code (NEC).
Effective May 2011
Supersedes March 1989
Two-pole contactors have the same current ratings as three-
pole devices but are not suitable for controlling three-phase
motors.
This industrial type control is designed to be installed,
operated, and maintained by adequately trained workmen.
These instructions do not cover all details, variations,
or combination of the equipment, its storage, delivery,
installation, check out, safe operation, or maintenance. Care
must be exercised to comply with local, state, and national
regulations, as well as safety practices, for this class of
equipment.
