Eaton A200 Instruction Leaflet

Instruction Leafl et IL17000
A200 Size 4, 3 Pole
Motor Controller

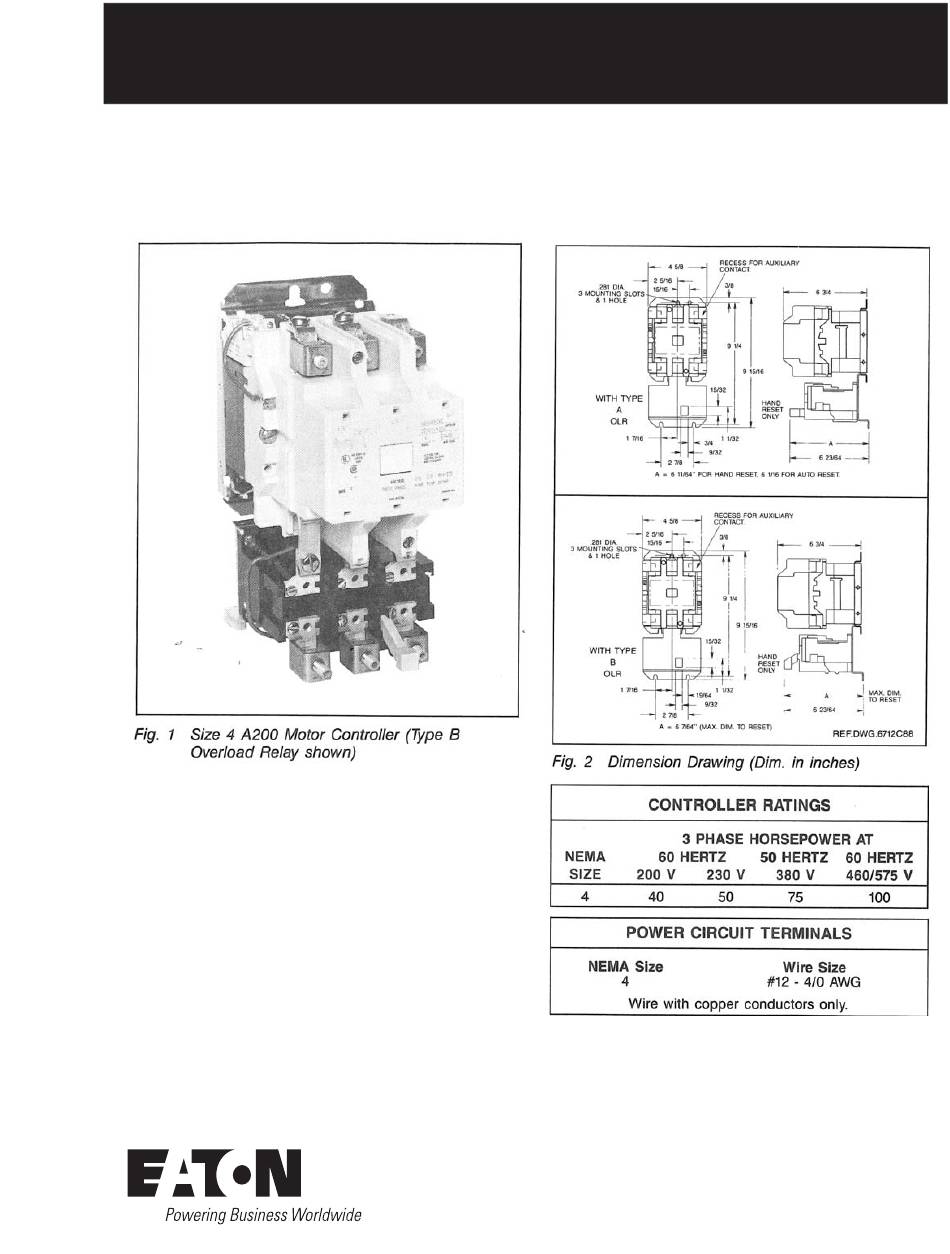

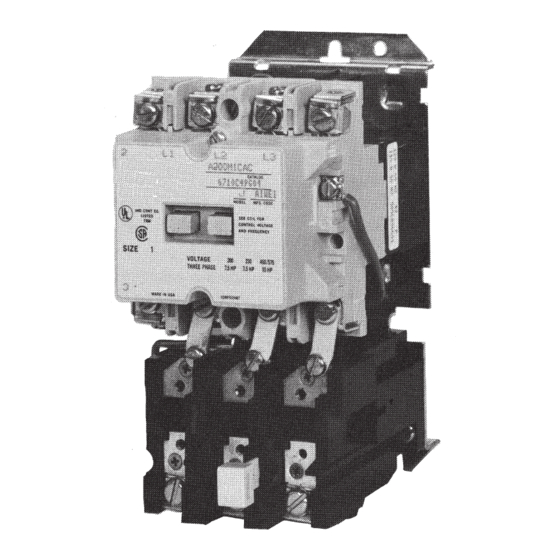

THE CONTROLLER
The A200 motor controller, when wired as shown in Figures
5 and 6, will operate as a full voltage starter and will give
protection against overload, but not against short circuit
currents, when wired and provided with overload relay (OlR)
heaters as listed in heater selection tables or when used
with any means of inherent protection activated by motor
temperature.
The controller should be protected against short circuits
by providing branch circuit protection not to exceed the
maximum protective device ratings listed in Table I.
This industrial type control is designed to be installed,
operated, and maintained by adequately trained workmen.
These instructions do not cover all details, variations,
or combinations of the equipment, its storage, delivery,
installation, check out, safe operation, or maintenance. Care
must be exercised to comply with local, state, and national
regulations, as well as safety practices, for this class of
equipment.
Effective May 2011
Supersedes January 1994
AUXILIARY CONTACTS - TYPE J
A J20 with two normally open poles is supplied mounted
in the upper left hand corner recess of the contactor. One
pole is used as the holding circuit auxiliary.
