Thank you for purchasing our North Haven Queen bed. Assembly of this product requires a phillips screwdriver.
We have found it helpful to have a second person present in at least one step of the assembly.
1 of 4
1 of 4
North Haven Queen Bed
0GSX5082109
0GSX5082109
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for L.L.Bean North Haven Queen Bed
Summary of Contents for L.L.Bean North Haven Queen Bed

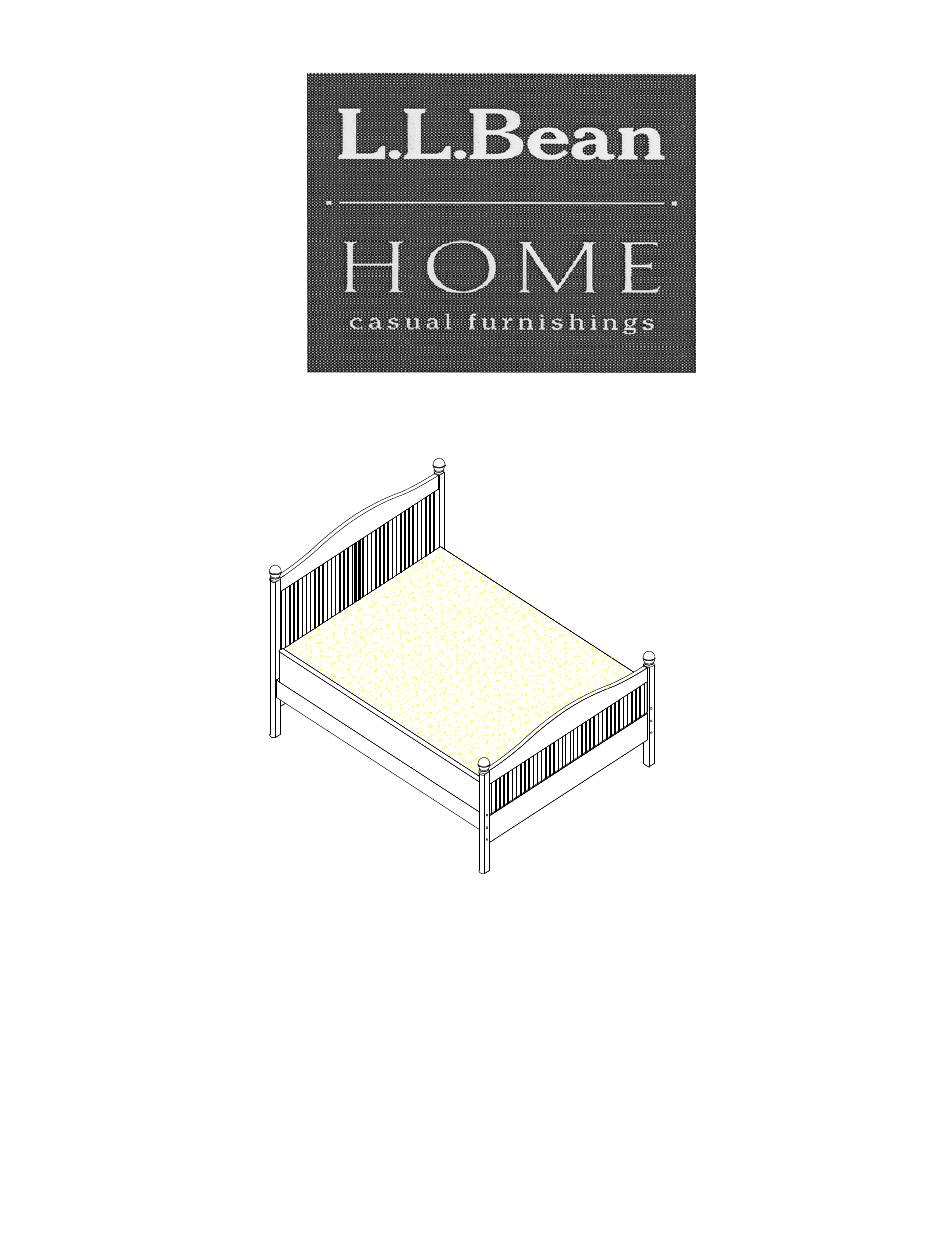

- Page 1 North Haven Queen Bed Thank you for purchasing our North Haven Queen bed. Assembly of this product requires a phillips screwdriver. We have found it helpful to have a second person present in at least one step of the assembly.
- Page 2 Lay out parts on a non-abrasive surface to avoid scratching finish. DESCRIPTION QTY. DRAWING DESCRIPTION QTY. DRAWING HEADBOARD HEX BOLTS FOOTBOARD BARREL NUTS SIDE RAILS HEX WRENCH SUPPORT BLOCK 30mm WOOD SCREWS BED SLATS LEVELER CENTER SUPPORT LEG MUSHROOM PLUGS CENTER SUPPORT RAIL 50mm WOOD SCREWS FINIALS...
- Page 3 STEP 4 Make sure the large counter-bored holes in the headboard (A) and footboard (B) are facing outside in order to insert the Hex Bolts (I). Insert the hex bolts (I) through two of the counter-bored holes in the posts of the heaadboard and place the barrel nuts (J) into the holes in the inside of the side rails (C).
- Page 4 STEP 6 Assembly of Center Support System for Queen size beds. Attach center support leg (F) to center support rail (G) by inserting hex bolt (J) through hole in support rail (G) into threaded insert in top of support leg (F). Tighten the hex bolt with the hex wrench (K).
