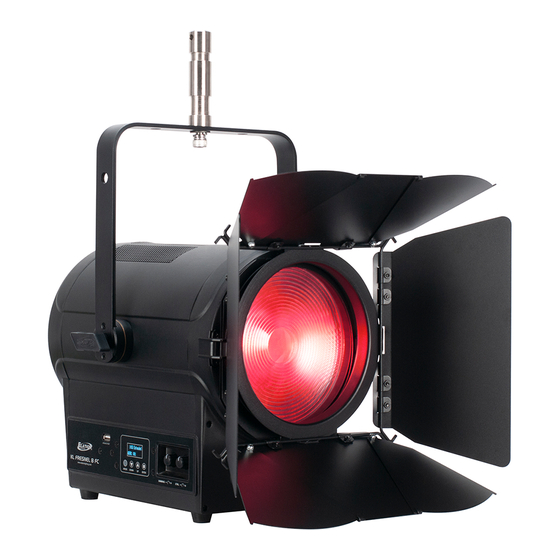

KL FRESNEL 8 FC
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KL FRESNEL 8 FC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Elation KL FRESNEL 8 FC

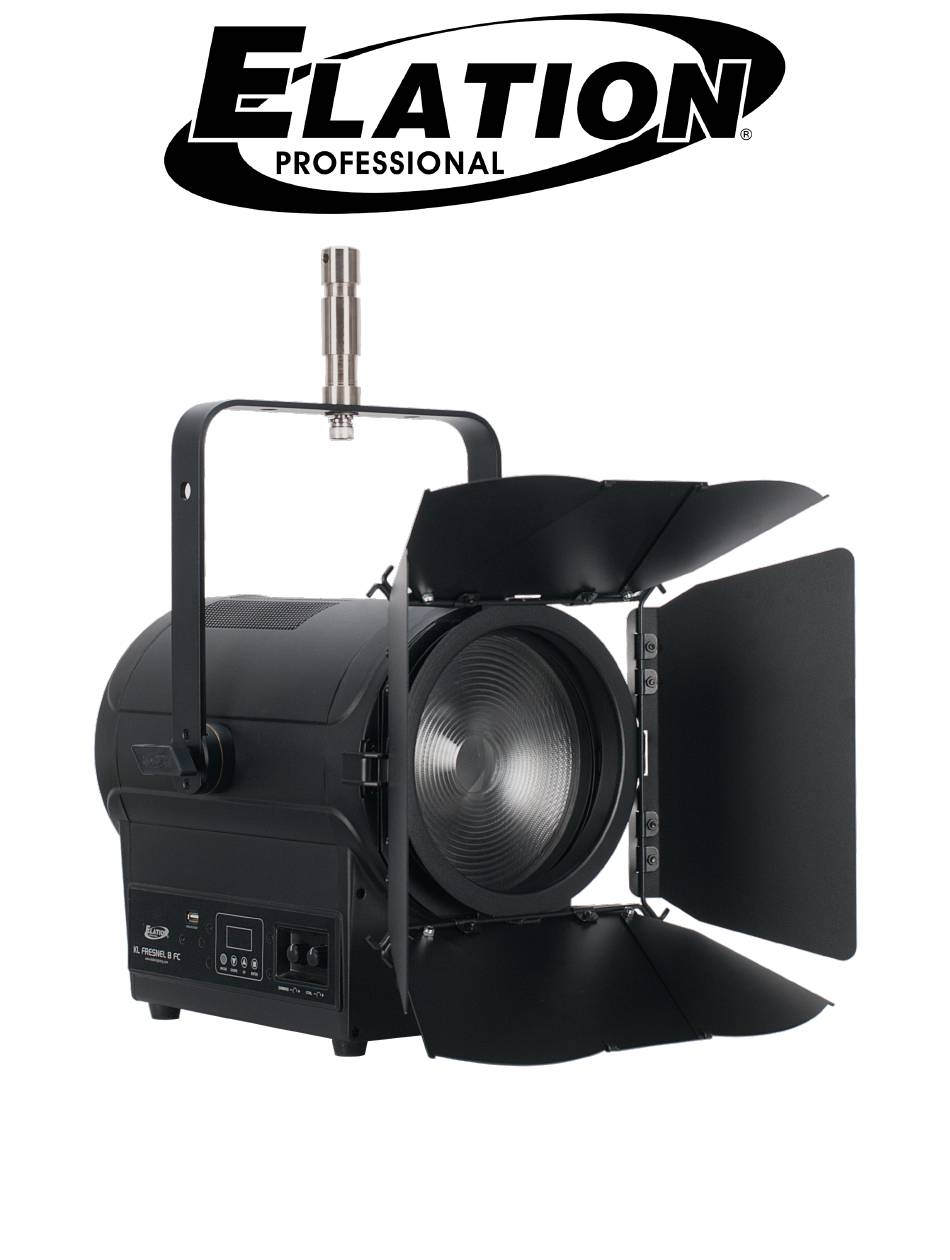

  • Page 1 KL FRESNEL 8 FC User Manual...
  • Page 2 +31 45 546 85 66 | +31 45 546 85 96 fax | www.elationlighting.eu info@elationlighting.eu Elation Professional Mexico | AV Santa Ana 30 | Parque Industrial Lerma, Lerma, Mexico 52000 +52 (728) 282-7070 DOCUMENT VERSION Due to additional product features and/or enhancements, an updated version of this document may be available online.
  • Page 3: Table Of Contents

    CONTENTS General Information Limited Warranty (USA Only) Safety Guidelines Maintenance Guidelines Fixture Overview Installation Guidelines System Menu Manual Dimming and Zoom Control DMX Channel Functions And Values Colors Specifications...
  • Page 4: General Information

    Gel Frame Power Cable CUSTOMER SUPPORT Contact ELATION Service for any product related service and support needs. Also visit forums.elationlighting.com with questions, comments or suggestions. ELATION SERVICE USA - Monday - Friday 8:00am to 4:30pm PST 323-582-3322 | Fax 323-832-9142 | support@elationlighting.com ELATION SERVICE EUROPE - Monday - Friday 08:30 to 17:00 CET +31 45 546 85 63 | Fax +31 45 546 85 96 | support@elationlighting.eu...
  • Page 5: Limited Warranty (Usa Only)

    It is the owner’s responsibility to establish the date and place of purchase by acceptable evidence, at the time service is sought. B. For warranty service, send the product only to the Elation Professional factory. All shipping charges must be pre-paid. If the requested repairs or service (including parts replacement) are within the terms of this warranty, Elation Professional will pay return shipping charges only to a designated point within the United States.
  • Page 6: Safety Guidelines

    This fixture is a sophisticated piece of electronic equipment. To guarantee a smooth operation, it is important to follow all instructions and guidelines in this manual. Elation Professional is not responsible for injury and/or damages resulting from the misuse of this fixture due to the disregard of the information printed in this manual.
  • Page 7 SAFETY GUIDELINES DO NOT TOUCH the fixture housing during operation. Turn OFF the power and allow approximately 15 minutes for the fixture to cool down before serving. DO NOT shake fixture, avoid brute force when installing and/or operating fixture. DO NOT operate fixture if the power cord is frayed, crimped, damaged and/or if any of the power cord connectors are damaged and do not insert into the fixture securely with ease.
  • Page 8: Maintenance Guidelines

    Regular inspections are recommended to insure proper function and extended life. There are no user serviceable parts inside this fixture, please refer all other service issues to an authorized Elation service technician. Should you need any spare parts, please order genuine parts from your local Elation dealer.
  • Page 9: Fixture Overview

    OVERVIEW 1. 3pin DMX In 2. 5pin DMX In 3. 5pin DMX Out 4. 3pin DMX Out 5. Power In 6. Power Out 7. USB Software Update Port 8. OLED Control Menu Display 9. MODE Button 10. UP Button 11. DOWN Button 12.
  • Page 10: Installation Guidelines

    INSTALLATION INSTRUCTIONS FLAMMABLE MATERIAL WARNING Keep fixture minimum 5.0 feet (1.5m) away from flammable materials and/or pyrotechnics. ELECTRICAL CONNECTIONS A qualified electrician should be used for all electrical connections and/or installations. USE CAUTION WHEN POWER LINKING OTHER MODEL FIXTURES AS THE POWER CONSUMPTION OF OTHER MODEL FIXTURES MAY EXCEED THE MAX POWER OUTPUT ON THIS FIXTURE.
  • Page 11 GEL FRAME AND BARN DOOR INSTALLATION The fixture has 2 slots on the front to hold the GEL FRAME and BARN DOOR. The first smaller slot is for the GEL FRAME and the second larger slot is for the BARN DOOR. The fixture also has a top lock that secures these accessories to the fixture.
  • Page 12 BOLT INSTALLATION (INCLUDED) This fixture includes an adjustable dual mounting yoke and safety cable rigging point attached to the fixture. When using the included 28mm Junior Pin, attach the pin with the included bolt using a 10mm Hex Key, and attach a SAFETY CABLE to the safety cable rigging point. CLAMP INSTALLATION (NOT INCLUDED) This fixture includes an adjustable dual mounting yoke and safety cable rigging point attached to the fixture.
  • Page 13: System Menu

    SYSTEM MENU The fixture includes an easy to navigate system menu. The control panel (see image below) located on the side of the fixture provides access to the main system menu and is where all necessary system adjustments are made to the fixture. During normal operation, pressing MODE button once will access the fixture’s main menu.
  • Page 14 SYSTEM MENU Features subject to change without notice OPTIONS / VALUES MAIN MENU SUB MENU DESCRIPTION (Default Settings in BOLD) Disabled, Dimmer, Int CCT Grn, MANUAL MODE See Manual Mode section for details Int Color Sat, Manual Control DMX Address 001 –...
  • Page 15 SYSTEM MENU Features subject to change without notice OPTIONS / VALUES MAIN MENU SUB MENU DESCRIPTION (Default Settings in BOLD) Life Time Last Run Time Time Reset (Passcode: 038) Current Max Resettable Temperatures Max Unresettable INFORMATION Reset (Passcode: 038) DMX Values Product ID’s Mac Address RDM UID...
  • Page 16 DIMMER CURVE MODES - Dim Curve Select desired DIMMER MODE (Standard, Stage, TV, Architectural, Theatre, Stage2).
  • Page 17: Manual Dimming And Zoom Control

    MANUAL DIMMING AND FUNCTION CONTROL Use the two encoder knobs for manual DIMMING and FUNCTION control. Press the CTRL knob to step/cycle through available sub-menu selections. DIMMER MODE ENCODER KNOB SUB MENU DISPLAY RESOLUTION / STEPS DEFAULT DIMMER Intensity Intensity 0-100% CTRL Zoom Zoom 0-100%...
  • Page 18: Dmx Channel Functions And Values

    DMX CHANNEL FUNCTIONS AND VALUES ELATION KL FRESNEL 8 FC DMX Channel Functions and Values (1/7/12/19/10/15 DMX Channels) Supports Software Versions: ≥ V1.0.2 Features subject to change without notice Dimmer Dimmer Standard Extended Value Function Default Snap Color Extended Dimmer:...
  • Page 19 Supports Software Versions: ≥ V1.0.2 Features subject to change without notice Dimmer Dimmer Standard Extended Value Function Default Snap Color Extended CTO: 0-23 Open CTO 2400K - 8500K 24-85 (see separate sheet) 86-255 8500K Color Wheel: Open Virtual Swatch Book 1-179 (see separate sheet) Color Scroll...
  • Page 20 Supports Software Versions: ≥ V1.0.2 Features subject to change without notice Dimmer Dimmer Standard Extended Value Function Default Snap Color Extended Control: 0-29 Idle 30-39 Fan Mode Auto 40-49 Fan Mode Silent 50-59 Fan Mode High 80-99 Idle 100-168 Refresh Rate (Hz) 1000 1010 1020...
  • Page 21 Supports Software Versions: ≥ V1.0.2 Features subject to change without notice Dimmer Dimmer Standard Extended Value Function Default Snap Color Extended 1240 1250 1260 1270 1280 1290 1300 1310 1320 1330 1340 1350 1360 1370 1380 1390 1400 1410 1420 1430 1440 1450...
  • Page 22: Colors

    Full Minus Green to Neutral Yellow 2700K – 8500K Neutral White Green Blue Mint Neutral to Full Plus Green Amber ELATION KL FRESNEL 8 FC - VIRTUAL GEL SWATCH BOOK COLORS pale yellow magenta straw dark magenta gold tint rose purple spring yellow mauve...
  • Page 23 ELATION KL FRESNEL 8 FC - COLORS TEMPERATURE Value Color Temperature Value Color Temperature 2400 5500 2500 5600 2600 5700 2700 5800 2800 5900 2900 6000 3000 6100 3100 6200 3200 6300 3300 6400 3400 6500 3500 6600 3600 6700...
  • Page 24: Specifications

    SPECIFICATIONS SOURCE 6500K RGBMA LED Engine 50,000 Hour Average LED Life* *May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming. PHOTOMETRIC DATA 18,000+ Total Lumen Output CRI 92 TLCI 95 Zoom Range 10°...
  • Page 25 DIMENSIONS...
