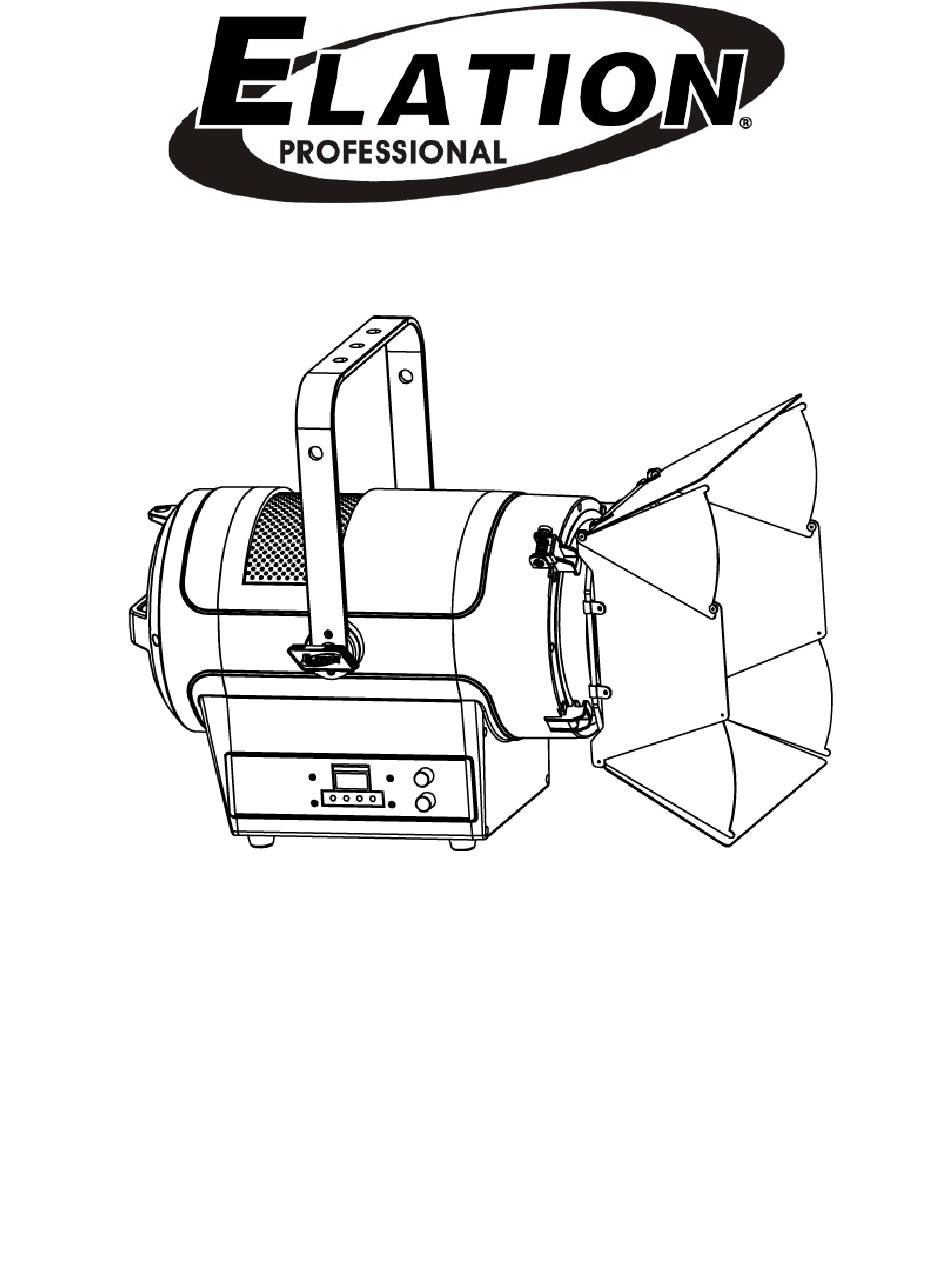

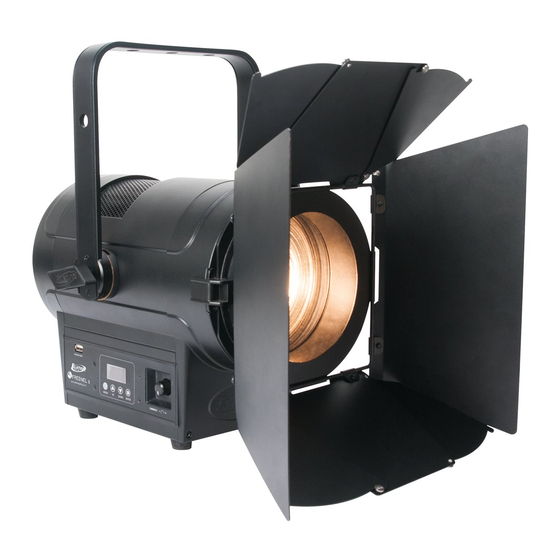

- Page 1 KL FRESNEL 8™ user manual...
- Page 2 +31 45 546 85 66 | +31 45 546 85 96 fax | www.elationlighting.eu | info@elationlighting.eu Elation Professional Mexico | AV Santa Ana 30 | Parque Industrial Lerma, Lerma, Mexico 52000 +52 (728) 282-7070 D O C U M E N T V E R S I O N...
-
Page 3: Table Of Contents
C O N T E N T S General Information Limited Warranty (USA Only) Safety Guidelines Maintenance Guidelines Fixture Overview Installation Guidelines System Menu Manual Dimming and Zoom Control DMX Channel Functions And Values Specifications Optional Accessories... -
Page 4: General Information
Gel Frame powerCON TRUE1 Cable Fixture Safety Cable + Barn Door Safety Cable CUSTOMER SUPPORT Contact ELATION Service for any product related service and support needs. Also visit forums.elationlighting.com with questions, comments or suggestions. ELATION SERVICE USA - Monday - Friday 8:00am to 4:30pm PST 323-582-3322 | Fax 323-832-9142 | support@elationlighting.com... -
Page 5: Limited Warranty (Usa Only)
No accessories should be shipped with the product. If any accessories are shipped with the product, Elation Professional shall have no liability what so ever for loss and/or or damage to any such accessories, nor for the safe return thereof. C. This warranty is void if the product serial number and/or labels are altered or removed;... -
Page 6: Safety Guidelines
This fixture is a sophisticated piece of electronic equipment. To guarantee a smooth operation, it is important to follow all instructions and guidelines in this manual. Elation Professional is not responsible for injury and/or damages resulting from the misuse of this fixture due to the disregard of the information printed in this manual. - Page 7 S A F E T Y G U I D E L I N E S DO NOT TOUCH the fixture housing during operation. Turn OFF the power and allow approximately 15 minutes for the fixture to cool down before serving. DO NOT shake fixture, avoid brute force when installing and/or operating fixture.
-
Page 8: Maintenance Guidelines
Regular inspections are recommended to insure proper function and extended life. There are no user serviceable parts inside this fixture, please refer all other service issues to an authorized Elation service technician. Should you need any spare parts, please order genuine parts from your local Elation dealer. -
Page 9: Fixture Overview
F I X T U R E O V E R V I E W 3pin DMX In 5pin DMX In 5pin DMX Out 3pin DMX Out powerCON TRUE1 In powerCON TRUE1 Out USB Software Update Port OLED Control Menu Display MODE Button UP Button DOWN Button... -
Page 10: Installation Guidelines
I N S T A L L A T I O N I N S T R U C T I O N S FLAMMABLE MATERIAL WARNING Keep fixture minimum 5.0 feet (1.5m) away from flammable materials and/or pyrotechnics. ELECTRICAL CONNECTIONS A qualified electrician should be used for all electrical connections and/or installations. - Page 11 GEL FRAME AND BARN DOOR INSTALLATION The fixture has 2 slots on the front to hold the GEL FRAME and BARN DOOR. The first smaller slot is for the GEL FRAME and the second larger slot is for the BARN DOOR. The fixture also has a top lock that secures these accessories to the fixture.
- Page 12 CLAMP INSTALLATION This fixture includes an adjustable dual mounting yoke and safety cable rigging point attached to the fixture (see the illustration below). When mounting this fixture to truss, be sure to secure an appropriately rated clamp (not included) to the yoke using an M10 screw and attach a SAFETY CABLE to the safety cable rigging point.
- Page 13 RIGGING Overhead rigging requires extensive experience, including amongst others calculating working load limits, installation material being used, and periodic safety inspection of all installation material and the fixture. If you lack these qualifications, do not attempt the installation yourself. Improper installation can result in bodily injury. Fixture is fully operational in the specific mounting positions illustrated below.
-
Page 14: System Menu
S Y S T E M M E N U The fixture includes an easy to navigate system menu. The control panel (see image below) located on the side of the fixture provides access to the main system menu and is where all necessary system adjustments are made to the fixture. - Page 15 SYSTEM MENU - Supports Software Versions: ≥ 1.02 Features subject to change without notice. MAIN MENU SUB MENU OPTIONS / VALUES DESCRIPTION (Default Settings in BOLD) Address Address 001 ~ XXX Set DMX Address Setting UserMode User Mode 2CH, 3CH,4CH, 6CH Set DMX Channel / User Mode Status Lost Dmx...
- Page 16 SYSTEM MENU - Supports Software Versions: ≥ 1.08 Features subject to change without notice. MAIN MENU SUB MENU OPTIONS / VALUES DESCRIPTION (Default Settings in BOLD) Address Address 001 ~ XXX Set DMX Address Setting UserMode User Mode Dimmer / Dimmer 16bit / 3CH / Standard / Extended Set DMX Channel / User Mode Status Lost Dmx...
- Page 17 DIMMER CURVE MODES - Dim Curve Select desired DIMMER MODE (Standard, Stage, TV, Architectural, Theatre, Stage2). STAGE 2 DIMMING CURVE MODE ADDED WITH SOFTWARE UPDATE VERSION ≥1.07...
-
Page 18: Manual Dimming And Zoom Control
M A N U A L D I M M I N G A N D Z O O M C O N T R O L FEATURE IS DISABLED WHEN DMX INPUT CABLE IS CONNECTED TO FIXTURE! TO USE DIMMING AND ZOOM KNOBS, DISCONNECT DMX CABLE IF CONNECTED. Follow steps below to enable manual DIMMING and ZOOM control knobs. -
Page 19: Dmx Channel Functions And Values
D M X C H A N N E L F U N C T I O N S A N D V A L U E S ELATION KL FRESNEL 8 DMX Channel Values / Functions (6 DMX Channels) Supports Software Versions: ≥... - Page 20 DMX CHANNEL UPDATE WITH SOFTWARE UPDATE VERSION ≥1.07 See highlighted items below which have been updated with this software update. MODE / CHANNEL VALUE FUNCTION 2-3CH 2-4CH DIMMER INTENSITY 000-255 Dimmer 0 to 100% DIMMER INTENSITY FINE 000-255 Dimmer FINE Adjustment SHUTTER, STROBE 000-031 LED OFF...
- Page 21 DMX CHANNEL UPDATE WITH SOFTWARE UPDATE VERSION ≥1.08 ELATION KL FRESNEL 8 DMX Channel Values / Functions (7 DMX Channels) Supports Software Versions: ≥ 1.08 Features subject to change without notice. MODE / CHANNEL VALUE FUNCTION Dimmer Dimmer Standard Extended...
- Page 22 MODE / CHANNEL VALUE FUNCTION Dimmer Dimmer Standard Extended 16bit LED REFRESH RATE | DIMMER CURVES** Hold selected DMX value for 5 seconds to engage. 000-100 IDLE 101-105 900 Hz 106-110 1000 Hz 111-115 1100 Hz 116-120 1200 Hz 121-125 1300 Hz 126-130 1400 Hz...
-
Page 23: Specifications
S P E C I F I C A T I O N S SOURCE 350W 3,000K Warm White LED Engine 50,000 Hour Average LED Life* *May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming. EFFECTS Manual and DMX Controlled Dimmer and Zoom High Speed Electronic Shutter and Strobe... - Page 24 FCC STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 25: Optional Accessories
O P T I O N A L A C C E S S O R I E S ORDER CODE ITEM QUICK RIG CLAMP Low Profile Quick Release Clamp AC3PDMX5PRO 5 ft. (1.5m) 3pin PRO DMX Cable AC5PDMX5PRO 5 ft. (1.5m) 5pin PRO DMX Cable NEU088 3 ft.
