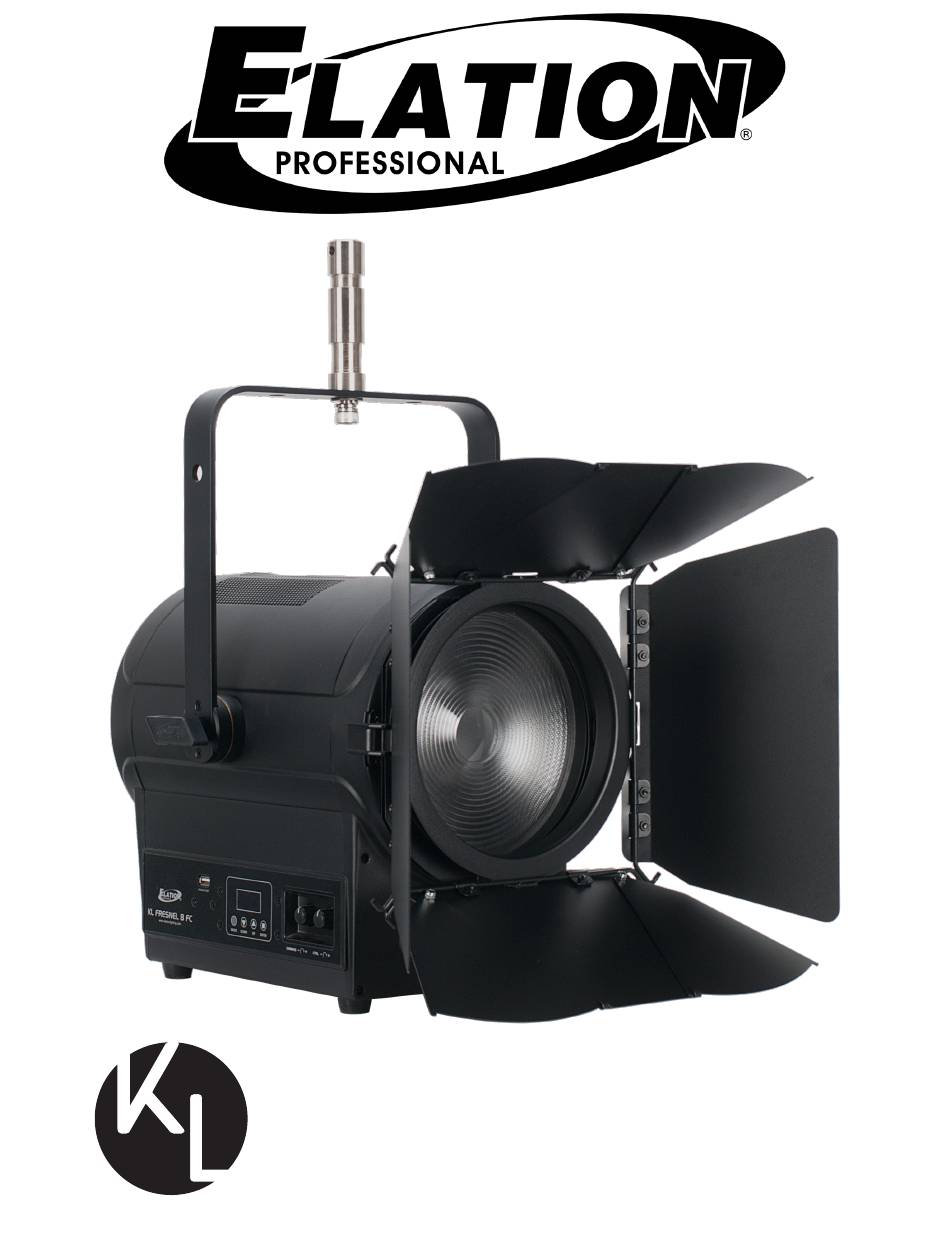

  • Page 1 FRESNEL 8 FC User Manual...
  • Page 2 +31 45 546 85 66 | +31 45 546 85 96 fax | www.elationlighting.eu info@elationlighting.eu Elation Professional Mexico | AV Santa Ana 30 | Parque Industrial Lerma, Lerma, Mexico 52000 +52 (728) 282-7070 DOCUMENT VERSION Due to additional product features and/or enhancements, an updated version of this document may be available online.

  • Page 3: Table Of Contents

    C O N T E N T S General Information Limited Warranty (USA Only) Safety Guidelines Maintenance Guidelines Fixture Overview Installation Guidelines System Menu Error Codes Dimmer Modes - Dim Curve Manual Dimming and Function Control DMX Traits: Channel Functions And Values Colors | Virtual Gel Swatch Book Color Color Temperature Remote Device Management (RDM)

  • Page 4: General Information

    Gel Frame Power Cable CUSTOMER SUPPORT Contact ELATION Service for any product related service and support needs. Also visit forums.elationlighting.com with questions, comments or suggestions. ELATION SERVICE USA - Monday - Friday 8:00am to 4:30pm PST 323-582-3322 | Fax 323-832-9142 | support@elationlighting.com ELATION SERVICE EUROPE - Monday - Friday 08:30 to 17:00 CET +31 45 546 85 63 | Fax +31 45 546 85 96 | support@elationlighting.eu...

  • Page 5: Limited Warranty (Usa Only)

    It is the owner’s responsibility to establish the date and place of purchase by acceptable evidence, at the time service is sought. B. For warranty service, send the product only to the Elation Professional factory. All shipping charges must be pre-paid. If the requested repairs or service (including parts replacement) are within the terms of this warranty, Elation Professional will pay return shipping charges only to a designated point within the United States.

  • Page 6: Safety Guidelines

    This fixture is a sophisticated piece of electronic equipment. To guarantee a smooth operation, it is important to follow all instructions and guidelines in this manual. Elation Professional is not responsible for injury and/or damages resulting from the misuse of this fixture due to the disregard of the information printed in this manual.
  • Page 7 S A F E T Y G U I D E L I N E S DO NOT TOUCH the fixture housing during operation. Turn OFF the power and allow approximately 15 minutes for the fixture to cool down before serving. DO NOT shake fixture, avoid brute force when installing and/or operating fixture.

  • Page 8: Maintenance Guidelines

    Regular inspections are recommended to insure proper function and extended life. There are no user serviceable parts inside this fixture, please refer all other service issues to an authorized Elation service technician. Should you need any spare parts, please order genuine parts from your local Elation dealer.

  • Page 9: Fixture Overview

    F I X T U R E O V E R V I E W Manual Dimming Control Display 3pin Screen DMX In 5pin Power DMX In Software Manual Update Mode Function Down Enter 5pin Power 3pin Port Button Button Button Control Button...

  • Page 10: Installation Guidelines

    I N S TA L L AT I O N G U I D E L I N E S FLAMMABLE MATERIAL WARNING Keep fixture minimum 5.0 feet (1.5m) away from flammable materials and/or pyrotechnics. ELECTRICAL CONNECTIONS A qualified electrician should be used for all electrical connections and/or installations. USE CAUTION WHEN POWER LINKING OTHER MODEL FIXTURES AS THE POWER CONSUMPTION OF OTHER MODEL FIXTURES MAY EXCEED THE MAX POWER OUTPUT ON THIS FIXTURE.
  • Page 11 LEDs. This issue is not specific only to ELATION lighting fixtures, it is a common issue with lighting fixtures from all manufacturers. Although there is no true way to fully prevent this issue from happening, the guidelines below can prevent any potential damage from occurring if followed.
  • Page 12 I N S TA L L AT I O N G U I D E L I N E S GEL FRAME AND BARN DOOR INSTALLATION The fixture has 2 slots on the front to hold the GEL FRAME and BARN DOOR. The first smaller slot is for the GEL FRAME and the second larger slot is for the BARN DOOR.
  • Page 13 I N S TA L L AT I O N G U I D E L I N E S JUNIOR PIN INSTALLATION (INCLUDED) This fixture includes an adjustable dual mounting yoke and safety cable rigging point attached to the fixture. When using the included 28mm Junior Pin, attach the pin with the included bolt using a 10mm Hex Key, and attach a SAFETY CABLE to the safety cable rigging point.
  • Page 14 I N S TA L L AT I O N G U I D E L I N E S RIGGING This fixture can be mounted suspended upside down from a truss, mounted to a vertical truss, or standing upright on a stable, level surface. Refer to the illustration below. CAUTION: Falling fixtures can cause severe injury or serious equipment damage! For this reason, fixtures should be installed and inspected only by qualified personnel.

  • Page 15: System Menu

    S YS T E M M E N U The fixture includes an easy to navigate system menu. The control panel (see image below) located on the side of the fixture provides access to the main system menu and is where all necessary system adjustments are made to the fixture.
  • Page 16 S YS T E M M E N U Features subject to change without notice OPTIONS / VALUES MAIN MENU SUB MENU DESCRIPTION (Default Settings in BOLD) Disabled, Dimmer, Int MANUAL CCT Grn, Int Color Sat, See Manual Mode section for details MODE Manual Control DMX Address...

  • Page 17: Error Codes

    S YS T E M M E N U Features subject to change without notice OPTIONS / VALUES MAIN MENU SUB MENU DESCRIPTION (Default Settings in BOLD) Life Time xxxxxx h Last Run Time xxxxxx h Time Reset Reset (Passcode: 038) Current Max Resettable Temperatures...

  • Page 18: Dimmer Modes - Dim Curve

    D I M M E R M O D E S - D I M C U R V E Select desired DIMMER MODE (Standard, Stage, TV, Architectural, Theatre, Stage2).

  • Page 19: Manual Dimming And Function Control

    M A N U A L D I M M I N G A N D F U N C T I O N C O N T R O L Use the two encoder knobs for manual DIMMING and FUNCTION control. Press the CTRL knob to step/cycle through available sub-menu selections.

  • Page 20: Dmx Traits: Channel Functions And Values

    D M X T R A I T S : C H A N N E L F U N C T I O N S A N D VA L U E S Supports Software Versions: ≥ V1.0.2 Dimmer Dimmer Standard Extended Value Function...
  • Page 21 D M X T R A I T S : C H A N N E L F U N C T I O N S A N D VA L U E S Supports Software Versions: ≥ V1.0.2 Dimmer Dimmer Standard Extended Value...
  • Page 22 D M X T R A I T S : C H A N N E L F U N C T I O N S A N D VA L U E S Supports Software Versions: ≥ V1.0.2 Dimmer Dimmer Standard Extended Value...
  • Page 23 D M X T R A I T S : C H A N N E L F U N C T I O N S A N D VA L U E S Supports Software Versions: ≥ V1.0.2 Dimmer Dimmer Standard Extended Value...

  • Page 24: Colors | Virtual Gel Swatch Book Color

    C O L O R S Colors Color Temperature Green Shift Cyan Magenta Full Minus Green to Neutral Yellow 2700K – 8500K Neutral White Green Blue Mint Neutral to Full Plus Green Amber V I R T U A L G E L S WAT C H B O O K C O LO R pale yellow magenta straw...

  • Page 25: Color Temperature

    C O L O R T E M P E R AT U R E Value Color Temperature Value Color Temperature 2400 5500 2500 5600 2600 5700 2700 5800 2800 5900 2900 6000 3000 6100 3100 6200 3200 6300 3300 6400 3400 6500...

  • Page 26: Remote Device Management (Rdm)

    R E M O T E D E V I C E M A N A G E M E N T ( R D M ) NOTE: In order for RDM to work properly, RDM enabled equipment must be used throughout the entire system, including DMX data splitters and wireless systems.

  • Page 27: Software Updates

    FIXTURE SOFTWARE CAN NOT BE DOWNGRADED! DOWNLOAD FIXTURE SOFTWARE TO PC ONLY! (NO MAC SUPPORT) PLEASE CONTACT ELATION SERVICE FOR FURTHER INFORMATION. PERSONALITY – Service Setting – USB Update To update the fixture software via the UPDATE/SERVICE PORT, follow steps below.

  • Page 28: Specifications

    S P E C I F I C AT I O N S SOURCE 6500K RGBMA LED Engine 50,000 Hour Average LED Life* *May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

  • Page 29: Dimensions

    D I M E N S I O N S...

  • Page 30: Optional Accessories | Fcc Statement

    OPTIONAL ACCESSORIES SKU NUMBER DESCRIPTION SIP139 IP65 Rated Twist Lock Power Cable, 10ft (3m)* AC5PDMX3PRO 5-pin Pro DMX Cable, 3 ft (0.9m)* TRIGGER CLAMP Heavy Duty Hook Style Clamp KLF135 Universal Snap Bag F C C S TAT E M E N T This device complies with Part 15 of the FCC Rules.
  • Page 31 This page intentionally left blank.
