Summary of Contents for Elation KL Fresnel 6 PO

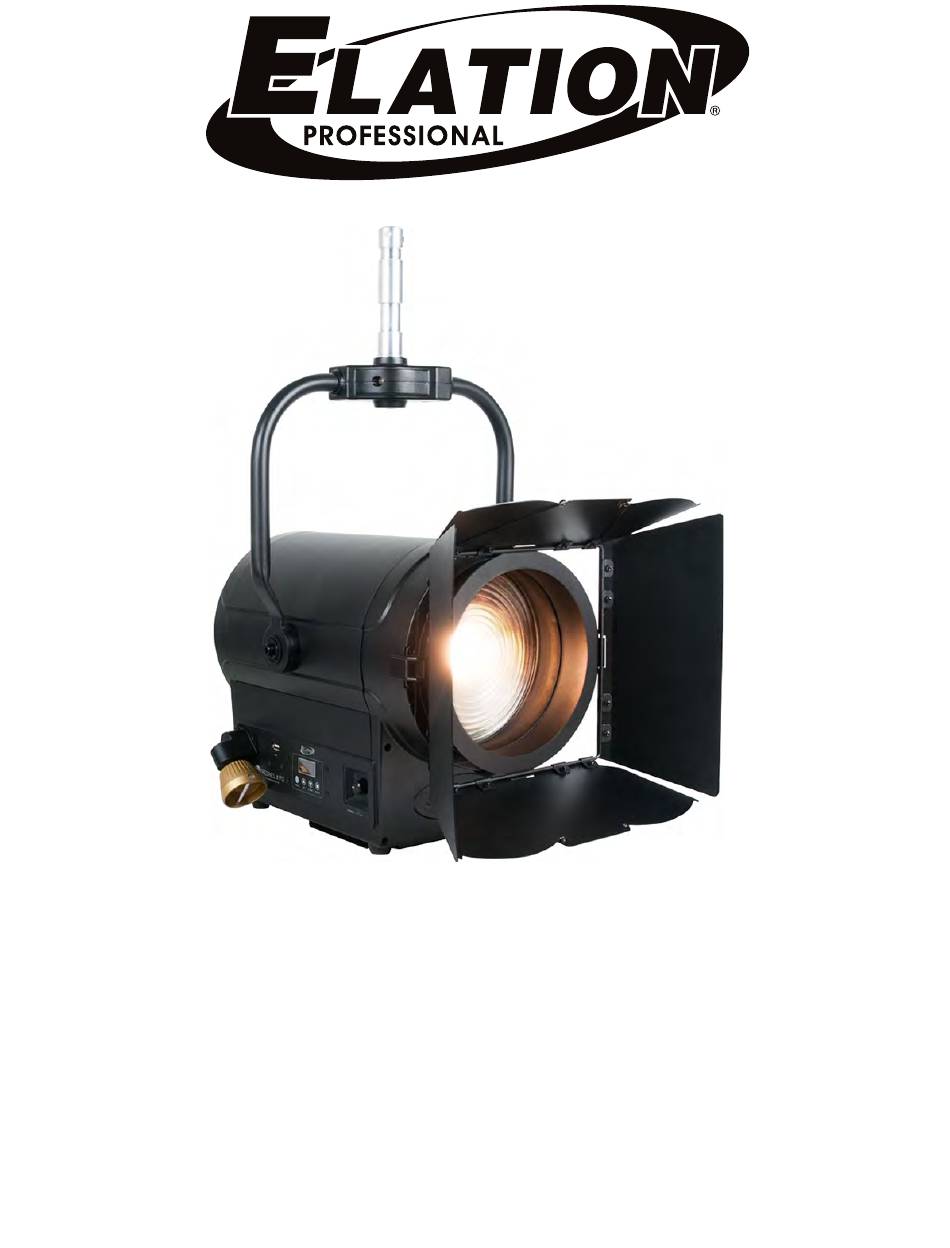

- Page 1 Black version C/50 M/50 Y/50 K/100 White version C/0 M/0 Y/0 K/0 KL Fresnel 6 PO User Manual...
- Page 2 +31 45 546 85 66 | +31 45 546 85 96 fax | www.elationlighting.eu | info@elationlighting.eu Elation Professional Mexico | AV Santa Ana 30 | Parque Industrial Lerma, Lerma, Mexico 52000 +52 (728) 282-7070 D O C U M E N T V E R S I O N...
-
Page 3: Table Of Contents
C O N T E N T S General Information Limited Warranty (USA Only) Safety Guidelines Maintenance Guidelines Fixture Overview Installation Instructions System Menu Manual Dimmer Adjustment DMX Channel Functions and Values Dimmer Modes Specifications Dimensional Drawings... -
Page 4: General Information
Fixture Barn Door Assembly Junior Pin Gel Frame CUSTOMER SUPPORT Contact ELATION Service for any product related service and support needs. Also visit forums.elationlighting.com with questions, comments or suggestions. ELATION SERVICE USA - Monday - Friday 8:00am to 4:30pm PST 323-582-3322 | Fax 323-832-9142 | support@elationlighting.com... -
Page 5: Limited Warranty (Usa Only)
It is the owner’s responsibility to establish the date and place of purchase by acceptable evidence, at the time service is sought. B. For warranty service, send the product only to the Elation Professional factory. All shipping charges must be pre-paid. If the requested repairs or service (including parts replacement) are within the terms of this warranty, Elation Professional will pay return shipping charges only to a designated point within the United States. -
Page 6: Safety Guidelines
This fixture is a sophisticated piece of electronic equipment. To guarantee smooth operation, it is important to follow all instructions and guidelines in this manual. Elation Professional is not responsible for injury and/or damages resulting from the misuse of this fixture due to the disregard of the information printed in this manual. - Page 7 S A F E T Y G U I D E L I N E S - DO NOT TOUCH the fixture housing during operation. Turn OFF the power and allow approximately 15 minutes for the fixture to cool down before servicing. - DO NOT shake fixture, and avoid brute force when installing and/or operating fixture.
-
Page 8: Maintenance Guidelines
Regular inspections are recommended to ensure proper function and extended life. There are no user serviceable parts inside this fixture, please refer all other service issues to an authorized Elation service technician. Should you need any spare parts, please order genuine parts from your local Elation dealer. -
Page 9: Fixture Overview
F I X T U R E O V E R V I E W 1. Barn Door Installation Slots 2. Mounting Yoke 3. Clamp Mounting Point 4. Junior Pin (installed) 5. Tilt Adjustment Knob 6. Pan Adjustment Knob 7. Dimmer Adjustment Knob 8. - Page 10 F I X T U R E O V E R V I E W 15. Service Port 16. Fuse – T3A / 250V 17. Power In 18. Power Out 19. 3-pin DMX In 20. 5-pin DMX In 21. 3-pin DMX Out 22.
-
Page 11: Installation Instructions
I N S T A L L A T I O N I N S T R U C T I O N S FLAMMABLE MATERIAL WARNING Keep fixture minimum 5.0 feet (1.5m) away from flammable materials and/or pyrotechnics. ELECTRICAL CONNECTIONS A qualified electrician should be used for all electrical connections and/or installations. - Page 12 I N S T A L L A T I O N I N S T R U C T I O N S CLAMP INSTALLATION This fixture includes an adjustable mounting yoke with an integrated clamp mounting point, as well as an additional safety cable rigging point attached to the body of the fixture (see the illustration below).
-
Page 13: System Menu
S Y S T E M M E N U The fixture includes an easy to navigate system menu. The control panel (see image below) located on the side of the fixture provides access to the main system menu, where all necessary system adjustments are made. - Page 14 S Y S T E M M E N U Elation KL Fresnel 6 PO – System Menu Default settings shown in bold Supports Software Versions: 1.03 ADDRESS 001 – 511 Dimmer Dimmer 16-bit USER MODE Standard Extended Status Lost DMX...
- Page 15 5000 Hz 10 kHz Frequen (continued from 15 kHz prev page) FUNCTION 20 kHz (continued from prev 25 kHz page) USB Data On / Off MasterSw On / Off DFSE On / Off Current (fixture run time since last reset in hours) Total (total fixture run time in hours) Time Info...
-
Page 16: Manual Dimmer Adjustment
M A N U A L D I M M E R A D J U S T M E N T This fixture features a Dimmer Adjustment Knob located next to the system menu controls (see illustration below). When operating in DMX mode, pressing and holding the Dimmer Adjustment Knob for 3 seconds will automatically trigger the LED to operate at max power for 2 minutes. -
Page 17: Dmx Channel Functions And Values
CHANNEL VALUE FUNCTION 000 – 255 Dimmer Intensity, 0 to 100% 2-CH DIMMER 16-BIT MODE Elation KL Fresnel 6 PO DMX Channels / Functions (2 DMX Channels, Dimmer 16-Bit Mode) Supports Software Versions: 1.03 CHANNEL VALUE FUNCTION 000 – 255 Dimmer Intensity, 0 to 100% 000 –... - Page 18 7.0 s 8.0 s 9.0 s 10.0 s 142 – 255 Default 4-CH STANDARD MODE Elation KL Fresnel 6 PO DMX Channels / Functions (4 DMX Channels, Standard Mode) Supports Software Versions: 1.03 CHANNEL VALUE FUNCTION 000 – 255 Dimmer Intensity, 0 to 100% 000 –...
- Page 19 7.0 s 8.0 s 9.0 s 10.0 s 142 – 255 Default 5-CH EXTENDED MODE Elation KL Fresnel 6 PO DMX Channels / Functions (5 DMX Channels, Extended Mode) Supports Software Versions: 1.03 CHANNEL VALUE FUNCTION 000 – 255 Dimmer Intensity, 0 to 100% 000 –...
- Page 20 CHANNEL VALUE FUNCTION Dimmer Delay Time (continued from prev page) 0.7 s 0.8 s 0.9 s 1.0 s 1.5 s 2.0 s 3.0 s (continued from prev 4.0 s page) 5.0 s 6.0 s 7.0 s 8.0 s 9.0 s 10.0 s 142 –...
-
Page 21: Dimmer Modes
D I M M E R M O D E S Select desired DIMMER MODE (Standard, Stage, TV, Architectural, Theatre, Stage2). 100% 100% 100% 100% DMX % DMX % DMX % DMX % LINEAR SQUARE INVERSE SQUARE S-CURVE... -
Page 22: Specifications
S P E C I F I C A T I O N S SOURCE 150W Warm White LED Engine 6,500 Total Output Lumens, 3,000K, 95CRI 50,000 Hour Average LED Life* *May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming. -
Page 23: Dimensional Drawings
D I M E N S I O N A L D R A W I N G S FIXTURE WITH JUNIOR PIN INSTALLED Drawings not to scale. - Page 24 D I M E N S I O N A L D R A W I N G S BARN DOOR AND JUNIOR PIN INSTALLED Drawings not to scale.
- Page 26 EU#: 1236100173...
