Configuration Quick Start Guide

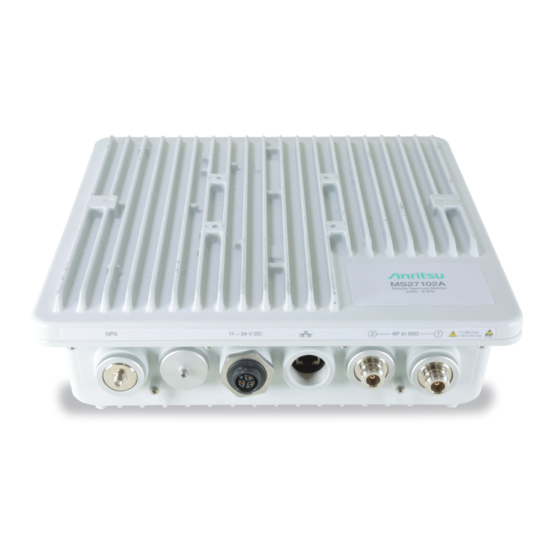

Remote Spectrum Monitors
MS27101A, MS27102A, MS27103A
9 kHz to 6 GHz
1. Introduction
To communicate with the MS2710xA Remote Spectrum Monitor or to change its IP
configuration, a PC must be correctly set up to communicate with the instrument via a direct
connection using a static IP. The sections in this guide explain using:
• a Windows PC to directly communicate with the Anritsu spectrum monitor
• SCPI commands for configuring the Ethernet and DNS settings
• the Anritsu Windows network discovery tool to find the instrument IP address
The spectrum monitor is shipped with the following default IP configuration:
• DHCP: OFF (Static IP Address)
• Static IP Address: 10.0.0.2
• Static Subnet: 255.255.255.0
• Static Gateway: 10.0.0.0
Read the MS2710xA Product Information, Compliance, and Safety Guide (PN: 10100-00064)
for important safety, legal, and regulatory notices. For additional information and literature
covering your product, visit the product page of your instrument and select the Library tab:
Цены и срок поставки уточняйте на сайте
www.2test.ru
, по телефону:
+ 7 495 215-57-17
или
info@2test.ru
Advertisement
Table of Contents
Related Manuals for Anritsu MS27101A
Summary of Contents for Anritsu MS27101A
- Page 1 • a Windows PC to directly communicate with the Anritsu spectrum monitor • SCPI commands for configuring the Ethernet and DNS settings • the Anritsu Windows network discovery tool to find the instrument IP address The spectrum monitor is shipped with the following default IP configuration: •...
- Page 2 Setting Up Windows 7 for a Static IP 2. Setting Up Windows 7 for a Static IP The following example illustrates how to set up Windows 7 for a static IP address. Refer to your operating system documentation or consult with your network administrator for other Windows versions or operating systems.
- Page 3 Setting Up Windows 7 for a Static IP 4. Select Properties as shown in Figure 2a. 5. Highlight Internet Protocol Version 4 (TCP/IPv4) and select Properties as shown in Figure 2b. 6. Select Use the following IP address: and enter the following IP properties as shown in Figure 2c as listed: •...
- Page 4 SYSTem:COMMunicate:LAN:DHCP ON Turns the DHCP setting ON. The setting is applied immediately upon sending the command. Turning DHCP ON will change the IP address. The Anritsu Discovery program will Note need to be used to retrieve the new IP address. See “Discovering Instruments on...
- Page 5 Setting Up Windows 7 for Dynamic IP 4. Setting Up Windows 7 for Dynamic IP 1. Select the Local Area Connection link as shown in Figure 3. Figure 3. Select the Local Area Connection link 2. Select Properties as shown in Figure 4a. 3.
- Page 6 Discovering Instruments on the Network Using Windows 5. Discovering Instruments on the Network Using Windows Clients may execute the UDP Anritsu Discovery program on their PC to discover instruments on the same subnet as the PC. The program prints out a list of instruments with information such as the instrument host name, firmware version, MAC address, IPv4 and IPv6 addresses.
- Page 7 Supplemental Information 6. Supplemental Information Configuring for Static IP through SCPI Commands To change from DHCP to Static IP, send these commands to port 9001 of the instrument’s dynamic IP address: 1. Set the static values of the Ethernet configuration that are used when DHCP is OFF: SYSTem:COMMunicate:LAN:CONFig <Static IP>,<Static Gateway>, <Static Subnet>...
- Page 8 Supplemental Information System Override In the event that the instrument does not respond to SCPI commands (due to circumstances like a long sweep used in conjunction with *OPC?) and needs to be reset remotely, the system override feature can be used. System override can be accessed through a raw socket to port 8001 of the instrument.
