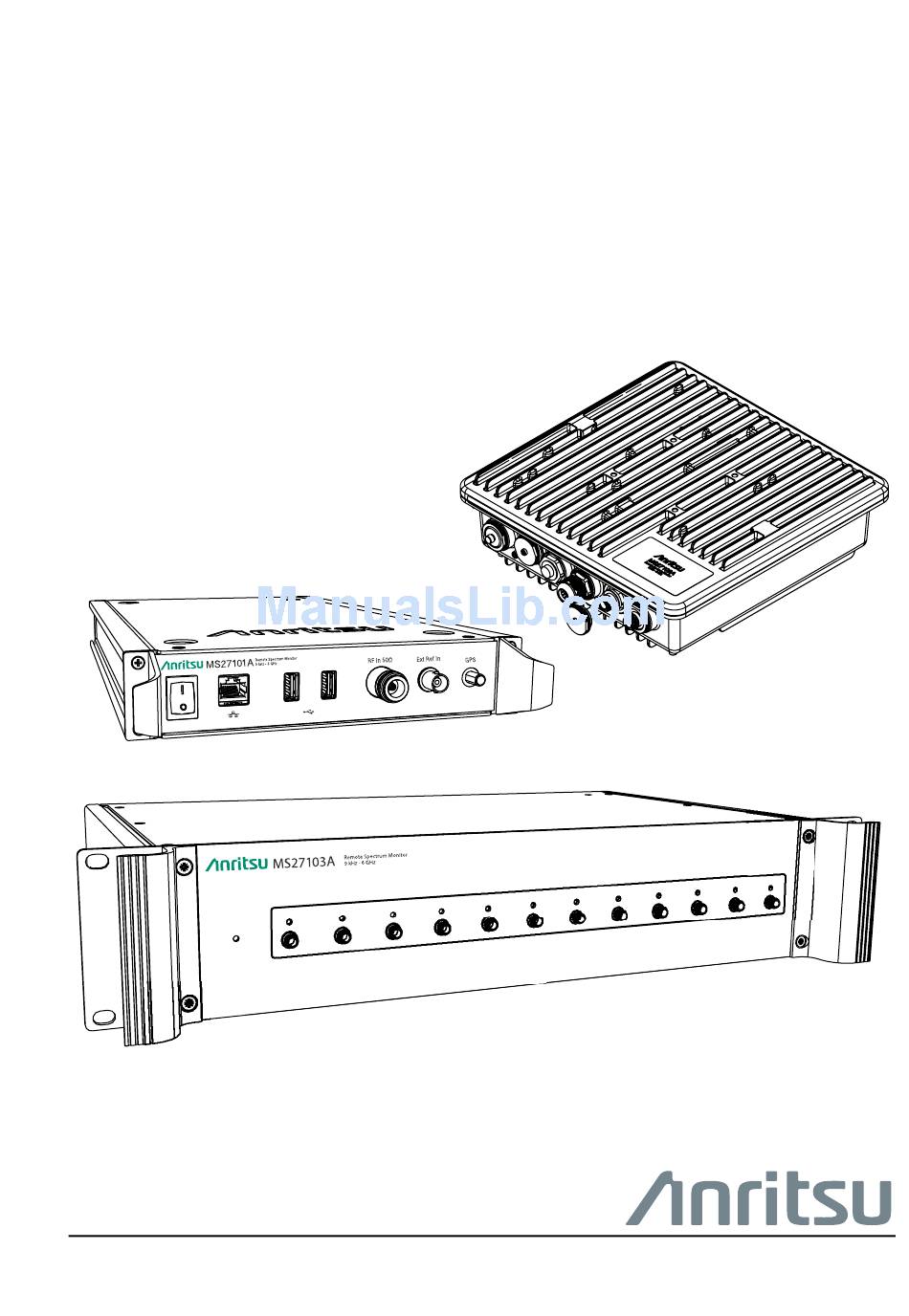

- Page 1 Installation Guide Remote Spectrum Monitors MS27101A, MS27102A, MS27103A 9 kHz to 6 GHz Anritsu Company Part Number: 10580-00409 490 Jarvis Drive Revision: C Morgan Hill, CA 95037-2809 Published: March 2016 Copyright 2016 Anritsu Company http://www.anritsu.com...
-
Page 2: Table Of Contents
Table of Contents Chapter 1—MS27101A Installation Introduction ..........1-1 Instrument Overview. -
Page 3: Chapter 1-Ms27101A Installation
Section 1-4 describes side-by-side rack mounting. The MS27101A must be installed by a trained service person who is familiar with RF system integration and local regulatory and compliance requirements for the region in which the instrument is being installed. Read the MS2710xA Product Information, Compliance, and Safety Guide (PN: 10100-00064) for important safety, legal, and regulatory notices. -
Page 4: Connectors And Chassis
4. RF Input, N(f) Figure 1-1. MS27101A Overview Mounting Hardware Single Unit Mounting Brackets Side-by-Side Unit Mounting Brackets Figure 1-2. MS27101A Optional Rack Mounting Hardware Required Tools The installation requires a medium size Phillips screwdriver. PN: 10580-00409 Rev. C MS2710xA IG... -
Page 5: Single Unit Rack Mounting
1-3 Single Unit Rack Mounting Single Unit Rack Mounting This section explains how to fit a single MS27101A monitor into an instrument rack using the two single mounting brackets. 1. Prepare the MS27101A by removing the front panel handles as shown in Figure 1-3. -
Page 6: Side-By-Side Unit Rack Mounting
1-4 Side-by-Side Unit Rack Mounting MS27101A Installation Side-by-Side Unit Rack Mounting This section explains how to fit two MS27101A remote spectrum monitors into an instrument rack using the side-by-side mounting brackets. 1. Prepare both MS27101A instruments by removing the front panel handles and inside... -
Page 7: Chapter 2-Ms27102A Installation
For additional information and literature covering your product, visit the product page of your instrument and select the Library tab: • http://www.anritsu.com/en-US/test-measurement/products/ms27102a Instrument Overview This section provides a brief overview of the instrument and the supplied accessories. The MS27102A instrument consists of the following main components: •... -
Page 8: Connectors And Chassis
2-2 Instrument Overview MS27102A Installation Connectors and Chassis 310 mm 1. GPS Antenna, SMA(f) 2. No Connection 3. 3-pin Power Input (see “Power Supply Gland Assembly” on page 2-10) 4. Ethernet (see “Ethernet Gland Assembly” on page 2-9) 5. RF Input Port 2, N(f) (optional) 6. -
Page 9: Mounting Hardware
MS27102A Installation 2-2 Instrument Overview Mounting Hardware 1. Universal mounting bracket detail 2. Mounting bracket extensions and nuts (6 mm hex nuts, 2 each, used for wall mounting only) 3. Stainless machine screw set (10 mm M6 x 0.8, 4 each) 4. -
Page 10: Connector Glands
2-2 Instrument Overview MS27102A Installation Connector Glands The figure below illustrates the IP67 rated Ethernet (top) and power connector (bottom) gland assemblies. 1. O-ring 5. Connector body 2. Housing with connector pins 6. Seals 3. Lock nut 7. Inner collet clip 4. -
Page 11: Surveying The Installation Site
MS27102A Installation 2-3 Surveying the Installation Site Surveying the Installation Site To ensure optimal performance of the MS27102A Remote Spectrum Monitor, conduct a site survey to determine the optimal placement of the instrument for maximum range, coverage, and network integrity. The site must have available utilities (power and network connection). A site survey accounts for the following: •... -
Page 12: Required Equipment
2-4 Required Equipment MS27102A Installation Required Equipment The following is required to install the MA27102A Remote Spectrum Monitor: • #2 Phillips screwdriver (for bracket to chassis and ground fasteners) • Flat blade screwdriver (for strap clamps) • 1.5 mm Allen key (for power wire connectors) •... -
Page 13: Pole And Tower Mounting Instructions
MS27102A Installation 2-6 Pole and Tower Mounting Instructions Pole and Tower Mounting Instructions Install the universal mounting bracket as instructed in Section 2-5. The bracket can accommodate mounting to a pipe diameter up to 101 mm (4 in). Refer to Figure 2-5 during this procedure. -
Page 14: Wall Mounting Instructions
2-7 Wall Mounting Instructions MS27102A Installation Wall Mounting Instructions The MA27102A universal mounting bracket can accommodate mounting to a variety of wall structures. The user is responsible for selecting the appropriate wall fasteners for the structure of the wall, and the fasting system must be sufficient to carry the load of the instrument and cabling. -
Page 15: Installing The Antenna Cables
MS27102A Installation 2-8 Installing the Antenna Cables Installing the Antenna Cables Always install an antenna in accordance with local regulatory code and with best practices, and follow the mounting and installation instructions that were supplied with your antenna. Ensure that all antenna connections are grounded to the instrument ground terminal. Installing the Ethernet Cable The instrument’s Ethernet connector accepts any standard 8P8C (RJ45) plug. -
Page 16: 2-10 Installing The Power Supply Cables
2-10 Installing the Power Supply Cables MS27102A Installation 2-10 Installing the Power Supply Cables The MS27102A features an IP67 rated power connector. However, for the connection to be weatherproof, the weatherproofing gland must be installed around the connector and cable. The following illustration shows how to install the power connector’s weatherproof gland. -
Page 17: Chapter 3-Ms27103A Installation
For additional information and literature covering your product, visit the product page of your instrument and select the Library tab: • http://www.anritsu.com/en-US/test-measurement/products/ms27103a Instrument Overview This section provides a brief overview of the instrument and the supplied accessories. The MS27103A instrument consists of the following main components: •... -
Page 18: Connectors And Chassis
3-2 Instrument Overview MS27103A Installation Connectors and Chassis 483 mm 435 mm 265 mm 305 mm 465 mm 82.13 mm 69.03 mm 19.03 mm 5.93 mm 1. Power LED 5. Ethernet Port (optional) 2. RF Input Ports, 12 or 24 SMA(f) 6. -
Page 19: Ms27103A Rack Mounting
MS27103A Installation 3-3 MS27103A Rack Mounting MS27103A Rack Mounting This section illustrates how to fit a single monitor into an instrument rack. 1. Slide the instrument into the rack and secure with 4 screws as instructed by the cabinet manufacturer. Figure 3-2. - Page 20 3-3 MS27103A Rack Mounting MS27103A Installation PN: 10580-00409 Rev. C MS2710xA IG...
- Page 22 Anritsu Company 490 Jarvis Drive Anritsu utilizes recycled paper and environmentally conscious inks and toner. Morgan Hill, CA 95037-2809 http://www.anritsu.com...
