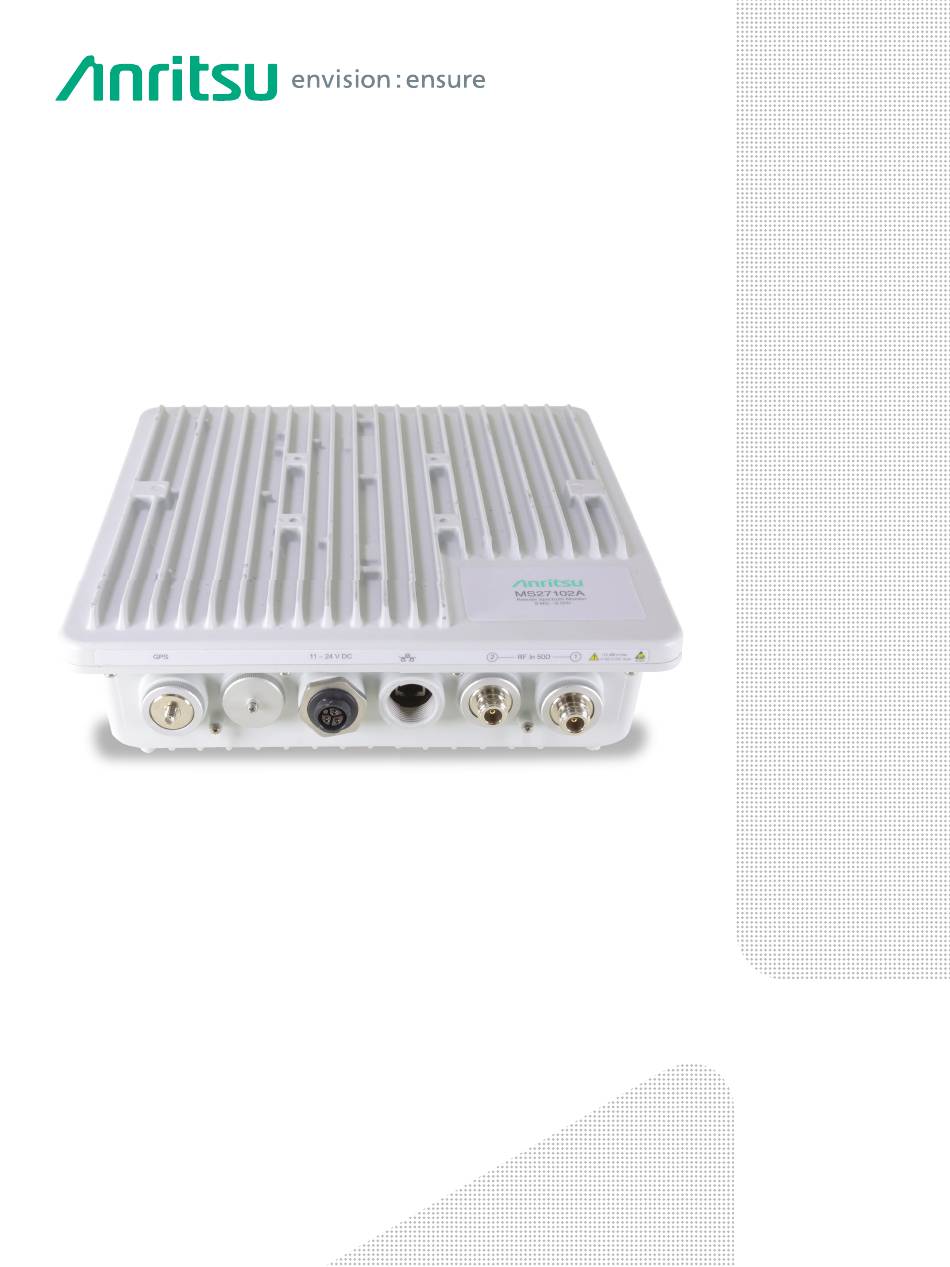

  • Page 1 Product Brochure MS27102A Remote Spectrum Monitor...
  • Page 2 Compliance with spectrum regulations is often enforced by spectrum monitoring. Figure 1 shows the MS27102A deployed to monitor Positive Train Control (PTC) frequencies. PTC is being deployed worldwide to provide automated signaling for train control. The MS27103A can also be used inside the train to insure wireless integrity.
  • Page 3 MS27102A Remote Spectrum Monitor Capable of sweeping at rates up to 24 GHz/s, the MS27102A allows capture of many types of signals. This includes periodic or transient transmissions as well as short “bursty” signals. Also featured is a high dynamic range, high sensitivity and low spurious signals.
  • Page 4 With monitors potentially being deployed hundreds or thousands of kilometers from the control center, it is imperative that each probe remain operational under all types of conditions. The MS27102A is designed for robust field deployments, with capabilities for remote power cycling, automated system recovery protocols and firmware updates “pushed”...

  • Page 5: Integrated Web Server

    MS27102A Remote Spectrum Monitor Integrated Web Server The MS27102A features an integrated web server. Using an internet browser (Chrome and FireFox are supported), a user from anywhere in the world can log in to the spectrum monitor and control any of its features.
  • Page 6 Hardware The MS27102A is rated to IP67 standards for outdoor deployment. It is dust tight (no ingress of dust) as well as water resistant. This involves testing the probe for immersion into as much as 1 meter of water for durations of up to 30 minutes.

  • Page 7: Key Applications

    • Government regulators enforcing spectrum policies Fig 8: Anritsu remote spectrum monitor positioned at airport Signals of Interest The wide variety of signals to be monitored fall into several categories. Each of these types of signals will be examined in some detail. These include: •...
  • Page 8 MS27102A Remote Spectrum Monitor Accidental Interference A wide variety of accidental interference can be seen in the spectrum. A common problem is cable TV leakage. This type of leakage exists both from cable signals leaking into the outside environment as well as from external signals leaking into the cable system.
  • Page 9 MS27102A Remote Spectrum Monitor Performance The MS27102A is able to sweep the frequency spectrum at rates up to 24 GHz/s. This enables the user to capture intermittent or pulsed signals. Additionally, the spectrum monitor has an instantaneous FFT bandwidth of 20 MHz.
  • Page 10 Via Elio Vittorini 129, 00144 Roma Italy Phone: +39-06-509-9711 Fax: +39-06-502-2425 Anritsu utilizes recycled paper and environmentally conscious inks and toner. ® Anritsu All trademarks are registered trademarks of their 11410-00875, Rev. D Printed in United States 2018-01 respective owners. Data subject to change without notice. For ©2018 Anritsu Company.
