4. Connection with Net2 Plus

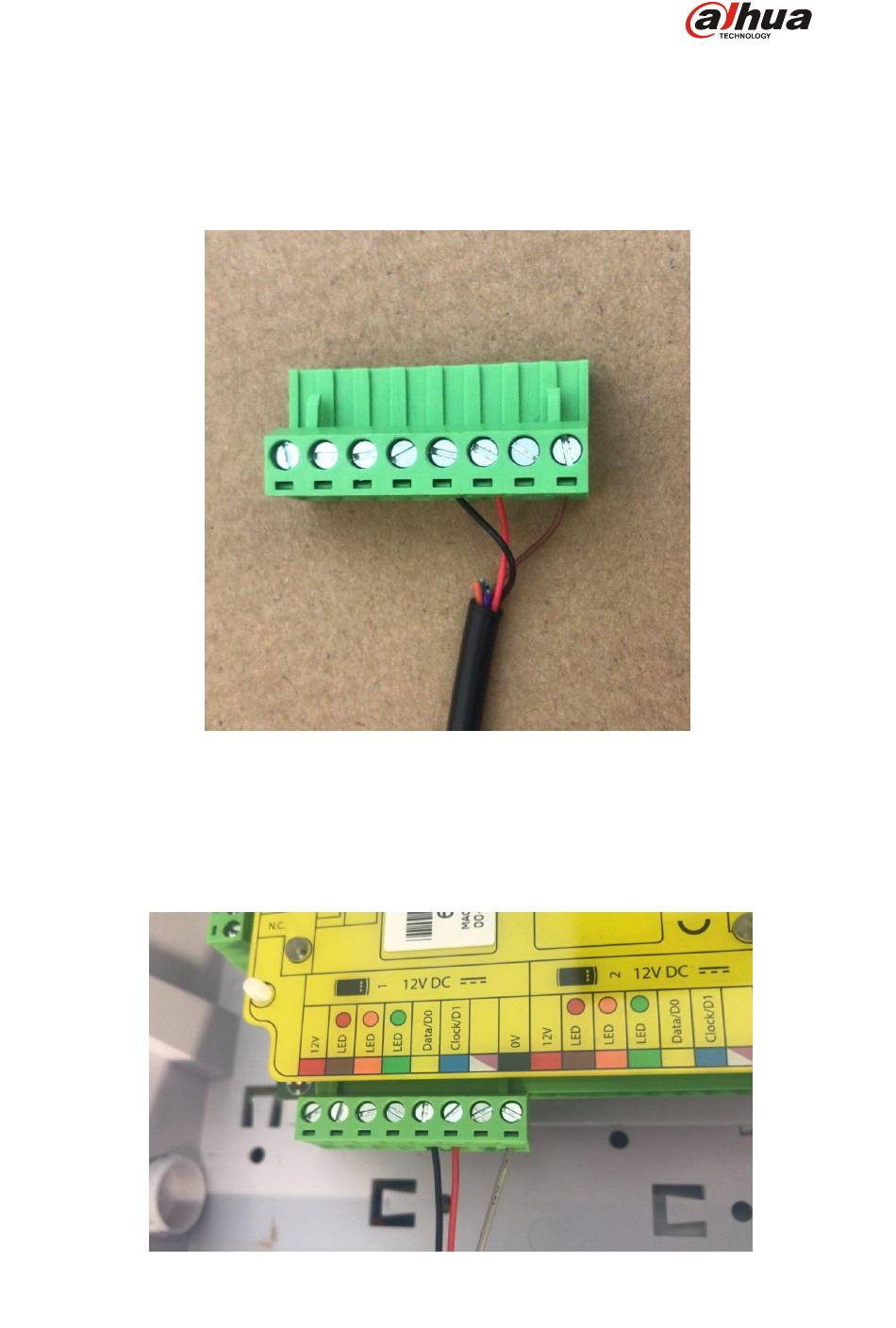

a) To connect the ANPR Camera with Net2 Plus Reader port, using a
Belden reader cable (as per Paxton specification).
Red
wire: D1 at ANPR –Clock/D1 on Net2 Plus Reader Port
Black wire: D0 at ANPR –Clock/D0 on Net2 Plus Reader Port
Brown
wire: GND at ANPR –0V on Net2 Plus Reader Port
