- Page 1 Pit+Plus Installation Guide Patent Pending...
- Page 2 Disconnect power before servicing. This equipment should be installed by technically qualified personnel. Failure to install it in compliance with national and local electrical codes and within Franklin Electric recommendations may result in electrical shock or fire hazard, unsatisfactory performance, or equipment failure.
-
Page 3: Table Of Contents
Table of Contents Before Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Features . -
Page 4: Features

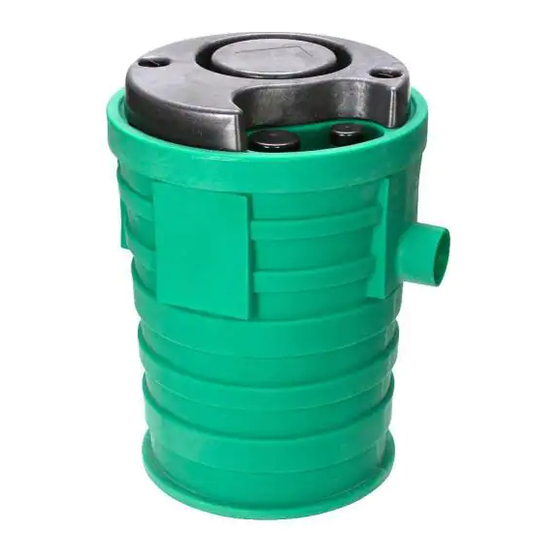

Pit+Plus Premium Simplex Package Systems Features Finish Cover (1) - A finish cover is provided with each basin to help protect the basin top from construction debris during installation. After basin installation, the cover can be removed for cleaning then reinstalled for a clean and finished look. Finish Flange Bolts (2) –... -
Page 5: Start Up Procedure
Pit+Plus Premium Simplex Package Systems Start Up Procedure Step 1 Remove finish cover and set aside. Step 2 Remove bolts and washers from pump access cover and set cover aside. Step 3 Observe position of pump. The pump should be upright with standoff feet located within the three (3) integral torque stops (Figure 1). - Page 6 Pit+Plus Premium Simplex Package Systems Step 6 External Level Control Option - If the basin is equipped with an External Control Module (ECM™), verify that the sensor tube extending from bottom of control module (Figure 3) is not damaged. Figure 3 Note: The cord/plug for the ECM™...
-
Page 7: Troubleshooting Guide
Pit+Plus Premium Simplex Package Systems Pit+Plus Troubleshooting Guide Condition Possible Cause Corrective Action Circuit breaker tripped or power Reset circuit breaker or correct electrical supply turned off 1. Disconnect electrical power Pump will not operate 2. Remove piggyback plug from outlet Switch failure 3. - Page 8 Pit+Plus Premium Simplex Package Systems ECM Troubleshooting Guide Condition Possible Cause Corrective Action Diaphragm switch Replace switch Weak or hardened rubber diaphragm Replace rubber diaphragm Plugged vent tube Clear vent tube of any obstructions Pump does not shut off. NOTE: Before troubleshooting Dirt or sediment lodged between automatic control, check to see retainer ring and rubber diaphgram...
-
Page 9: Replacement Parts
Pit+Plus Premium Simplex Package Systems Replacement Parts Replacement Parts Replacement Parts (Pit+Plus Jr. with ECM) (Pit+Plus Jr. with Floats) Replacement Parts Replacement Parts (Pit+Plus Sr. with ECM) (Pit+Plus Sr. with Floats) - Page 10 Pit+Plus Premium Simplex Package Systems Replacement Parts (Pit+Plus Jr. with ECM) REPLACEMENT PARTS ITEM PART NO. DESCRIPTION QTY. 113221101 Basin 2V2D 113221102 Basin 3V3D 113221103 Basin 2V3D 113221104 Basin 3V2D 113268 Finish Cover 113269 Finish Cover Wing Bolt 113250 Pump Access Cover 113251 Pump Access Cover Gasket 113277...
- Page 11 Pit+Plus Premium Simplex Package Systems Replacement Parts (Pit+Plus Jr. with Floats) REPLACEMENT PARTS ITEM PART NO. DESCRIPTION QTY. 113221101 Basin 2V2D 113221102 Basin 3V3D 113221103 Basin 2V3D 113221104 Basin 3V2D 113268 Finish Cover 113269 Finish Cover Wing Bolt 113250 Pump Access Cover 113251 Pump Access Cover Gasket 113274101...
- Page 12 Pit+Plus Premium Simplex Package Systems Replacement Parts (Pit+Plus Sr. with ECM) REPLACEMENT PARTS ITEM PART NO. DESCRIPTION QTY. 113221101 Basin 2V2D 113221102 Basin 3V3D 113221103 Basin 2V3D 113221104 Basin 3V2D 113268 Finish Cover 113269 Finish Cover Wing Bolt 113250 Pump Access Cover 113251 Pump Access Cover Gasket 113277...
- Page 13 Pit+Plus Premium Simplex Package Systems Replacement Parts (Pit+Plus Sr. with Floats) REPLACEMENT PARTS ITEM PART NO. DESCRIPTION QTY. 113221101 Basin 2V2D 113221102 Basin 3V3D 113221103 Basin 2V3D 113221104 Basin 3V2D 113268 Finish Cover 113269 Finish Cover Wing Bolt 113250 Pump Access Cover 113251 Pump Access Cover Gasket 113274101...
- Page 14 Pit+Plus Premium Simplex Package Systems Replacement Parts (ECM) REPLACEMENT PARTS ITEM PART NO. DESCRIPTION QTY. 113264 ECM Housing 113263 ECM Cover 902511 Screw #10 x 1-1/8 SST 950320 Switch 108125 Diaphragm 902404 Switch Holder Screw 108202 Switch Holder 951060 Wiring Harness 115 V 18 FT...
-
Page 15: Maintenance
Pit+Plus Premium Simplex Package Systems Maintenance Pump Removal and Installation Step 1 Disconnect pump and switch from power supply Step 2 Remove pump access cover and set aside Step 3 Remove cord grommet from the switch access cover then separate the pump power cord from the grommet. - Page 16 Pit+Plus Premium Simplex Package Systems Step 4 Remove the six (6) bolts securing the switch module to the basin and remove. Feed pump cord through the cord grommet opening until the switch module is free. Step 5 Remove float switch by loosening the plastic wing nut opposite the cord grip. Loosen the wing nut until the cord can be removed from the cord grip.
-
Page 17: Warranty
THIS WARRANTY SETS FORTH THE COMPANY’S SOLE OBLIGATION AND PURCHASER’S EXCLUSIVE REMEDY FOR DEFECTIVE PRODUCT. Franklin Electric Company, Inc. and its subsidiaries (hereafter “the Company”) warrants that the products accompanied by this warranty are free from defects in materials or workmanship of the Company that exist at the time of sale by the Company and which occur or exist within the applicable warranty period. - Page 18 The Company reserves the right at any time, and from time to time, to make changes in the design and/or improvements upon its product without thereby imposing any obligation upon itself to make corresponding changes or improvements in or upon its products already manufactured and/or previously sold. The Company further reserves the right to substitute parts or components of substantially equal quality in any warranty service required by operation of this Limited Warranty.
- Page 19 NOTES:...
- Page 20 Pour l’aide technique, entrez s’il vous plaît en contact ..800.701.7894 Para la ayuda técnica, por favor póngase en contacto..800.701.7894 www.littlegiant.com lgnet@fele.com Franklin Electric Co., Inc. Oklahoma City, OK 73157-2010 Form 998749 Phone: 1.800.701.7894 Rev.
