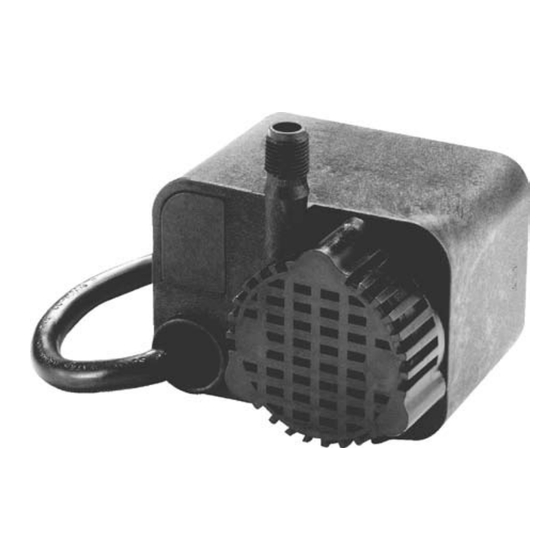

Small submersible epoxy encapsulated pump designed for light duty water recirculation. Ideal for statuary and water
displays. This compact 70 GPH pump features a 1/8" MNPT discharge, 4.0' shut-off head capability, screened inlet
and a 6' power cord.
PE-A Series
Features
Epoxy encapsulated motor
n
4.0' maximum lift
n
17 watts
n
1/8" MNPT discharge
n
Impedance protected
n
For submersible use only
n
Construction
Motor — 1/250 HP epoxy encapsulated
n
Maximum Flow Rate — 70 GPH @ 1'
n
Maximum Head — 4.0'
n
Intermittent Liquid Temp. up to — 120°F
n
Intake — Screened
n
Discharge — 1/8" MNPT
n
Housing — Glass-filled polyester
n
Cover — Glass-filled polyester
n
Volute — Glass-filled polyester
n
Impeller — Polypropylene
n
Shaft Seal — Viton
n
Screen — Polypropylene
n
Electrical — 115V, 60 Hz
n
Submersibles
®
Advertisement
Related Manuals for Franklin Electric Little Giant PE-A Series
Summary of Contents for Franklin Electric Little Giant PE-A Series
- Page 1 Submersibles PE-A Series Features Epoxy encapsulated motor 4.0' maximum lift 17 watts 1/8" MNPT discharge Impedance protected For submersible use only Construction Motor — 1/250 HP epoxy encapsulated Maximum Flow Rate — 70 GPH @ 1' Maximum Head — 4.0' Intermittent Liquid Temp. up to — 120°F Intake — Screened Discharge — 1/8" MNPT Housing — Glass-filled polyester Cover — Glass-filled polyester Volute — Glass-filled polyester Impeller — Polypropylene ® Shaft Seal — Viton Screen — Polypropylene Electrical — 115V, 60 Hz Small submersible epoxy encapsulated pump designed for light duty water recirculation. Ideal for statuary and water displays. This compact 70 GPH pump features a 1/8" MNPT discharge, 4.0' shut-off head capability, screened inlet and a 6' power cord.
- Page 2 PE-A Series Specifications Performance (GPH@Head) Shutoff Model Discharge Cord Weight Item No. Size Listing(s) Volts Hertz Amps Watts P.S.I. Length (ft.) (lbs.) PE-A 518100 1/8" MNPT UL/CSA 1/250 1.75 2.08 Replacement Parts Plate 118922 Impeller 118443 Screen 118904 PO Box 12010 • Oklahoma City, OK 73157 Phone: 800.701.7894 • Fax: 800.701.8046 E-mail: customerservice@littlegiant.com www.LittleGiantPump.com Form 995102 —...
- Page 3 Franklin Electric Co., Inc. or its authorized service center. DO NOT attempt repairs yourself. 3. No manipule la bomba con las manos mojadas, ni mientras se encuentre en una superficie mojada o 5.
- Page 4 GARANTIA LIMITADA pump, the distributor or dealer is to segregate such items and hold for inspection by a representative of Franklin Electric Co., El producto que Little Giant le ofrece está garantizado a estar en perfectas condiciones al momento de salir de la Inc.
