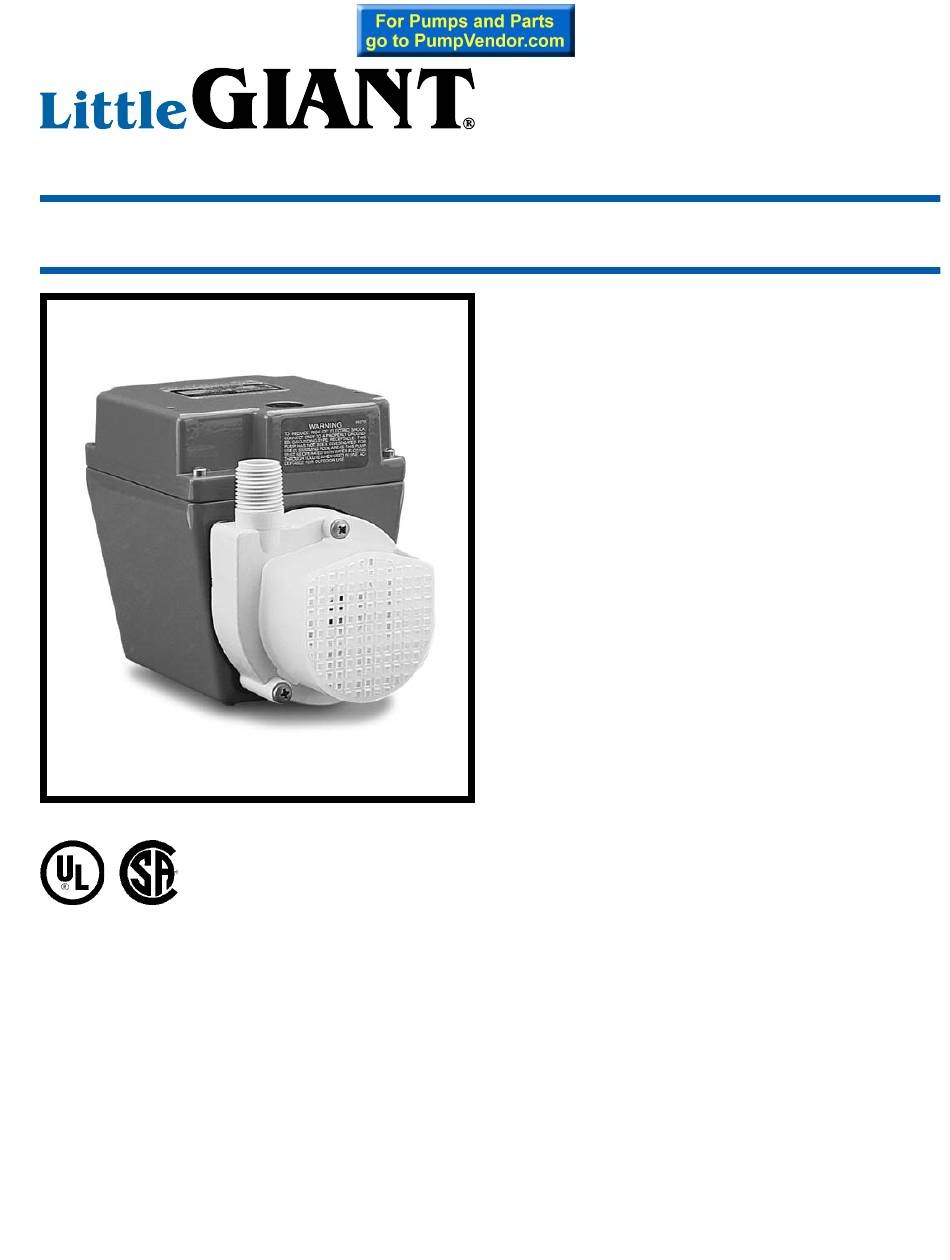

Dual purpose oil-filled pump that may be used totally submersed or in-line (fed with pipe or hose). For commercial,
industrial and home applications including statuary fountains, water displays, air conditioners, machine tool coolants,
and many other applications where liquid must be transferred or recirculated. This compact 500 GPH pump features a
1/2" MNPT discharge and 17.3' shut-off head capability.
3E-12N Series
Features
For submersed or in-line use
n
Epoxy coated die-cast aluminum housing
n
Oil-filled motor
n
17.3' maximum lift
n
200 watts
n
1/2" MNPT discharge (accepts 3/4" I.D. tubing)
n
Thermal overload protection
n
Construction
Motor — 1/15 HP oil filled
n
Maximum Flow Rate — 500 GPH @ 1'
n
Maximum Head — 17.3'
n
Intermittent Liquid Temp. up to — 120°F
n
Intake — 1/2" FNPT
n
Discharge — 1/2" MNPT
n
Housing — Epoxy coated cast aluminum
n
Cover — Epoxy coated cast aluminum
n
Volute — Nylon
n
Impeller — Nylon
n
Shaft Seal — Triple-lip Viton
n
Screen — Polypropylene
n
Dual Purpose Pumps
®
Advertisement
Related Manuals for Franklin Electric Little GIANT 3E-12N Series
Summary of Contents for Franklin Electric Little GIANT 3E-12N Series
- Page 1 Dual Purpose Pumps 3E-12N Series Features For submersed or in-line use Epoxy coated die-cast aluminum housing Oil-filled motor 17.3' maximum lift 200 watts 1/2" MNPT discharge (accepts 3/4" I.D. tubing) Thermal overload protection Construction Motor — 1/15 HP oil filled Maximum Flow Rate — 500 GPH @ 1' Maximum Head — 17.3' Intermittent Liquid Temp. up to — 120°F Intake — 1/2" FNPT Discharge — 1/2" MNPT Housing — Epoxy coated cast aluminum Cover — Epoxy coated cast aluminum Volute — Nylon Impeller — Nylon ® Shaft Seal — Triple-lip Viton Screen — Polypropylene Dual purpose oil-filled pump that may be used totally submersed or in-line (fed with pipe or hose). For commercial, industrial and home applications including statuary fountains, water displays, air conditioners, machine tool coolants, and many other applications where liquid must be transferred or recirculated. This compact 500 GPH pump features a 1/2" MNPT discharge and 17.3' shut-off head capability.
- Page 2 3E-12N Series Specifications Performance (GPH@Head) Shutoff Model Item Discharge Intake Cord Weight Size Size Listing(s) Volts Hertz Amps Watts P.S.I. Length (ft.) (lbs.) 3E-12N 503103 1/2" MNPT 1/2" FNPT 1/15 17.3 8.00 *3E-12N 503403 1/2" MNPT 1/2" FNPT 1/15 17.3 8.00 3E-12N 503500...
- Page 3 DIRECTIVES DE SECURITE 3E & 4E SERIES MODÈLES DE LA Franklin Electric SÉRIE 3E & 4E Veiller à débrancher l’appareil de sa source d’alimentation électrique avant l’entretien ou la dépose d’une P. O. Box 12010 ou de plusieurs piéces. Oklahoma City, OK 73157-2010 MODELOS DE LA Ne pas pomper des fluides explosifs ou inflammables tels qu’essence, mazout, kérosène, etc.
- Page 4 L’unique obligation du vendeur et du fabricant, et l’unique recours de l’acheteur, est le remplacement ou la réparation de la pompe selon les modalités décrites précédemment. NI LE VENDEUR NI LE FABRICANT NE PEUVENT ÊTRE TENUS RESPONSABLES DE TOUTE Little Giant® is a registered trademark of Franklin Electric Co., Inc.
