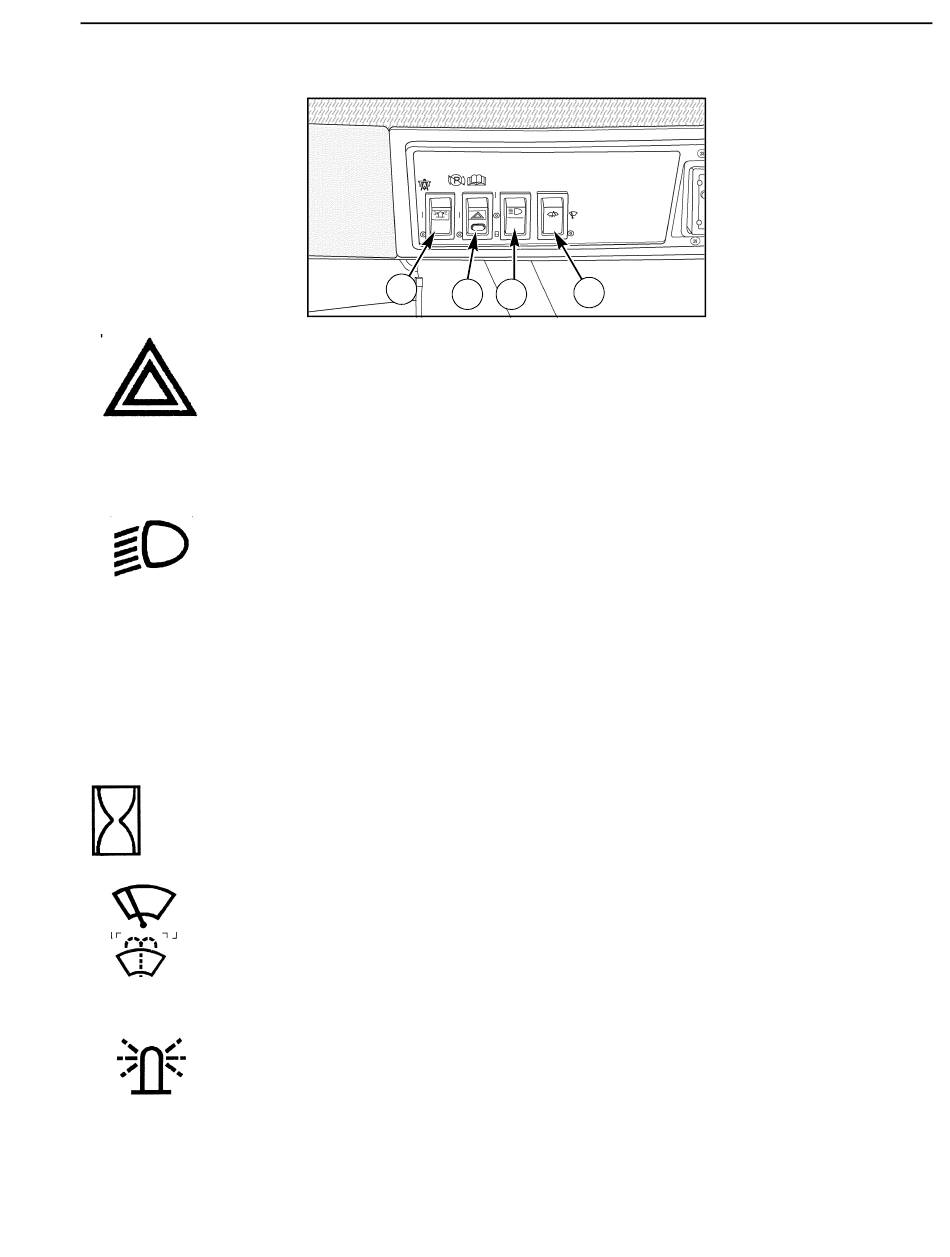

Front Headliner
1. HAZARD WARNING LAMPS/PARK BRAKE DISABLE SWITCH - Press top part of switch to
activate the amber warning lamps (2 lamps on the rear view mirrors and 2 lamps on the rear of the
Combine). Indicator lamp in switch flashes to indicate the hazard lamps are flashing. Press bottom
part of switch to turn OFF the hazard lamps. To activate Tow (Disable) circuit, lift detent lock and
press switch into third position, See Disabled Machine in this manual.
NOTE: Activating the hazard warning lamps when the lights are on converts the machine from the Field Lighting
Mode to the Road Lighting Mode (see 2.).
2. LAMP SWITCH - Press this switch to activate the machine lamps as follows:
FIELD WORK LIGHTING MODE (Light switch ON, hazard switch OFF): All four cab flood lamps,
both cab distance lamps, tail lamps, unloader tube lamp, grain tank lamp, rear deck flood lamp (if
equipped) and after cut lamps (if equipped) are activated. While in this lighting mode, moving the
turn signal switch to the Right turn position will activate the side flood lamps (if equipped) located
on either side of the grain tank.
ROAD TRANSPORT LIGHTING MODE (Light switch ON, hazard switch ON or beacon ON): All
four cab flood lamps and tail lamps will be activated. Both cab distance lamps will shift from high
beam to low beam. All other flood lamps will remain OFF. The Right turn signals return to normal
operation.
EXIT LIGHTING MODE (Lower portion of light switch is depressed momentarily): Both left and right grain
tank lamps are activated for 30 seconds.
3. WINDSHIELD WIPER SWITCH (If equipped) - To activate the windshield wiper, press the switch to
the center position. To deactivate the windshield wiper, press the switch to the rear. To activate
washer, press switch to the FORWARD position and hold. to deactivate the washer, let go of the
switch.
4. ROTATING BEACON LAMP SWITCH (If equipped) - Press this switch forward to the center
position, to activate the rotating beacons. Press this switch all the way forward where it is a legal
requirement for transporting the machine on the road.
NOTE: Activating the beacon lamp switch in the completely forward position converts the machine from the field
work lighting mode to the road transport lighting mode.
4 - INSTRUMENTS/CONTROLS
4
1 2
55
3
RD05D107
