1

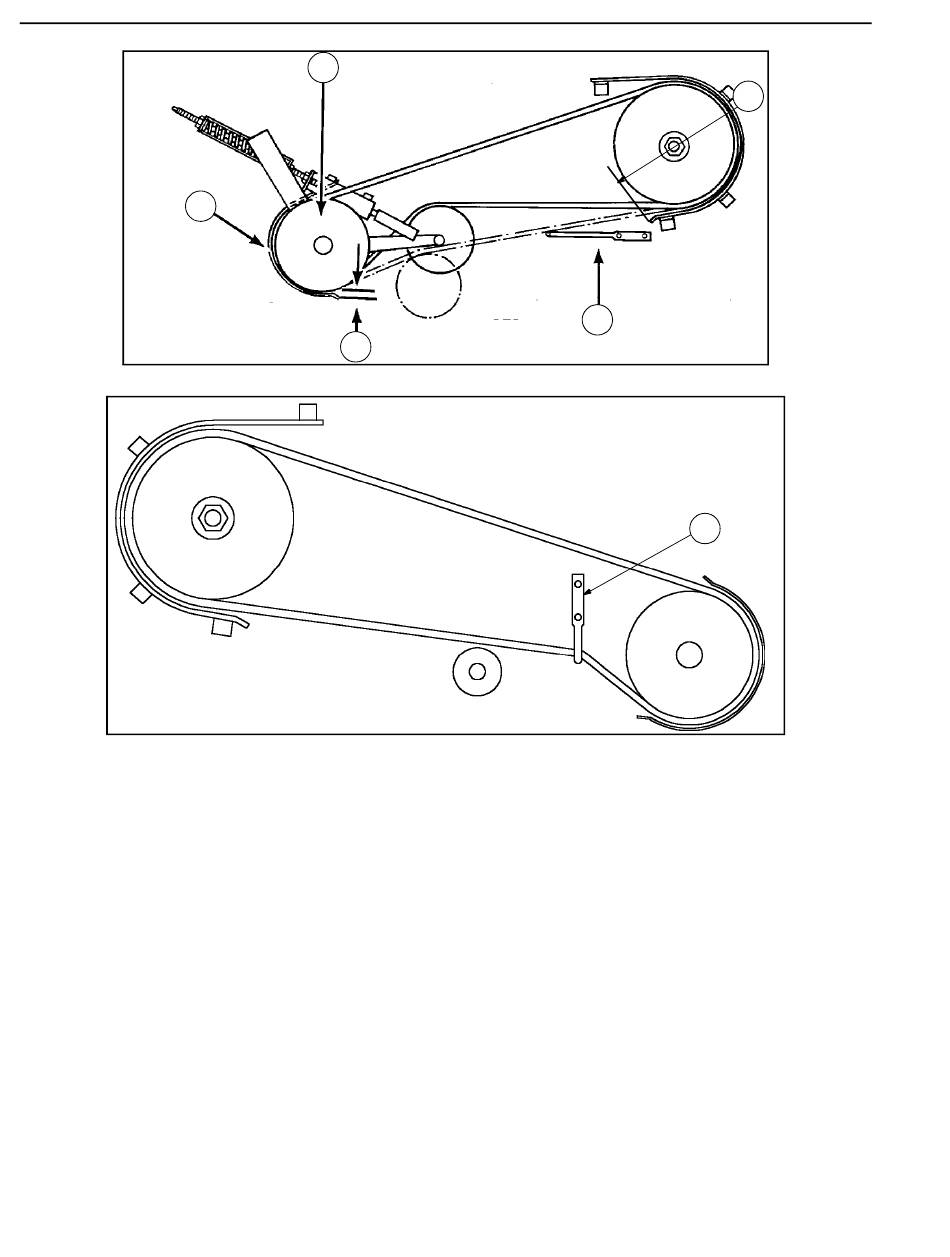

1. DRIVE PULLEY TRAP
2. SEPARATOR DRIVE PULLEY
7. Set the drive pulley shield, so that a clearance of 1/8 inch (3 to 6 mm) is between the shield and the drive pulley
(A).
Set separator belt support rod (3) so that belt is supported and lifted 2 to 4 mm (1/16 to 1/8 inch) off the driven
pulley trap entrance in the disengaged belt position.
Set separator belt guide rod (4) so that the clearance is 4 to 6 mm (3/16 to 1/4 inch) from the rear side of the belt in
the disengaged belt position.
Set separator belt lift rod (5) so that it lifts the separator belt 3 to 6 mm off the idler pulley, in the disengaged belt
position.
9 - MAINTENANCE/ADJUSTMENTS
2
A
3. SEPARATOR BELT SUPPORT ROD
346
4
3
215L7
5
RI01J012
