10 - ELECTRICAL SYSTEM
87310416

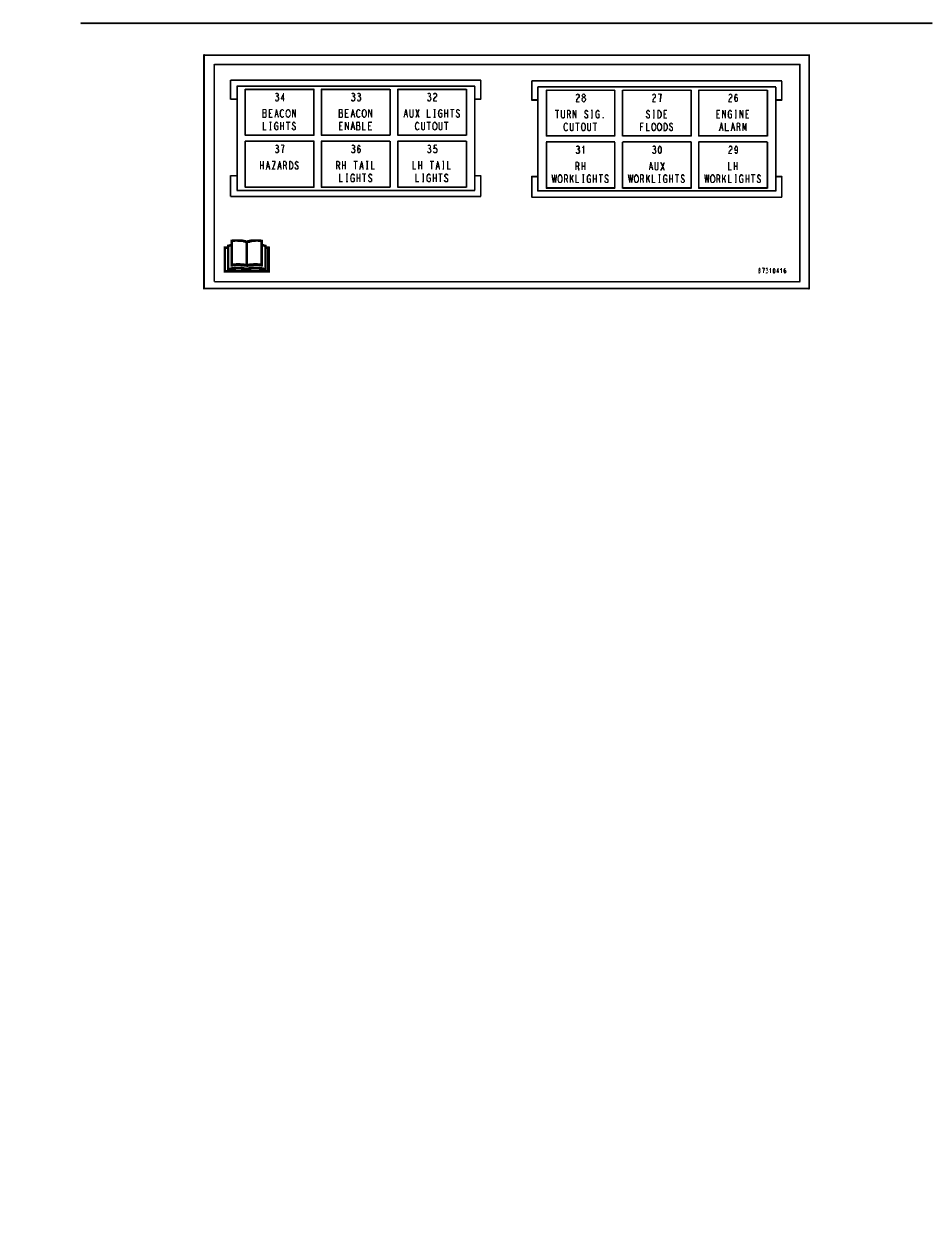

RELAYS
26........................................................................................................................................................... Engine Alarm
27....................................................................................................................................................Side Flood Lamps
28................................................................................................................................................... Turn Signal Cutout
29......................................................................................................................................................Left Work Lamps
30.............................................................................................................................................. Auxiliary Work Lamps
31..................................................................................................................................................... Right Work Lamp
32............................................................................................................................................. Auxiliary Lights Cutout
33........................................................................................................................................................ Beacon Enable
34.........................................................................................................................................................Beacon Lamps
35.......................................................................................................................................................... Left Tail Lamp
36........................................................................................................................................................ Right Tail Lamp
37.................................................................................................................................................................. Hazards
419
