Outside Trim
Device is packed ready for any
Yale 650F or 660F Series Trim.
WARNING
This product can expose
you to lead which is
known to the state of
California to cause cancer
and birth defects or other
reproductive harm. For
more information go to
www.P65warnings.ca.gov.
08/2018
(See Mortise Lock Chart)
(2) 12-12-24 FHPWMS
798 Universal Strike
Armor Front
Armor Front Screw
(2) 12-12-24 FHPWMS
ABBREVIATION
PPHMS
PHILLIPS PAN HEAD MACHINE SCREW
PRHMS
PHILLIPS ROUND HEAD MACHINE SCREW
FHPWMS
FLAT HEAD PHILLIPS WOOD/MACHINE SCREW
PHILLIPS UNDER CUT FLAT HEAD MACHINE SCREW
PUFHMS
Mortise Lock Chart
Function
Exit Only
F02
F03 (Knob)
F03 (Lever)
F05
F06 (Knob)
F08 (Lever)
An ASSA ABLOY Group brand
7130(F) Series Mortise Exit Devices
Mortise Lock
(2) 1/4-20 x 3/4" PRHMS
(Special Head)
FASTENER DESCRIPTION
Lock Number
Panic Label
Fire Label
35K
35KF
35L
35LF
38T
38TF
38K
38KF
38L
38LF
Installation Instructions
Hole Plug
(Fire Devices)

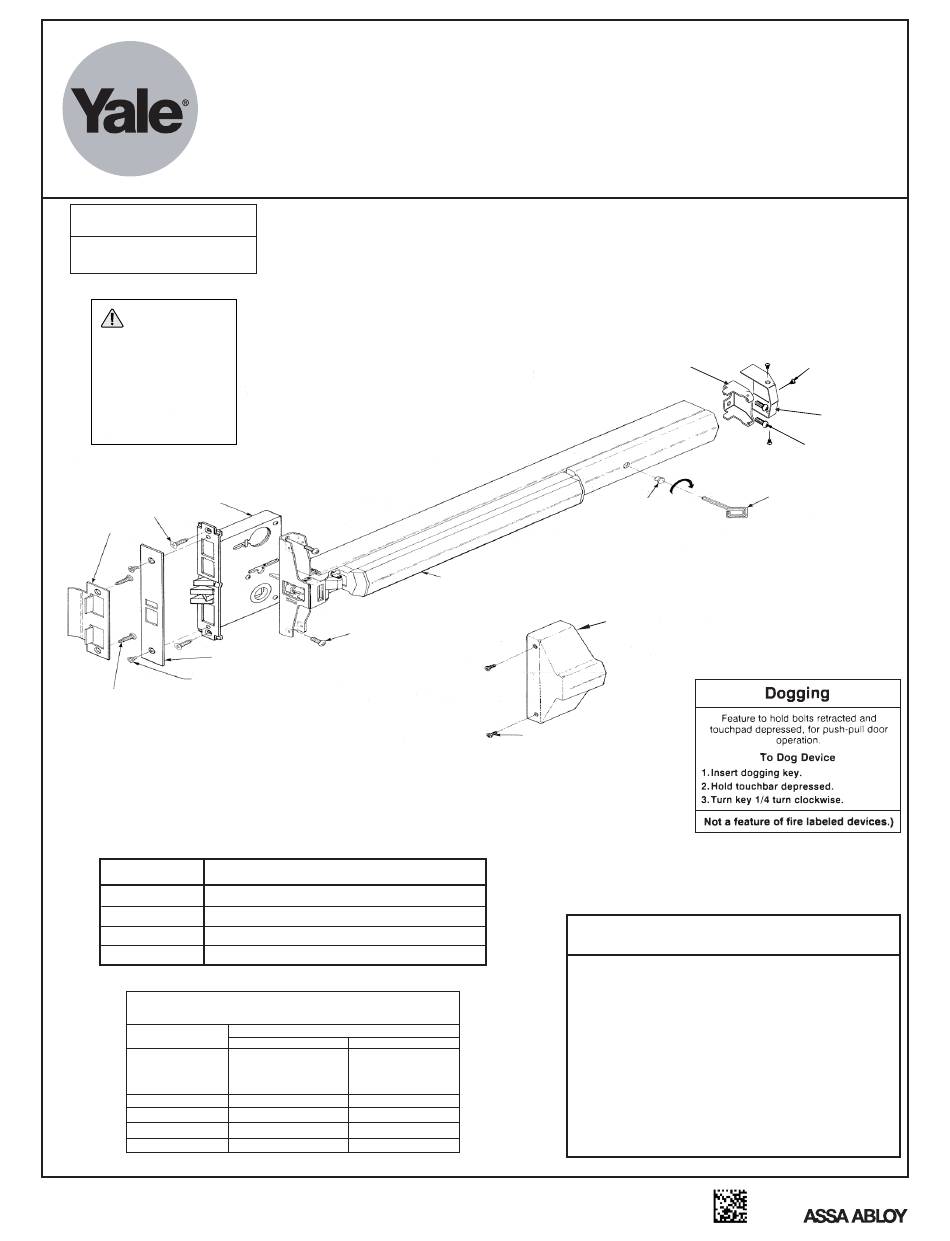

Device Assembly
(2) 8-32 x 5/16" PUFHMS
Any retrofit or other field modification to a fire rated
opening can potentially impact the fire rating of the
opening, and Yale Locks & Hardware makes no
representations or warranties concerning what such
impact may be in any specific situation. When
retrofitting any portion of an existing fire rated
opening, or specifying and installing a new fire-rated
opening, please consult with a code specialist or
local code official (Authority Having Jurisdiction) to
ensure compliance with all applicable codes and
ratings.
All dimensions are in inches (mm) unless otherwise noted.
(3) 8-32 x 5/16" PUFHMS
End Clamp
(2) 1/4-20 x 1" PPHMS
Dogging Key
Cover
Attention Installer
80-9470-0030-000 (11-18)
End Cap
