Series Touch Panel
E1S
E2
E3
E1
(Dimming)
(Dimming)
(CT)
(RGB)
www.ltech-led.com
Q
E4
E4S
series
E3S
remote
(RGB)
(RGBW)
(RGBW)
Ma ual
n

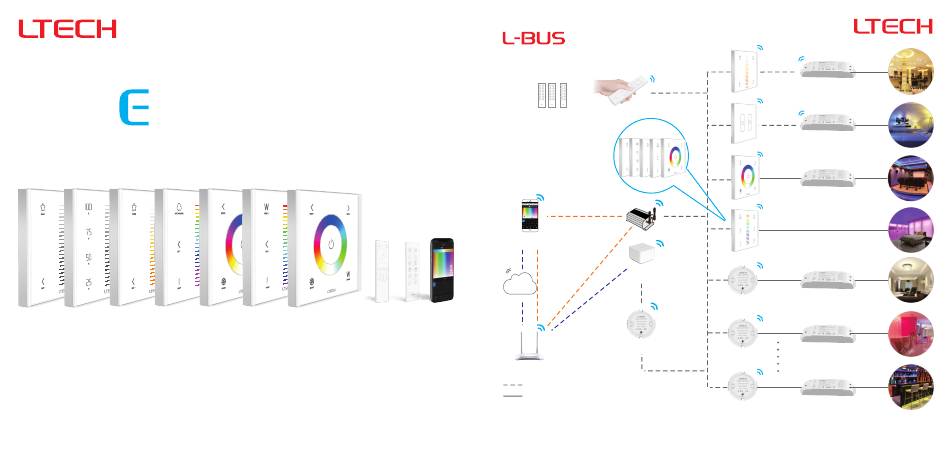

Wireless remote
E series
touch panel
Direct connect
Mobile phone
Cloud
service
F
series
APP
remote
Router
Wireless connection
Wired connection
Note: WiFi-106 is directly connected to the mobile phone or controlled by local LAN.
WiFi-108 can be controlled by remote or local LAN, and supports amazon ECHO, Alibaba TmallGenie
AI voice speaker.
E series panel does not support advanced mode functions when working with WiFi-108.
RF
Wireless driver
RF
Wireless driver
DMX512
12-24Vdc
WiFi gateway
DMX512
DMX LED driver
RF to DMX
0-10V
RF relay
0-10V LED driver
RF
to 0-
10V
Phase-cut
RF to phase-cut
DMX driver
Triac LED driver
1
Advertisement
Table of Contents
Related Manuals for Ltech E Series
Summary of Contents for Ltech E Series
- Page 1 Note: WiFi-106 is directly connected to the mobile phone or controlled by local LAN. WiFi-108 can be controlled by remote or local LAN, and supports amazon ECHO, Alibaba TmallGenie AI voice speaker. E series panel does not support advanced mode functions when working with WiFi-108.
-
Page 2: Product Features

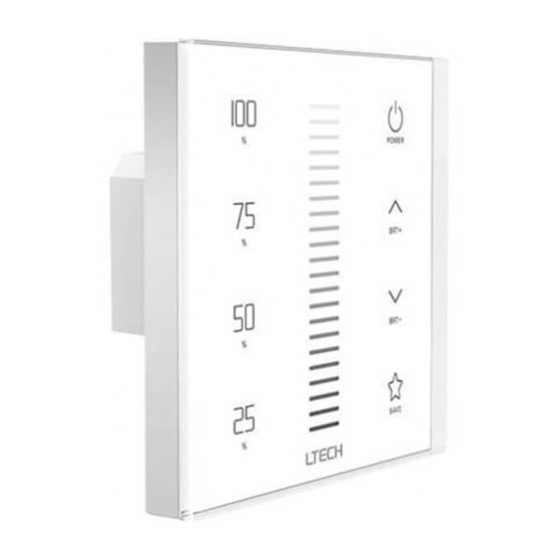

Installation Instruction Product Features ● 2 in 1 function: RF wireless control and PWM power output. ● Power output, lamps can be connected directly, easy and convenient. ● Touch keys with chord and LED indicator. ● Adopts capacitive touch control technology on the full color circle makes LED dimming selection more user-friendly. -
