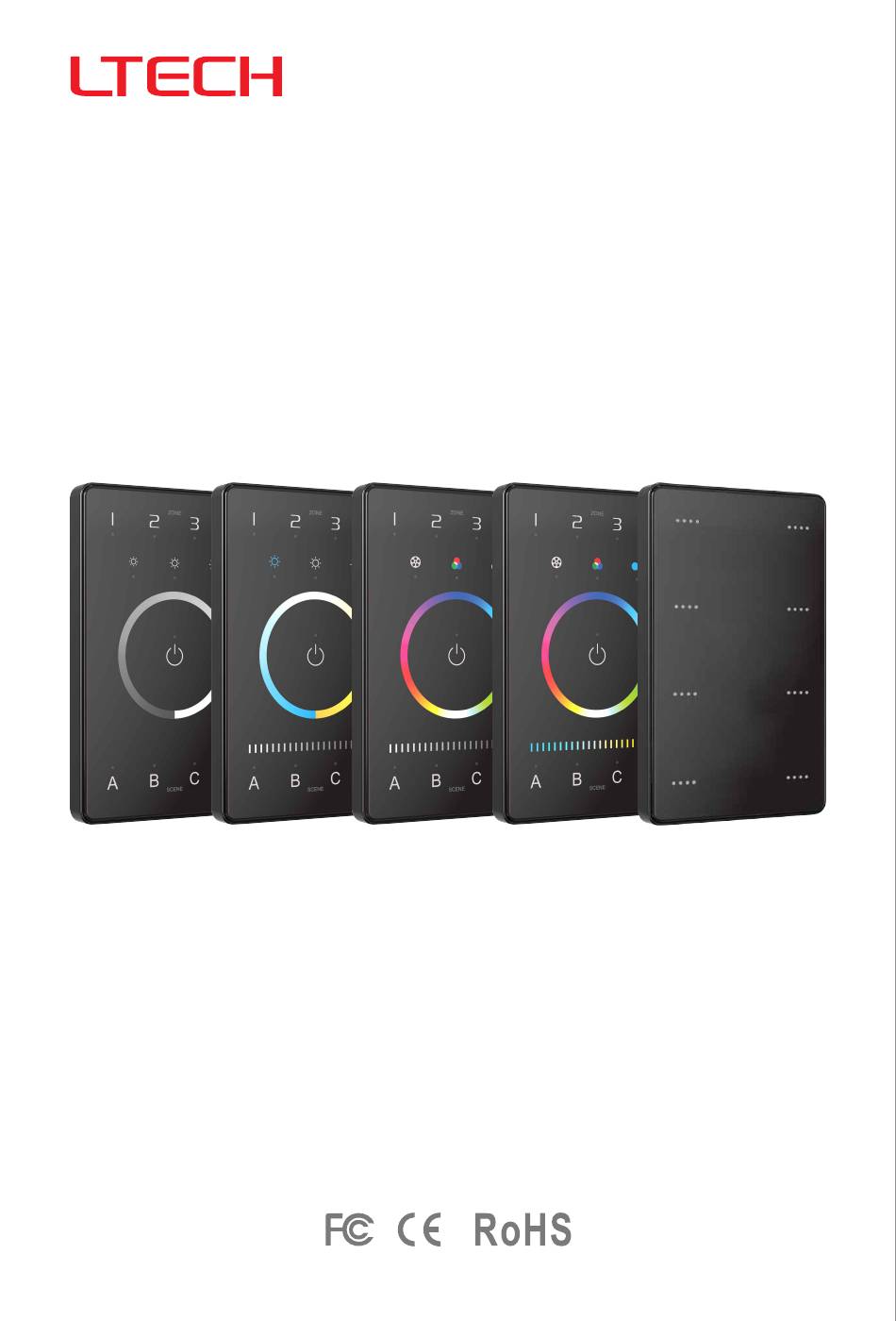

- Page 1 Intelligent Touch Panel (Bluetooth + DMX / Programmable) Manual www. ltech-led. com...
-
Page 2: Product Introduction
Product Introduction The Intelligent Touch Panel is an American base wall switch, integrating Bluetoot h 5.0 mesh protocol and DMX signals. It is a simple but elegant design with CNC aviation aluminum frame and 2.5D tempered glass. The panel is suitable for multi-scene and multi-zone lighting control applications. -
Page 3: Product Size
Product Size Unit: mm 29.5 43.5 (Top View) (Bottom View) -
Page 4: Key Functions
Key Functions 1- 4 Zone keys Short press: Turn ON Brightness shortcuts Select/Deselect the zone 25%, 50%, 100% Long press: Turn OFF Short press: All ON/OFF Touch color circle (DIM) 4 Scene keys Short press: Play scene and save scene 1- 4 Zone keys Short press: Turn ON Select/Deselect the zone... - Page 5 Key Functions 16 modes 1- 4 Zone keys Short press: Play mode Short press: Turn ON Long press: Adjust speed Select/Deselect the zone Long press: Turn OFF Short press: ON/OFF RGB Short press: Turn ON/OFF white color Touch color circle (RGB) Touch slider bar (BRT) 4 Scene keys Short press: Play scene...
- Page 6 Key Functions Eight buttons Press it to execute the scene after setting the scene for the button on APP...
-
Page 7: Installation Instructions
Installation Instructions Step 1: Remove the panel plate with a flathead screwdriver, as shown below. Step 2: Attach the wires to the panel, as shown in the diagram below . Please be sure to turn off the power to the circuit at the circuit breaker or fuse box before attaching the wires. - Page 8 Step 3: Install the panel plate. Once the wires are attached correctly, you can gently fold any excess wire and compress the panel into the junction box. Tighten the screws to secure the panel plate to the box. Glass panel cover Junction box Panel plate Step 4: Put the panel cover in place.
-
Page 9: Warranty Agreement
1. Repair or replacement provided is the only remedy for customers. LTECH is not liable for any incidental or consequential damage unless it is within the law. 2. LTECH has the right to amend or adjust the terms of this warranty, and release in writte n form shall prevail.
