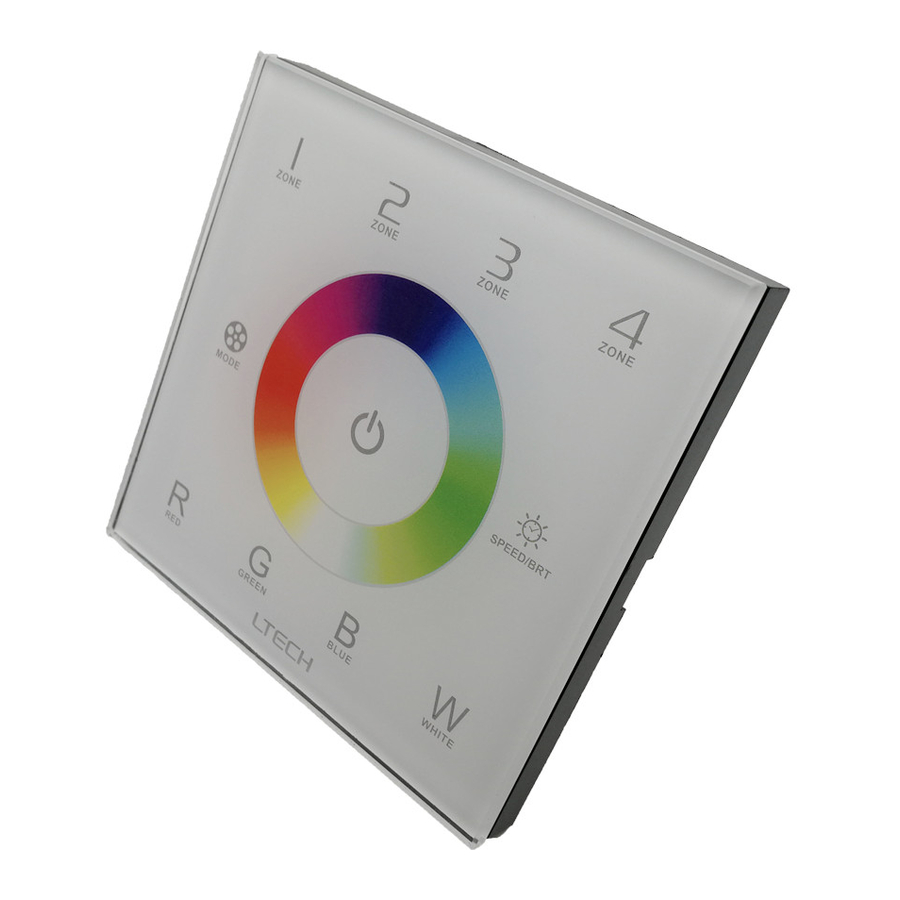

DX8 TOUCH PANEL | D SERIES
CODE
BL-PC-DX8
INPUT VOLTS
100-240V DC
OUTPUT
RF 2.4GHz + DMX512
SIGNAL
RF REMOTE
30m
DISTANCE
CONTROL
4 Zones Control
MODE
DIMENSIONS
W86 x L86 x D36mm
OPERATING
-30°C ~ +55°C
TEMP.
WEIGHT
225g
INGRESS
Indoor use only
PROTECTION
WARRANTY
5 years
86mm
36mm
R4-5A | CV RECEIVER
R4-CC | CC RECEIVER
INPUT VOLTS
5-24V DC
INPUT VOLTS
MAX CURRENT
5A×4CH Max 20A
OUTPUT VOLTS
LOAD
MAX OUTPUT
5V DC - 100W
OUTPUT
POWER
12V DC - 240W
CURRENT
24V DC - 480W
DIMENSIONS
W44 x L175 x D30mm
MAX OUTPUT
POWER
OPERATING
-30°C ~ +55°C
DIMENSIONS
TEMP.
WEIGHT
150g
OPERATING TEMP.
WEIGHT
1. INSTALLATION INSTRUCTIONS
Install
Uninstall
No wall flush box supplied/required. Units come with a
mounting plate, simply screw it through the wall and cut
out a hole in the centre
2. TERMINALS
100-240V AC
DMX Signal Output Socket
Power Input Socket
3. KEY FUNCTIONS
12-48V DC
3-46V DC
4 Zone Selection Keys
On - Short press.
CC
Off - Long press.
350/700/1050mA×4CH
On/Off
1.05W~48.3W×4CH
Long press to turn
Max 193.2
the tone on/off
W44 x L175 x D30mm
Mode Key
-30°C ~ +55°C
Brightness Adjust
Key of RGBW
165g
4. OPERATING INSTRUCTIONS FOR RECEIVER
5. THE LEARNING ID METHOD
Learning ID - Short press the "ID Learning Button" on the R4-5A/R4-CC receiver, the Running Light will
stay on. Then press any zone number on the DX8 touch panel, when you hear a long beep it has been
activated and the receiver accepted zone control.
Cancelled ID - Long press "ID Learning Button" on the R4-5A/R4-CC receiver for 5sec, until you hear a
long beep indicating it has been cancelled.
Attention - Multiple receivers could be synced to each zone.
INSTALLATION GUIDE
The Changing Mode
1. Static Red
2. Static Green
3. Static Blue
4. Static Yellow
5. Static Purple
Touch Circle
6. Static Cyan
7. Static White
Brightness
8. RGB Skipping
/ Speed
9. 7 Colours
Skipping
10. RGB Smooth
11. Full Colour
Smooth
0800 952 000 | www.brightlight.co.nz | BRIGHTLIGHT
