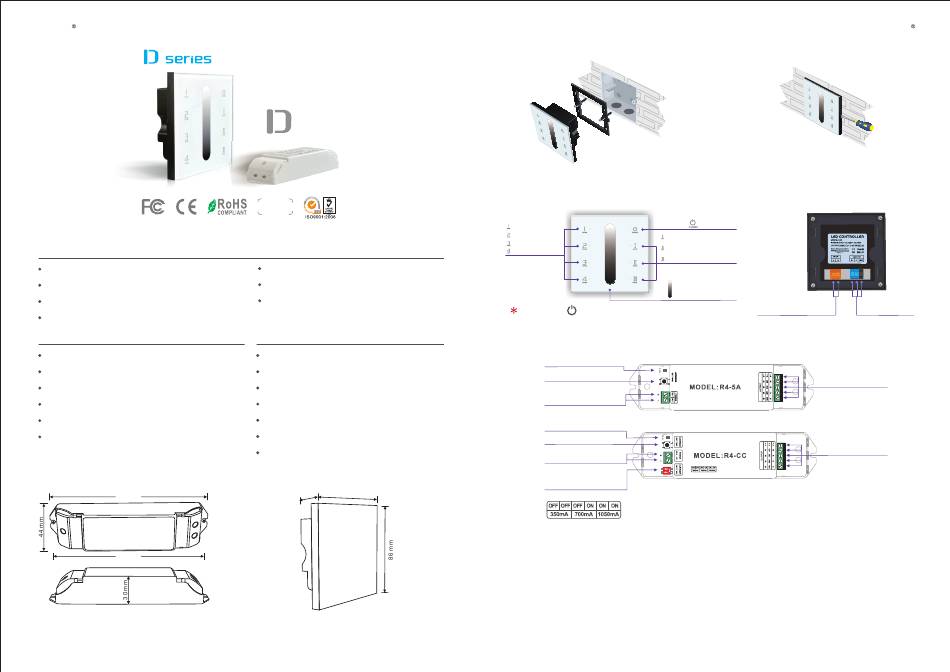

Ltech D Series Manual

LTECH
1. Technical Specs:
DX5 Dimming Touch Panel
Input Voltage: AC100~240V
Output Signal: RF 2.4G + DMX512
RF Remote Distance: 30m
Control Mode: 4 Zones Control
R4-5A CV Receiver
Input Voltage: DC5V~DC24V
Max Current Load: 5A × 4CH Max. 20A
Max Output Power: 100W/240W/480W(5V/12V/24V)
Working Temperature: -30℃~55℃
Package Size: L178×W48×H33(mm)
Weight(G.W.): 150g
2. Product Size:
175mm
170mm
R4-5A/R4-CC Receiver
DX5 Dimming Touch Panel Manual
t o u c h p a n e l
X5
warranty
5 years
Working Temperature: -20℃~60℃
Package Size: L113×W112×H50(mm)
Weight(N.W.): 225g
R4-CC CC Receiver
Input Voltage: DC12V~DC48V
Output Voltage: DC3V~DC46V
Output Current: CC 350/700/1050mA×4CH
Output Power: 1.05W~48.3W×4CH Max 193.2W
Working Temperature: -30℃~55℃
Package Size: L178×W48×H33(mm)
Weight(G.W.): 165g
3 6 m m 86mm
Touch Panel
— 1 —
DX5 Dimming Touch Panel Manual
3. Installation Instruction:
Install
4. Key Functions:
4 Zones
Selection
Keys
Scene-save Keys
Long press to save
current scene.
Touch Slider
Long press to turn on/off the buzzer.
6. Operating Instruction for Receiver:
The Running Light
ID learning Button
DC5V~24V
Power Input Socket
The Running Light
ID learning Button
DC12V~48V
Power Input Socket
Current Selection
Switch
（Operation Table）
7. The Learning ID Method :
Short press "ID learning button" on the R4-5A/R4-CC receiver, the running light keeps
Learning ID:
on. Then press any zone No. on the DX5 touch panel, the running light flickers
several times, activated. the receiver accept zone control.
Long press "ID learning button" on the R4-5A/R4-CC receiver for 5s, the running
Canceling ID:
light flickers several times, canceled.
Att: Multiple receivers could be synced to each zone.
Tel: +86 756 620 8811 Fax: +86 756 620 8833
Uninstall
5. Terminals:
ON/OFF
Brightness
AC100-240V
Power Input Socket Output Socket
LED Lamp
Connection Socket
LED Lamp
Connection Socket
— 2 —
LT@LTECH.CN
WWW.LTECH.CN
LTECH
DMX Signal
