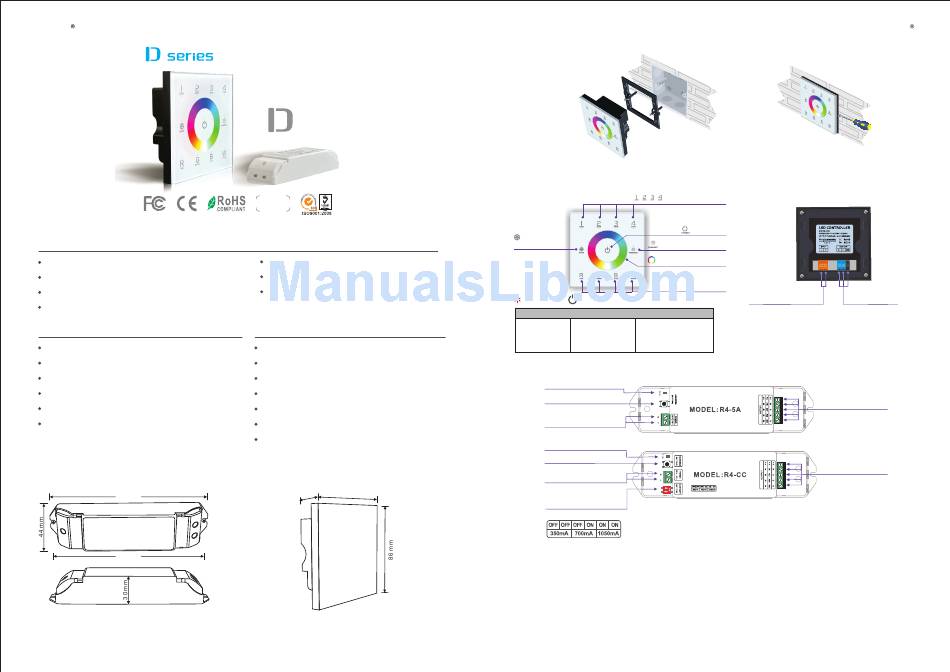

Ltech DX8 Manual

LTECH
1. Technical Specs:

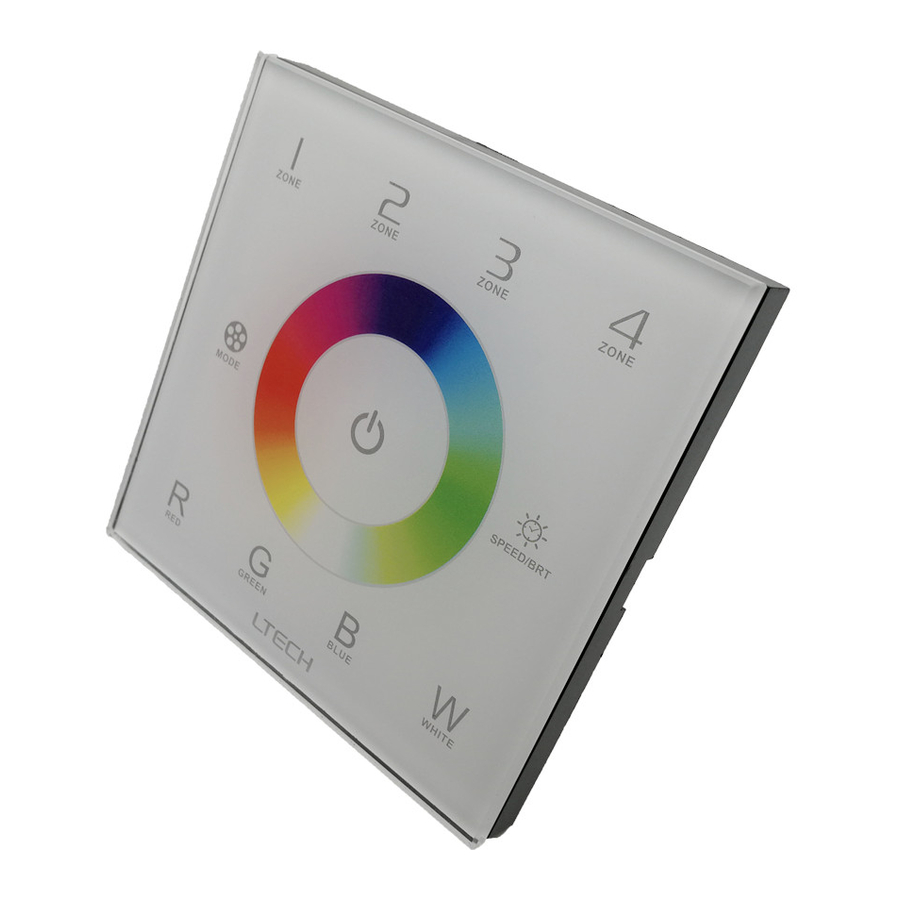

DX8 RGBW Touch Panel
Input Voltage: AC100~240V
Output Signal: RF 2.4G + DMX512
RF Remote Distance: 30m
Control Mode: 4 Zones Control
R4-5A CV Receiver
Input Voltage: DC5V~DC24V
Max Current Load: 5A × 4CH Max. 20A
Max Output Power: 100W/240W/480W(5V/12V/24V)
Working Temperature: -30℃~55℃
Package Size: L178×W48×H33(mm)
Weight(G.W.): 150g
2. Product Size:
175mm
170mm
R4-5A/R4-CC Receiver
DX8 RGBW Touch Panel Manual
t o u c h p a n e l
X8
warranty
5 years
Working Temperature: -20℃~60℃
Package Size: L113×W112×H50(mm)
Weight(N.W.): 225g
R4-CC CC Receiver
Input Voltage: DC12V~DC48V
Output Voltage: DC3V~DC46V
Output Current: CC 350/700/1050mA×4CH
Output Power: 1.05W~48.3W×4CH Max 193.2W
Working Temperature: -30℃~55℃
Package Size: L178×W48×H33(mm)
Weight(G.W.): 165g
3 6 m m 86mm
Touch Panel
— 1 —
DX8 RGBW Touch Panel Manual
3. Installation Instruction:
Install
4. Key Functions:
4 Zones
Selection Keys
Mode Key Brightness/Speed
Touch Color Circle
Brightness Adjust
Key of RGBW
Long press to turn on/off the buzzer.
Tables of Changing Mode:
1. Static Red 5. Static Purple 9. 7 Colors Skipping
2. Static Green
6. Static Cyan 10. RGB Color Smooth
3. Static Blue 11. Full-color Smooth
7. Static White
4. Static Yellow 8. RGB Skipping
6. Operating Instruction for Receiver:
The Running Light
ID learning Button
DC5V~24V
Power Input Socket
The Running Light
ID learning Button
DC12V~48V
Power Input Socket
Current Selection
Switch
（Operation Table）
7. The Learning ID Method :
Learning ID: Short press "ID learning button" on the R4-5A/R4-CC receiver, the running light keeps
on. Then press any zone No. on the DX8 touch panel, the running light flickers
several times, activated. the receiver accept zone control.
Long press "ID learning button" on the R4-5A/R4-CC receiver for 5s, the running
Canceling ID:
light flickers several times, canceled.
Att: Multiple receivers could be synced to each zone.
Tel: +86 756 620 8811 Fax: +86 756 620 8833
LTECH
Uninstall
5. Terminals:
ON/OFF
AC100-240V DMX Signal
Power Input Socket Output Socket
LED Lamp
Connection Socket
LED Lamp
Connection Socket
— 2 —
