Ltech EX1S Manual

Technical Specs
Dimming Touch Panel
EX1S
Input Voltage: 100~240Vac
Output Signal: RF 2.4GHz, DMX512
(Dimming)
Working Temp.: -30℃~55℃
F4-3A CV Receiver
Input Voltage: 5~24Vdc
Current Load: 3A × 4CH Max. 12A
Max Output Power: 60W/144W/288W(5V/12V/24V)
Wireless Signal: 2.4GHz
F4-5A CV Receiver
Input Voltage: 5~24Vdc
Current Load: 5A × 4CH Max. 20A
Max Output Power: 100W/240W/480W(5V/12V/24V)
Wireless Signal: 2.4GHz
F4-CC
CC Receiver
Input Voltage:
12~48Vdc
EX1S F1 Receiver Output Voltage:
3~46Vdc
Output Current:
CC 350/700/1050mA×4CH
Output Power: 1.05W~48.3W×4CH Max 193.2W
Ma ual n
Wireless Signal: 2.4GHz
www.ltech-led.com
Note: Receiver is sold separately.

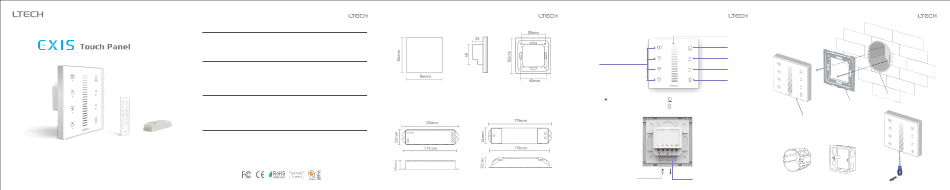

Product Size:
Dimensions: L86×W86×H36(mm)
Package Size: L113×W112×H50(mm)
Weight(G.W.): 225g
Working Temp.: -30℃~55℃
Dimensions: L125×W33×H20(mm)
Package Size: L127×W35×H24(mm)
Weight(G.W.): 60g
EX1S
Working Temp.: -30℃~55℃
Dimensions: L175×W44×H30(mm)
Package Size: L178×W48×H33(mm)
Weight(G.W.): 150g
Working Temp.:
-30℃~55℃
Dimensions:
L175×W44×H30(mm)
Package Size: L178×W48×H33(mm)
Weight(G.W.): 165g
F4-3A
Key Functions:
Brightness Shortcut Keys
When the touch panel is off, Long press to turn on/off the buzzer
When the touch panel is on ,Long press to match code.
Terminals:
DMX Signal
100-240V ac
Power Input Output
F4-5A/F4-CC
Installation Instruction:
Brightness
Touch Slider
ON/OFF
Brightness+
Brightness-
Scene - mode
Short press: play
Long press: save
Back box
Baseplate
Touch panel
Typical back box as below:
European style 86 size
Uninstall
