Procedures for using the Unitech Portable Data Terminal
Scan Button
Power Button

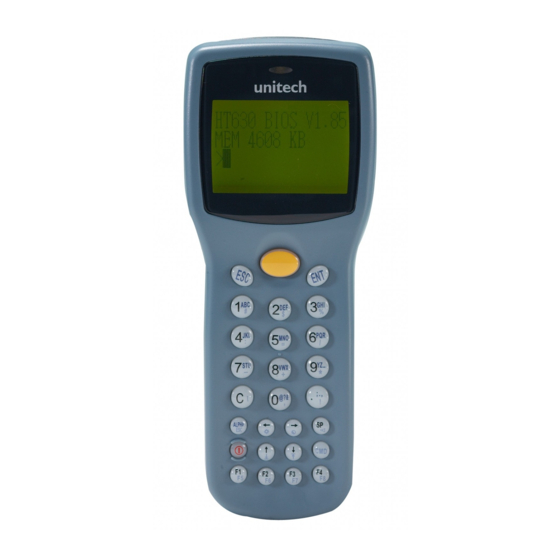

In order to begin using your Unitech HT630, all you need to do is turn on the unit. The unit has been pre-
programmed with both the Evidence.exe and the Asset.exe. You can turn on the power by pressing the red power button
as indicated in the above diagram. There is no specific unit configuration for this model.
Running a program
1. Turn on the unit by pressing the red power button.
2. Press and hold the CMD key for 2 seconds to get to the main menu.
3. Select 1. Run, then ENT.
4. Scroll by using the arrow keys to find the appropriate program, either EVIDENCE.EXE or ASSET.EXE. Elect ENT
to execute the program.
5. Once the program has started, you can begin your full audit.
Performing an Audit for Evidence
1. Turn on the unit by pressing the red power button.
2. Press and hold the CMD key for 2 seconds to get to the main menu.
3. Select 1. RUN, then ENT.
4. Scroll by using the arrow keys to find the EVIDENCE.EXE program. Elect ENT to execute the program.
PMI Evidence Tracker™
"ENT" Enter Button
"CMD" button
Advertisement
Table of Contents
Related Manuals for Unitech PMI Evidence Tracker
Summary of Contents for Unitech PMI Evidence Tracker
- Page 1 “CMD” button In order to begin using your Unitech HT630, all you need to do is turn on the unit. The unit has been pre- programmed with both the Evidence.exe and the Asset.exe. You can turn on the power by pressing the red power button as indicated in the above diagram.
- Page 2 PROGRESSIVE MICROTECHNOLOGY, INC. 2 of 7 5. The first screen will ask for the Auditor’s Name. Either scan or enter the name by hand using the keypad. If you scan the name, the program will automatically go to the next entry, otherwise, once you have finished entering the name, press ENT to continue.
- Page 3 PROGRESSIVE MICROTECHNOLOGY, INC. 3 of 7 7. Enter the Item Number. You can scan or enter the Item Number by using the keypad. If you scan the Item Number, the program will automatically go to the next entry, otherwise, once you have finished entering the Item Number, press ENT to continue.
- Page 4 PROGRESSIVE MICROTECHNOLOGY, INC. 4 of 7 Performing an Asset Audit 1. Turn on the unit by pressing the red power button. 2. Press and hold the CMD key for 2 seconds to get to the main menu. 3. Select 1. RUN, then ENT. 4.
- Page 5 PROGRESSIVE MICROTECHNOLOGY, INC. 5 of 7 7. Enter the Asset ID Number. You can scan or enter the Asset ID number by using the keypad. If you scan the Asset ID Number, the program will automatically go to the next entry, otherwise, once you have finished entering the Asset ID Number, press ENT to continue.
- Page 6 3. Open PtComm Manager. You can find the PtComm Manager program in the following location: a. Locate the Unitech folder under pmi_evidence. b. In that folder, you will find another folder named Direct Connect Transfer File. Double click to open the folder.
- Page 7 7. When you are finished deleting, press ESC to return to the Main Menu. Please contact PMI if you have any questions or issues with using this device. You can also contact Unitech technical support at (800) 861-8648 if you experience issues with the hardware or visit their website at www.ute.com ...
