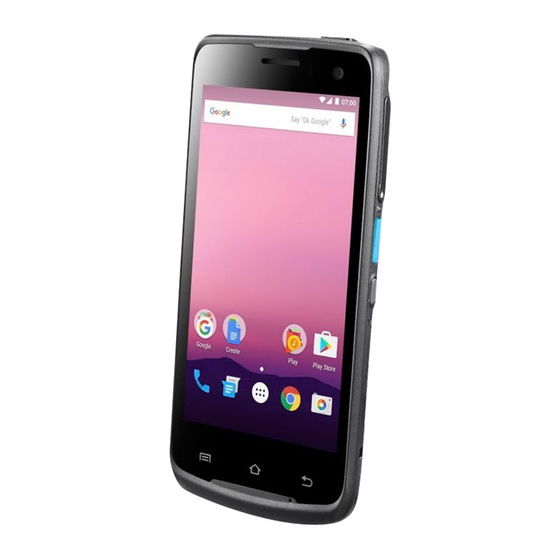

Unitech EA500 User Manual

Handheld data terminal

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Handheld Data Terminal

- EA500 -

User's Manual

Version 0.1

unitech is a registered trademark of unitech Electronics Co., Ltd.

Table of Contents

Summary of Contents for Unitech EA500

Page 4 1.5 cm from the body. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. © 2018 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
Page 5 Canada. European Conformity Statement unitech Electronics co., Ltd herewith declares that the unitech product is in compliance with the essential requirements and all other provisions of the R&TTE 1999/5/EC directive, the EMC 2004/108/EC directive and the Low Voltage 2006/95/EC directive.
Page 6 Waste electrical and electronic equipment (WEEE) unitech has set up a policy and process to meet the EU directive 2002/96/EC and update 2003/108/EC concerning electronic waste disposal.
Page 7 Taiwan NCC Warning Statement 低功率電波輻射性電機管理辦法第十二條：經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。第十四條：低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。低功率射頻電機需忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。注意事項: 1. 使用過度恐傷害視力。 2. 使用30分鐘請休息10分鐘；2歲以下幼兒不看螢幕，2歲以上每天看螢幕不要超過 1小時。 3. 減少電磁波影響，請妥適使用。 © 2018 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
Page 8 Laser Information The unitech product is certified in the U.S. to conform to the requirements of DHHS/CDRH 21CFR Subchapter J and to the requirements of IEC 825-1. Class II and Class 2 products are not considered to be hazardous. The unitech product contains internally a Visible Laser Diode (VLD) whose emissions do not exceed the maximum limits as set forth in the above regulations.
Page 9 It may not be functional anymore. Please only use the original battery from unitech. Using a third party battery can damage our products. Please note that when such damage occurs, it is not covered by unitech’s warranty policy.
Page 10 * The message above only applies to the usage of the removable batteries. For the products with non-removable batteries / without batteries, please refer to the specification of each product. viii © 2018 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
Page 11 Please remove the power adapter when the battery is fully recharged. The bundled power adapter that comes with your unitech product is not meant to be used outdoors. An adapter exposed to water or rain, or a very humid environment can cause damage to both the adapter and the product.
Page 12 Alternatively, the entire warning may be given through the equipment display during use, when the user is asked to acknowledge activation of the higher level. © 2016 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
Page 13 Worldwide Support unitech’s professional support team is available to quickly answer questions or assist with technical-related issues. Should an equipment problem occur, please contact the nearest unitech regional service representative. For complete contact information please visit the Web sites listed below: Taipei, Taiwan –...
Page 14 The warranty period is varied from each country. Please consult with your supplier or unitech local office for actual length of warranty period to your purchased product. Warranty becomes void if equipment is modified, improperly installed or used, damaged by accident or neglect, or if any parts are improperly installed or replaced by the user.
Page 15 Chapter 2 – Installation & Operation..........13 2.1 Connecting to PC ................. 13 2.2 Turn on EA500 ..................15 2.3 Scan Service ..................16 xiii © 2018 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
Page 16 EA500 User’s Manual Chapter 1 - Overview 1.1 Package Please make sure the following contents are in the EA500 gift box. If something is missing or damaged, please contact your unitech representative. The standard package contents  EA500 Terminal ...
Page 20 3.8 V, 3800mAh Polymer Li-ion battery built-in. Operation time 10-12 hours (depending on the specific environment) RTC battery Real time clock battery Regulatory Approvals © 2018 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
Page 21 -10°C to +50°C Operating temperature Storage temperature -20°C to +70°C 0°C to 40°C Charging Temperature Relative Humidity 5% ~ 95% (non-condensing) © 2018 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
Page 22 EA500 User’s Manual Drop test to Concrete 1.2m to concrete IP67 Environmental Sealing © 2018 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
Page 23 5470-5725MHz 12dBm WLAN 5GHz 5150-5350MHz 10dBm IEEE 802.11n 5470-5725MHz 10dBm 5150-5350MHz IEEE 802.11ac 5470-5725MHz Bluetooth Bluetooth 2400-2483.5MHz 10dBm RFID 13.56MHz -21.1dBuA@10m © 2018 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
Page 24 Charge the terminal using the USB charging cable or the cradle. Connect the type C USB cable to the USB port on EA500 and the other end of the USB cable please connect to AC power adapter into the electrical outlet on the USB plug.
Page 25 1.4.3 Checking the LED status 1.4.3.1 EA500 LED Status Status Description Solid Red light Charging Terminal Power No LED light Fully charged © 2018 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
Page 26 SD card are inserted into the slot. 、 To remove the cards, please press the thimble to jump out the card slot. © 2018 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
Page 27 EA500 User’s Manual 1.4.4.1 Connect WiFi or 4G on EA500 Please check the WiFi / 4G icon to see which internet access that EA500 uses. ￭ Through WiFi ￭ Through 4G ￭ Through both WiFi and 4G at the same time, WiFi takes priority over 4G .
Page 28 PC with USB cable provided. After device connected to your PC, the screen would display like this: © 2018 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
Page 29 You can insert a memory card on your device to use it as a removable disk. ■ If you do not insert a memory card, you will not see a removable disk on my computer. © 2018 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
Page 30 2.2 Turn on EA500 To turn on EA500 : hold power button until EA500 switches on. To turn off EA500 : hold power button during operation until the screen shows a menu, and then tab “power off”. To turn off screen: press the power button.
Page 31 EA500 User’s Manual 2.3 Scan Service There are two types of scan apps on EA500. Please see the instrctions below. 2.3.1 Scanner via engine Aim the barcode scan engine to the barcode and press one of two scan trigger buttons.
Page 32 One data at a time. Setting Camera Switch Flash Light (only for rear camera ) Scan Area © 2018 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
